BW1000A 3.8LPM 5 Gallon Bottled Water Dispensing System Pump For Refrigerator

Product Features

 1. Suitable for 5 Gallon Bottle Water

The BW1000 series bottled water dispesnging system is applicable for 5 gallon water bottle,  It is the first generation dispensing system, working as ideal fresh water dispenser pump for refrigerator, ice maker, espresso machine and counter top faucet (this item is not including a faucet).

 2. Automatic Dispensing System For Water Supply

The automatic design dispensing system provides 40 PSI strong suction and 1 GPM (3.78LPM) high flow. Dry pumping protection: Automatic shut off when water drains, restart when bottle refilled. Muffle working.

 3. Long Life Motor and Hiqu quality Diaphragm Pump

The system with Runs dry without damage,extending the life of the pump; the long life motor ensures years of reliable operation.

 4. Different Votalge Version and Standard AC Plug Option

The BW1000 Series water dispensing pump with 115V or 230V AC voltage; 50 or 60Hz；The standard UK, EU, US Plug will be providing according different market.

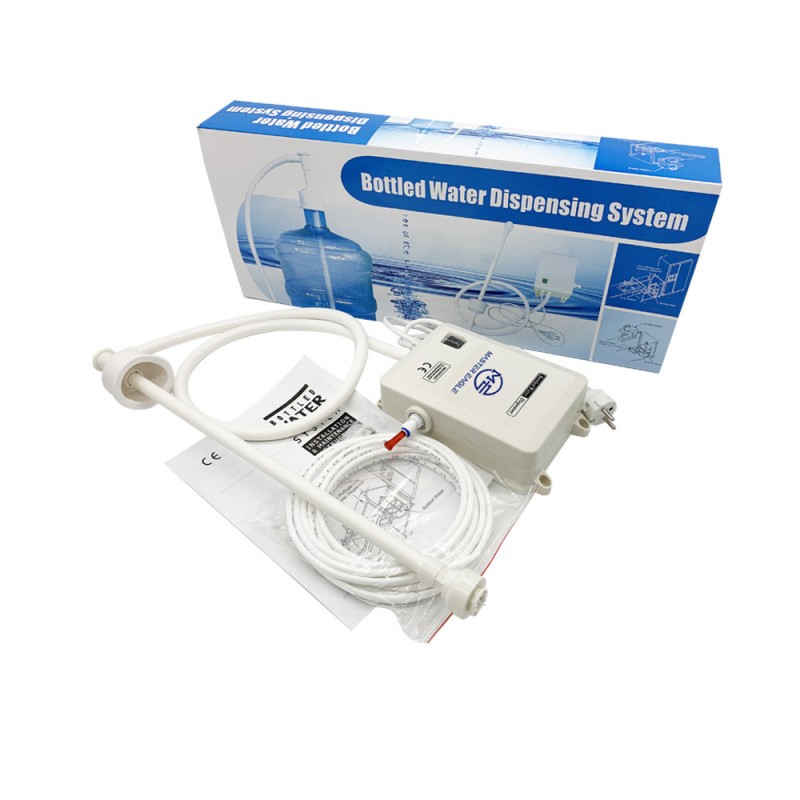

Products Photos:

Specification:

Application & Installation

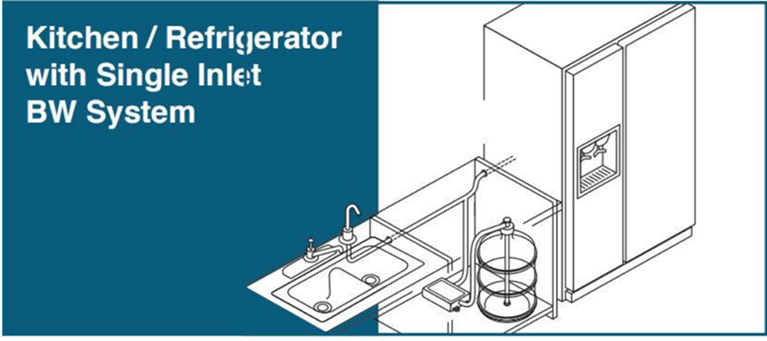

The BW1000 pump with quick disconnect ports allows for easy wand replacement in seconds. It can be widely Suitable for American refrigerators or other refrigerators with ice making function

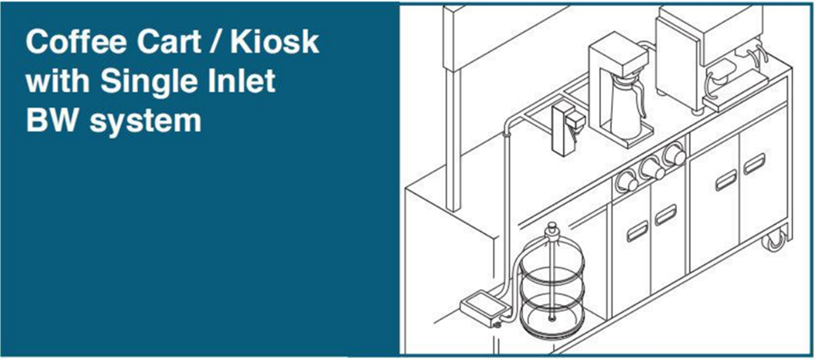

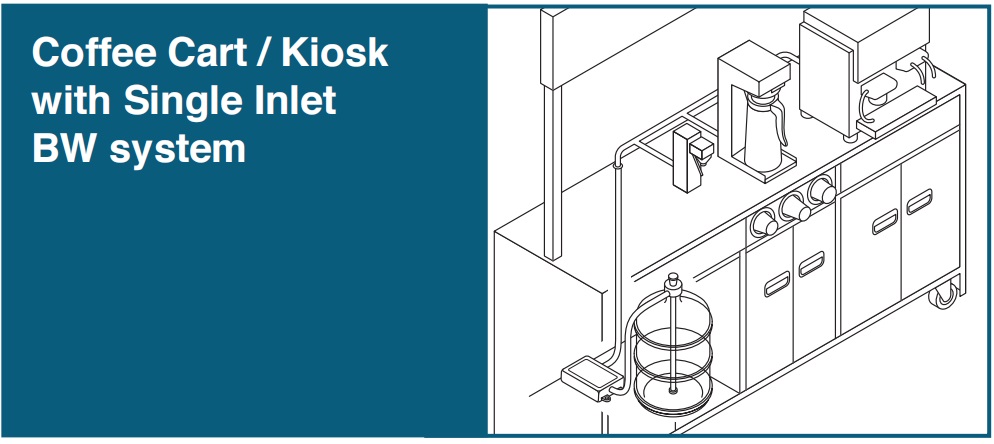

The BW1000 also suitable for the Coffee cart/Mahcine, Coffee dispenser/ Beverage System, Drinking Water supply. It can be easy installed under the working table, With the automatic floating sensor, to detects the water in the bucket in real time. Control the water supply by faucet or switch of beverage machine.

Notice:

1,Please fill water in the pump manually after long time unused to restart the pump. Please check when the pump not working.

2,If you've received a new pump with water in, it's normally because of pumping test instead of stain of use. As we tested every product before sales.

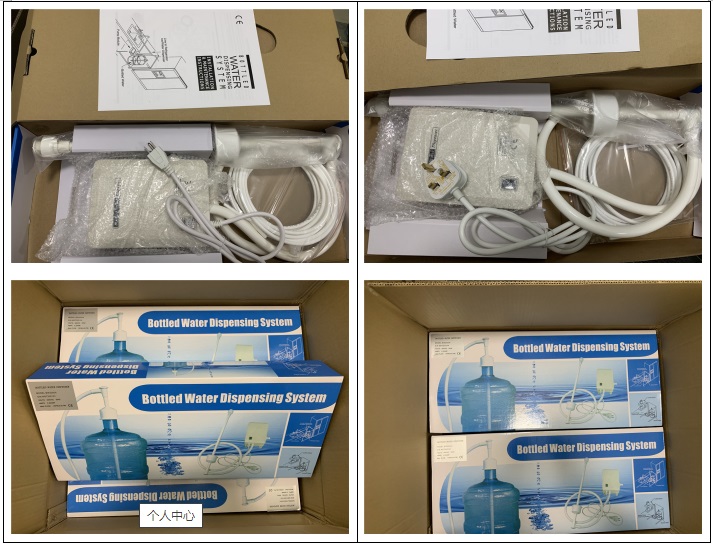

Unit Packing:

Our Certificates

 Frequently Asked Questions

Q1: Is the BW1000 water dispensing system easy to install?

A1: Yes, with quick disconnect ports allows for easy wand replacement in seconds

Q2: What is the quality warranty for this products?

A2: We provide 12M / 1 Year warranty, if you face the quality fault or defect, we will offer the free unit as compersation

Q3: Can I control the pump remotely?

A3: No at the monment; the device is control by switch on the products; or control by the water faucet/ beverage equipment;

Q4: What are the available working modes?

A4: It can be continue working or Intermittent working; deponds on the equipment usage.

Q5: How often does the pump need maintenance?

A5: Usually it is not need maintenance; but if the device do not use long time, please check if any air in the suction pipe; using one blow gun to clean the remain water/air inside of products.
