The Dual inlet bottled water dispensing system bw1020 is special design for 2 bottled water supply, which can be using for the commercial Coffee Cart / Kiosk. The BW system pump with large capacity water supply, it can reduce the time of change bottle.When it using for the American refrigerator, it can be constant supply the cold water or became the water supply of ice maker.
Model :
BW1020A (Dual Inlet)Voltage/Hz :
115V/ 60HZPressure :
40PSICustomized Service :
YES, Logo/User manual/ Unit boxMOQ Order :
10PCSLead Time :
15 DaysWarranty :
12 Months115V Dual Inlet Bottled Water Dispenser System BW1020
We are a professional bottled water pump dispensing system supplier, the BW series water dispenging pump is our main products with long time manufacturing experience, this bottled water system dispenser BW1020 pump is special design for 2 standard 5 gallon bottled water, working as idea fresh water dispenser pump for refrigerator, Espresso macine, or counter top faucet.
BW Series Model and Specifications As Follows:
|
Model |
Flow Rate |
Max Pressure |
Voltages |
Cycle |
Amp Draw |
Type of Plug |
|
BW1020 |
1.0GPM/3.8LPM |
40 PSI/2..8 bar |
115VAC |
60Hz |
0.5A |
3.5ft (1M) cord+ US Plug |
|
BW2022 |
1.0GPM/3.8LPM |
40 PSI/2..8 bar |
230VAC |
50Hz |
0.25A |
3.5ft (1M) cord+ AU Plug |
|
BW2023 |
1.0GPM/3.8LPM |
40 PSI/2..8 bar |
230VAC |
50Hz |
0.25A |
3.5ft (1M) cord+ UK Plug |
|
BW2024 |
1.0GPM/3.8LPM |
40 PSI/2..8 bar |
230VAC |
50Hz |
0.25A |
3.5ft (1M) cord+ EU Plug |
Product Features
1. Suitable for 2* 5 Gallon Standard Bottled Water
The BW1020 series bottled water dispesnging system is applicable for2* 5 gallon water bottle, our electric water dispenser pump provides fresh water supply for ice maker refridgerator, coffee machine and faucet. 15min easy installation under sink or in cabinet and one-button control facilitating your daily use.
2. High Efficiency Water Supply
The BW water gallon dispenser provides a pressure of 2.8bar (40 PSI) strong suction and 1 GPM inlet flow. 1000H continuous working time. Assembled with an inlet float valve and outlet overpressure protection, this product will automatic shut off to extend the life of motor.
3. High Quality Food-Grade Material
66in inlet pipe (23in hard pipe in 5gal jug & 43in hose connected to the pump) & 20ft outlet hose.With food-grade PE material of the whole machine, 5 gallon water pump provides fresh water for your daily using.
Notice:
1.Please fill water in the pump manually after long time unuse to restart the pump. Please check when the pump not working.
2.If you've received a new pump with water in, it's normally because of pumping test instead of stain of use. We doing test for every product before sales.

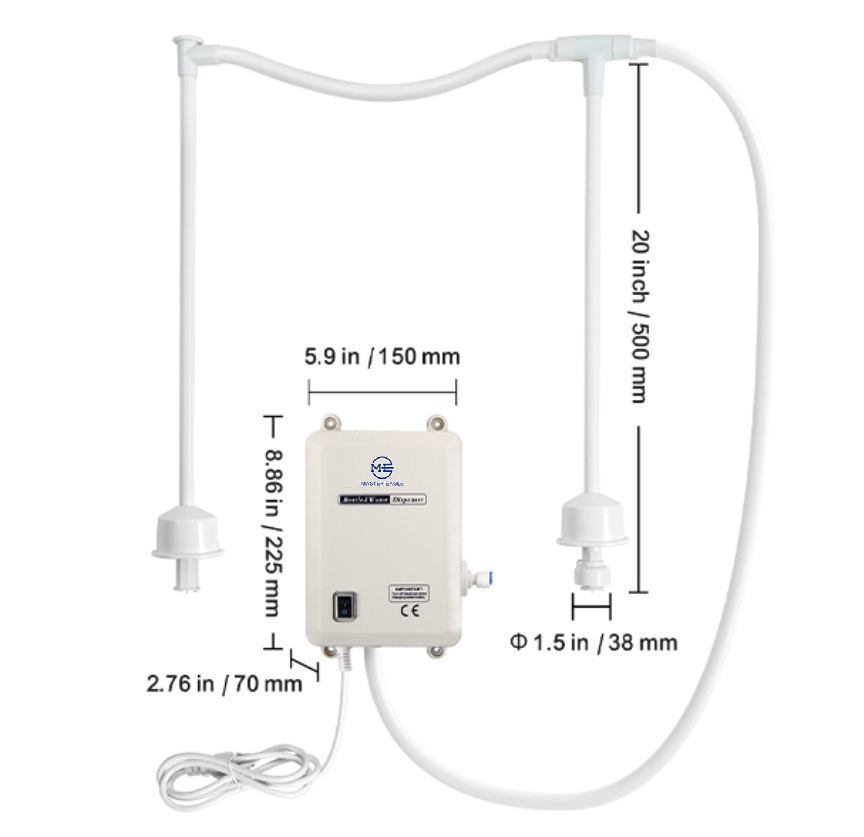

Dimension：

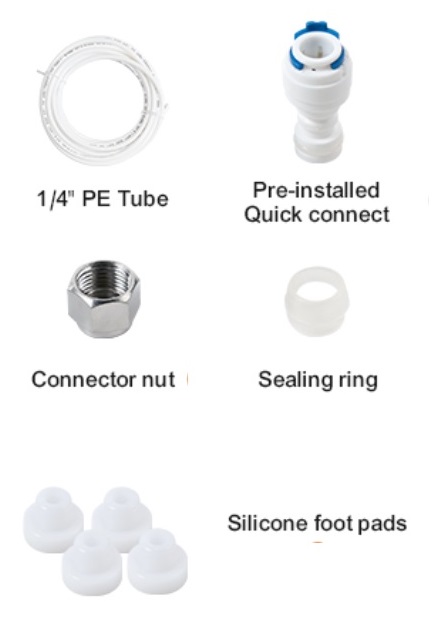

Accessories:
Each unit bottled water dispensing system we provide; the user could use the following accessories assembly the water dispensing pump in mintues.
1 x 1/4" PE tube *600MM
1 x Pre-installed Quick connect
1 x Connector nut
1 x Sealing ring
4 x Silicone foot pads

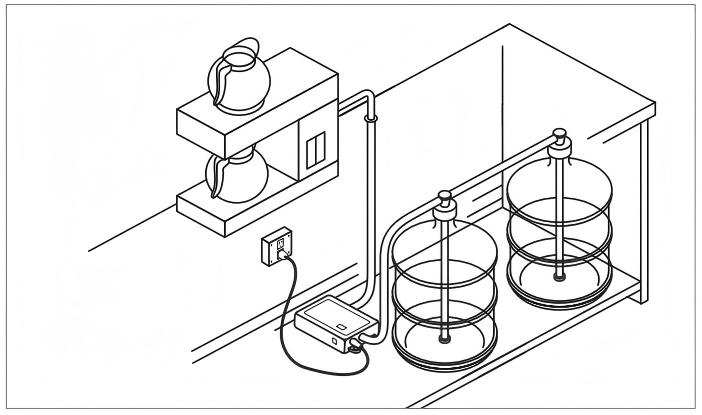

Applications:

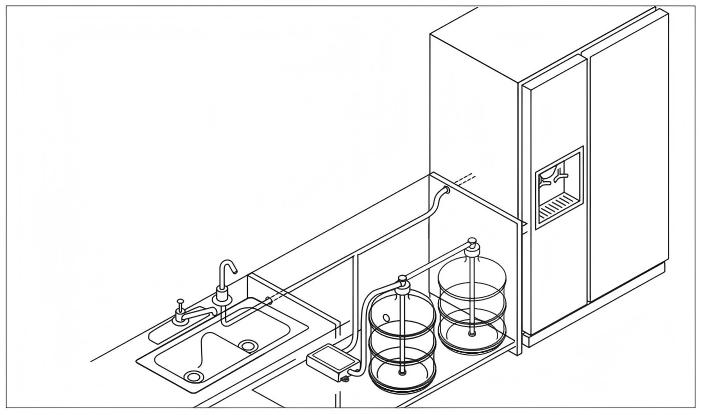

The BW1020 bottled water pump with quick disconnect ports allows for easy wand replacement in seconds. It can be widely Suitable for American refrigerators or other refrigerators with ice making function
The bottled water system is designed to make people's lives more convenient. Once the bottled is empty, the pump will automatically stop working,because the floating sensor design. When the water source is restored, the pump will automatically restart. This can well avoid the damage of the pump caused by dry running. Applicable to a variety of non-water source places: refrigerator ice water, beverage machine water supply, coffee machine water supply, household daily water supply.
We tested every product before sales. All products obtained CE certification. Welcome to talk with us for more information.
