The new 5000 Series Bottled Water System is designed to work with coffee/tea makers, refrigerator ice and water dispensers, espresso carts and portable sinks or any use requiring portable potable water.
Designed for convenience, the pump shuts off when the water source is depleted. When water is restored, the pump automatically restarts. A sealed vacuum keeps water fresh and a built-in check valve prevents back flow. The pump operates quietly and automatically turns on and off when the faucet is opened and closed. The system is available in 115V and 230V applications.
Model :
BW5000AVoltage/Hz :
110- 240V AC; 50/60HZPressure :
40PSICustomized Service :
YES, Logo/User manual/ Unit boxMOQ Order :
50PCSLead Time :
20 DaysWarranty :
12 MonthsMaster Eagle BW5000 series bottled water dispensing system; which is the newest design, it is applicable for 5 gallon water bottle, working as ideal fresh water dispenser pump for refrigerator, ice maker, espresso machine and counter top faucet (this item is not including a faucet).
Master Eagle as a professional manufacturer in home water pump field, we offers pre-sale and after sale services and 12 months warranty. Please contact us if you have any question.
Special Features:
1, Illuminated On/Off Switch: Provides clear visibility in dark cabinets or hard to reach places
2, Long Life Motor: Ensures years of reliable operation.
3, High quality Diaphragm Pump: Runs dry without damage,extending the life of the pump.
4, Quick Disconnect Ports Allows for easy wand replacement in seconds.
5, Quiet Operation Equipped with noise dampening rubber feet to minimize noise pollution.
6, Thermal Protection Prevents overheating, protecting the pump and control box from damage
Specification:
|
Model |
BW5000A (Single inlet) |
|
Flow Rate |
0.6 GPM (2.3 LPM) |
|
Max Pressure |
40 PSI (2.76 bar) |
|
Voltages |
110-240V VAC |
|
Cycle |
60Hz for AC Voltage |
|
Amp Draw |
0.4 Amp max @ 115V; 0.2Amp max @ 230V; |
|
Weight |
4.5 lbs |
|
Dimensions |
2.9"H x 5.1"W x 7.6"D |
|
Type of Plug |
US / UK/ EU Plug |
Dimension:
Usage:

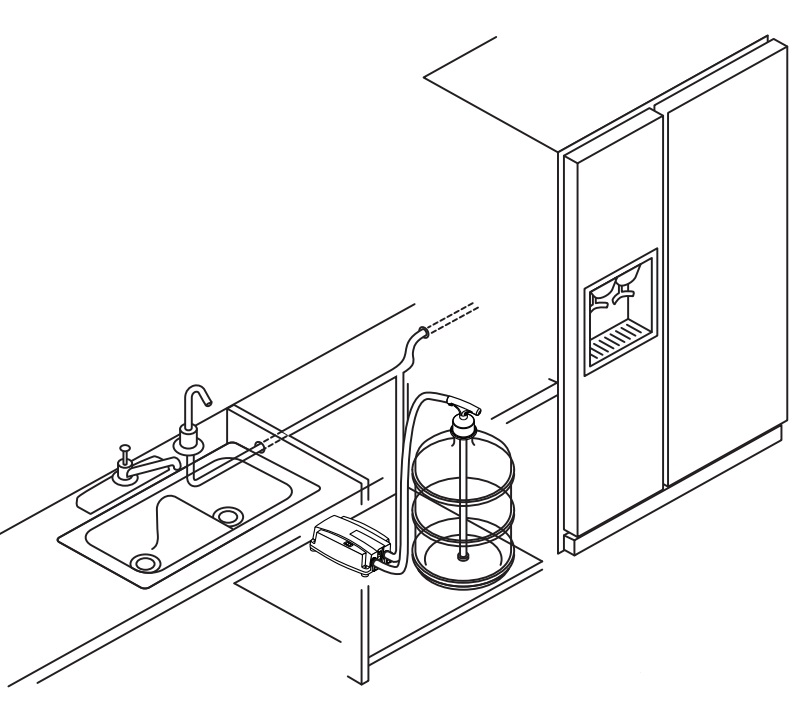

1,For refrigerator
Select a cabinet large enough to accommodate the 5 gallon (19L) bottle and suction wand assembly. Place the pump module on the for of the cabinet with on/off switch and suction tube facing out toward the cabinet doors.
Position as close as possible to a grounded electrical outlet and place the 5 gallon bottle close to the pump module without kinking the suction hose.

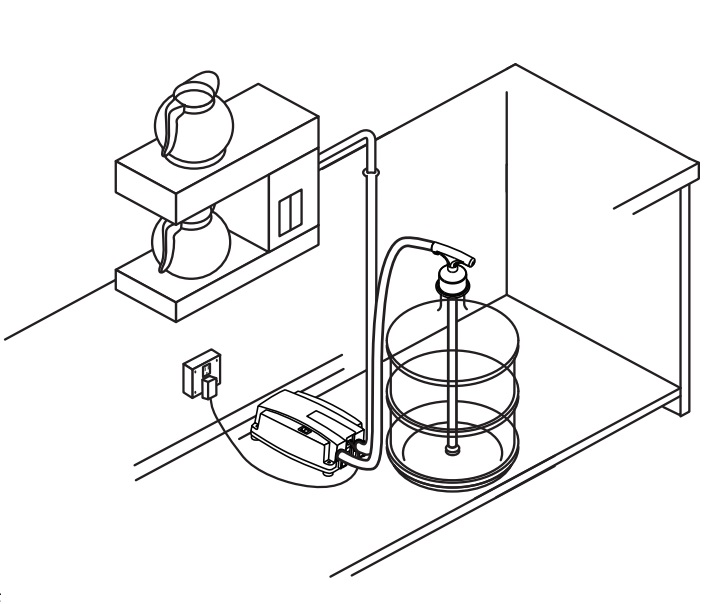

2, For coffee machine
The Bottled Water Dispensing System may also be placed in a pantry, closet, cellar or other location where a grounded electrical outlet is available.
NOTICE:
1,Please fill water in the pump manually after long time unused to restart the pump. Please check when the pump not working.
2,If you've received a new pump with water in, it's normally because of pumping test instead of stain of use. As we tested every product before sales.

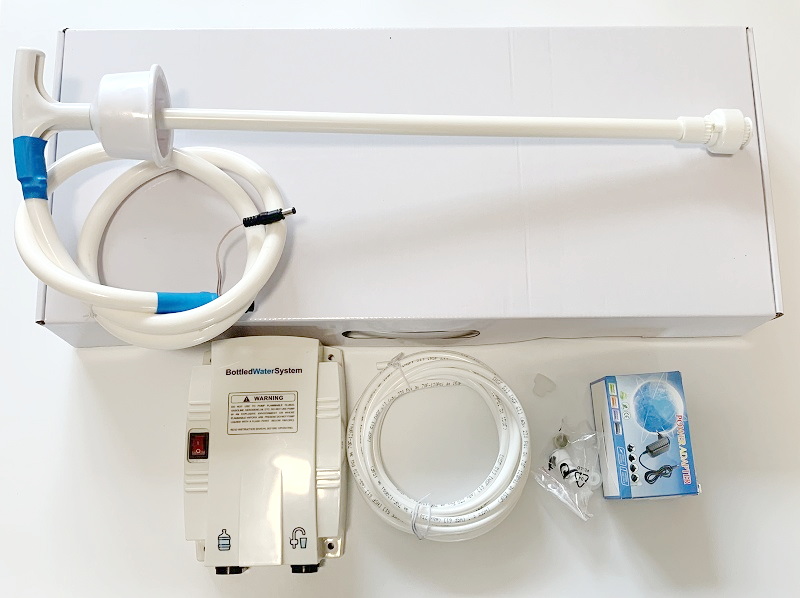

Our packing:
