·Die cast aluminum housing
·PA66 electrical covers and support base
·Available with 1.5m power cord
·Heating element made of incoloy 800H
·Integrated mounting holes
Circulating Pump
·Circulation centrifugal pump
·Flow rate:2M/h
·Lit head:3m
H3 Water pump forced circulating coolant heaters are installed at the lowest point in a system, the coolant can be warmed up quickly and delivered to the top of engine by the thermosphere, so that to reduce time to reach operating temperatures and full-load acceptance; it will be great using for power generation, diesel diesel gensets, Gas gensets, Industrial engine , truck etc.
Volts :
230/115VHz :
50/60HzWatt :
2000,2500, 3000, 4000WRegulating Thermostart :
35-50℃(95-122°F)MOQ Order :
50PCSInlet/Outlet Diameter :
3/4“(19mm)Topstart H3 Water Pump Forced Circulation Heater for Power Generation

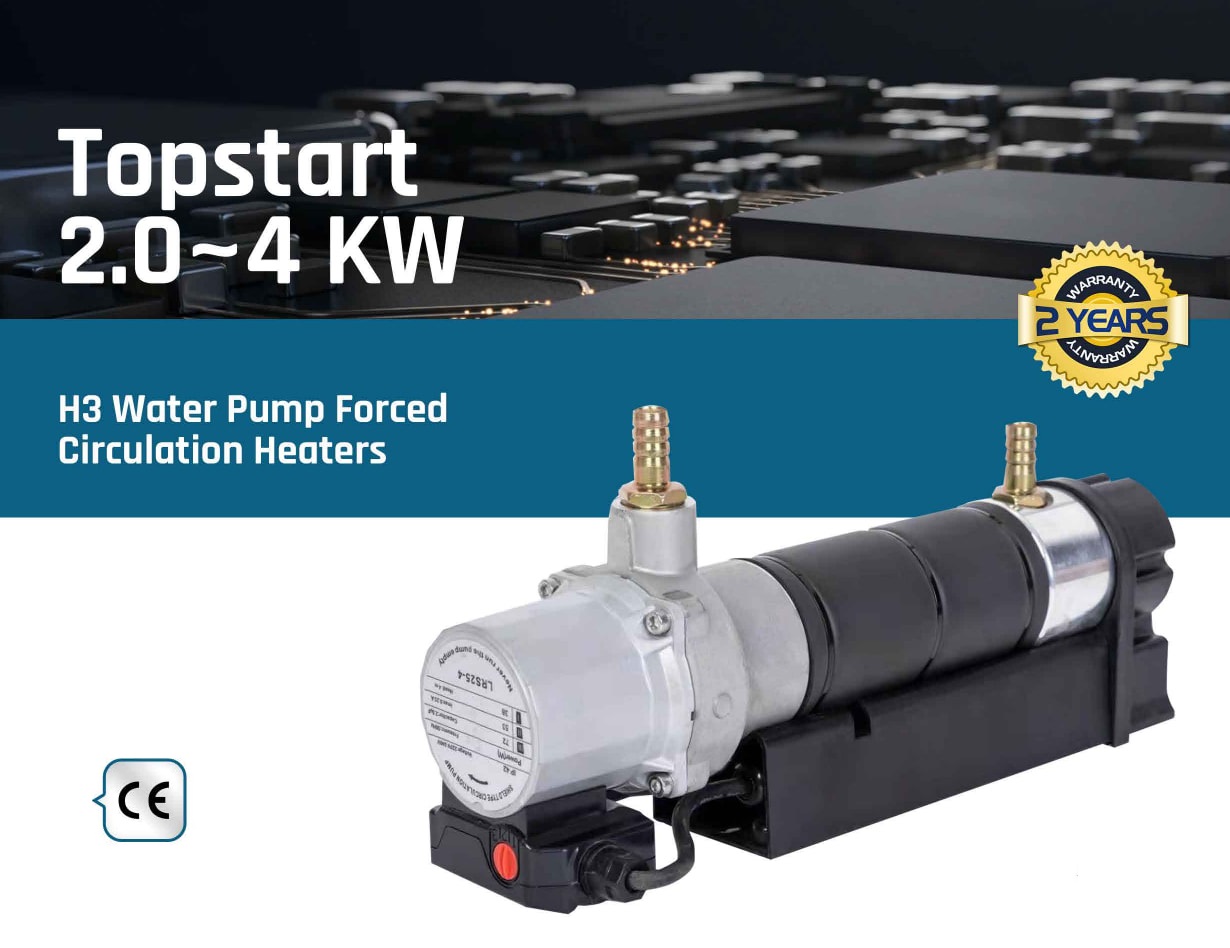

The Topstart H3 Series Water Pump Forced Circulation Heater is a compact heating system with circulation pump which heats the coolant liquid of a motor. This system is particularly made for generating sets, on-road engines, marine engines and all types of vehicles located inside or outside (protected place only). The output could be from 2; 2.5, 3, 4.0 KW with customized by 230 or 115V AC.

Products Features:
Technical Data:
|
Model |
Hz |
Volts |
Phase |
Watt |
Regulating Thermostat |
Safety Thermostat |
Cord Length |
Plug Type |
Inlet/OutLet Diameter |
|
QZ 2000R |
50/60 |
230/115 |
1 |
2000 |
35-50℃ |
110℃ |
1.5M |
Blunt 3 Wire |
3/4"(19mm) |
|
QZ 2500R |
50/60 |
230/115 |
1 |
2500 |
35-50℃ |
110℃ |
1.5M |
Blunt 3 Wire |
3/4"(19mm) |
|
QZ 3000R |
50/60 |
230/115 |
1 |
3000 |
35-50℃ |
110℃ |
1.5M |
Blunt 3 Wire |
3/4"(19mm) |
|
QZ 4000R |
50/60 |
230/115 |
1 |
4000 |
35-50℃ |
110℃ |
1.5M |
Blunt 3 Wire |
3/4"(19mm) |
Benefits:
·The Topstart Water pump forced circulation heater provides engine warming for quick clean start
·Reduce time to reach operating temperatures
·Even distribution of heat to eliminate cold spots
·Reduce engine wear stress on hoses & fittings
Applications:
·Diesel Gensets
·Gas Gensets
.Industrial Engine Applications
.Tuck or other vehicles

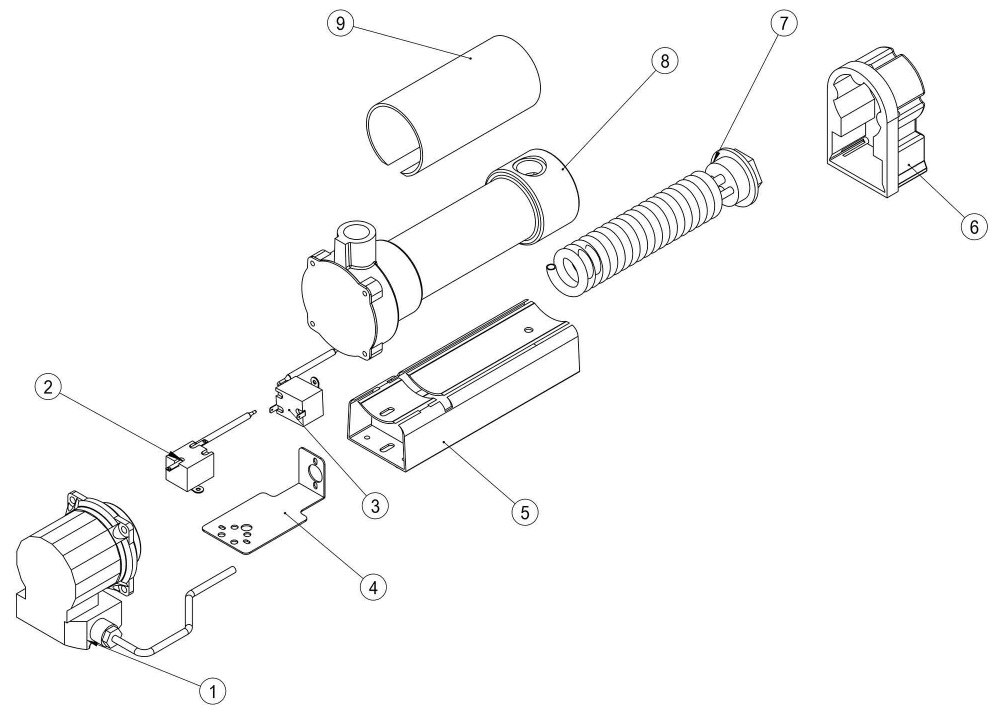

Heater Assembly:

1. Circulating water pump
2. Overheat safety thermostat
3. Regulating thermostat
4. Fixingbracket
5. Support base
6. Electric box
7. Heating element
8. Casting aluminium tank
9. Thermal insulation material
Each Theromstart will be testing before shipment, and with quality warranty 2 years.

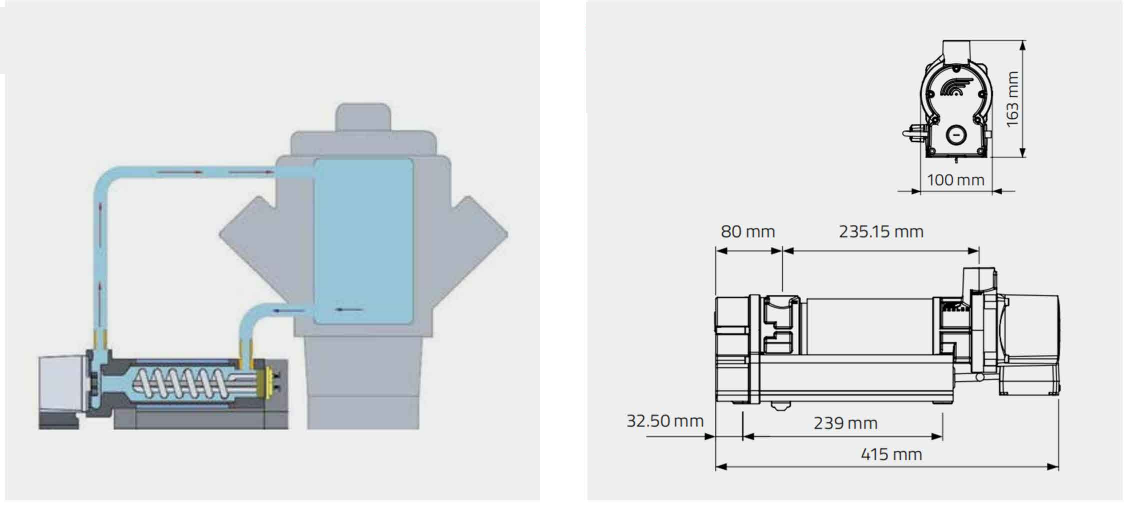

Installation And Dimension:

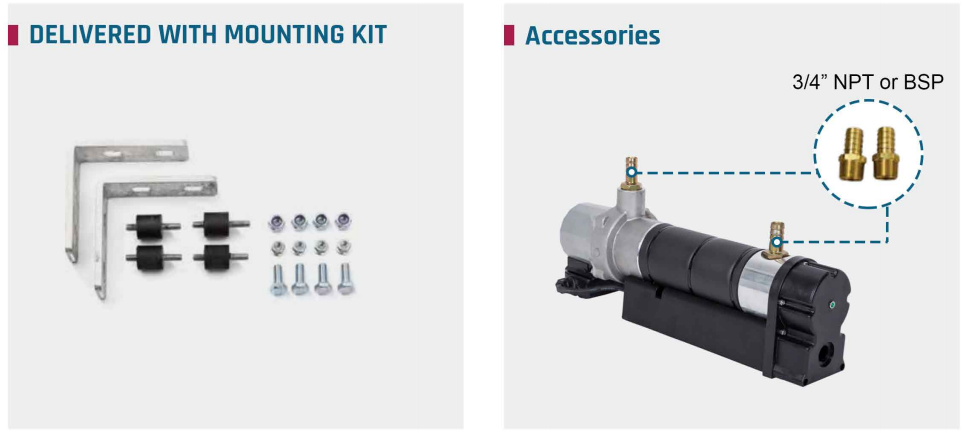

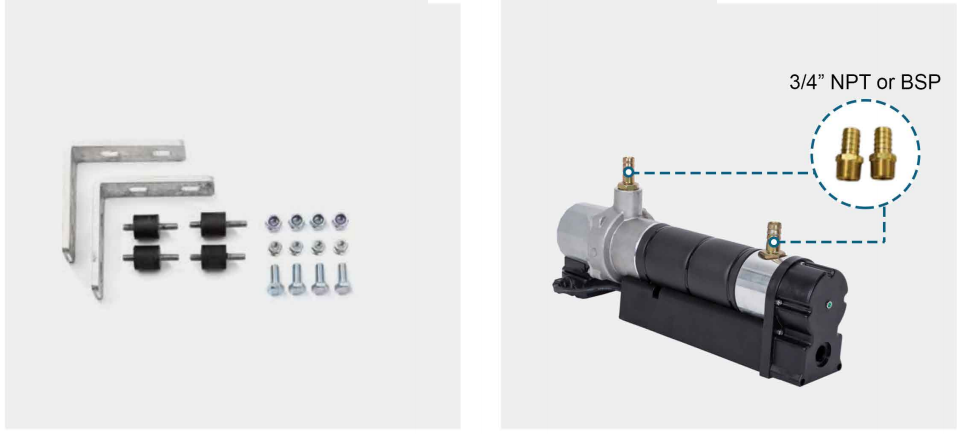

Products With Mounting Kit and Accessories:
Each pump will be with one set of mounting kit and 3/4" NPT or BSP outlet
