es·Regulating Thermostat
35-50℃(95-122°F)
24-40℃(65-104°F)
·Safety thermostat 110℃(230F) for overheat protection
·Cast aluminum housing
·Robust aluminum body
·Compact design
·1.5m power cord
·Integrated mounting holes

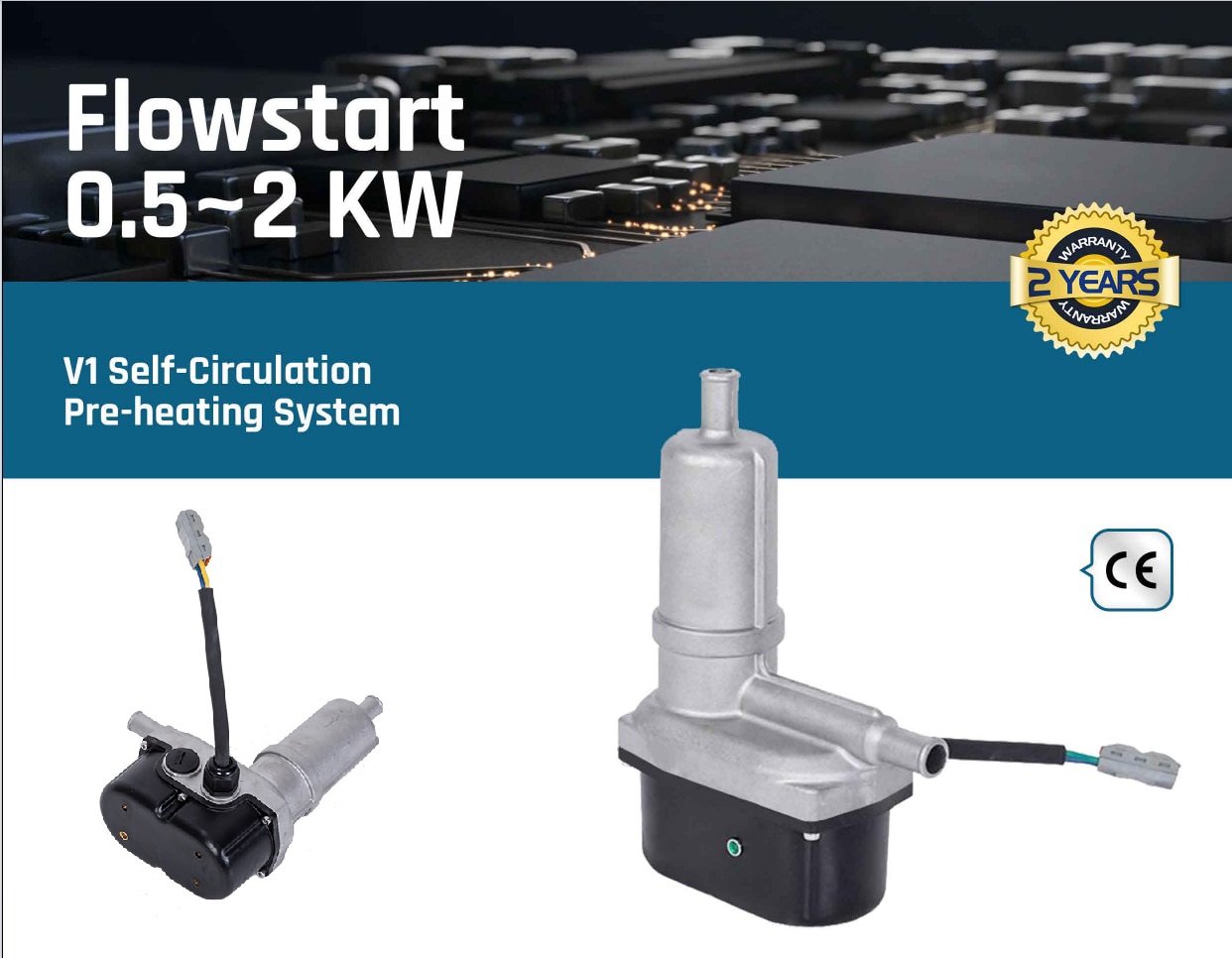

The V1 series Flowstart self-circulation pre-heating system from 500W to 2000W, the heater ensuring of the coolant to the desired temperature. It is a practical and essential accessory for generator sets, delivering even in cold environments. With 230v or 115V Ac power, the coolant preheater provides fast and efficient for your engine, offering great convenience.
Volts :
230/115VHz :
50/60HzWatt :
500,1000,1500,2000WRegulating Thermostart :
35-50℃MOQ Order :
50PCSInlet/Outlet Diameter :
5/8"(16mm)Custom Flowstart V1 Electric Coolant Heater Self-Circulation
A passive heating system based on natural convection that circulates coolant without a mechanical pump.Thermosiphon heaters are installed at the lowest point in a system, warm the coolant and thermal convection circulates the coolant within the system.
TThe V1 self-circulation pre-heating system is a self-circulating coolant heaters ensure dependable engine starts all year long. By circulating warmed coolant though the engine, it insures fast starts for critical applications,quick acceptance of loads, reduces fuel consumption,emissions and engine wear.
Products Features:
·Regulating Thermostat
35-50℃(95-122°F)
24-40℃(65-104°F)
·Safety thermostat 110℃(230F) for overheat protection
·Cast aluminum housing
·Robust aluminum body
·Compact design
·1.5m power cord
·Integrated mounting holes
·Engine starts at full load
·Reduction of fuel consumption
·Reduces engine wear & stress on hoses &fittings
·Lower emissions during startup
APPLICATIONS
·Diesel Gensets
·Gas Gensets
. Industrial Engine Applications
Technical Data:
|
Model |
Hz |
Volts(V) |
Phase |
Watt |
Regulating Thermostat |
Safety Thermostat |
Cord Length |
Plug Type |
Inlet/OutLet Diameter |
|
LS 500R |
50/60 |
230/115 |
1 |
500 |
35-50℃ |
110℃ |
1.5M |
Blunt 3 Wire |
5/8"(16mm) |
|
LS 1000R |
50/60 |
230/115 |
1 |
1000 |
35-50℃ |
110℃ |
1.5M |
Blunt 3 Wire |
5/8"(16mm) |
|
LS 1500R |
50/60 |
230/115 |
1 |
1500 |
35-50℃ |
110℃ |
1.5M |
Blunt 3 Wire |
5/8"(16mm) |
|
LS 2000R |
50/60 |
230/115 |
1 |
2000 |
35-50℃ |
110℃ |
1.5M |
Blunt 3 Wire |
5/8"(16mm) |

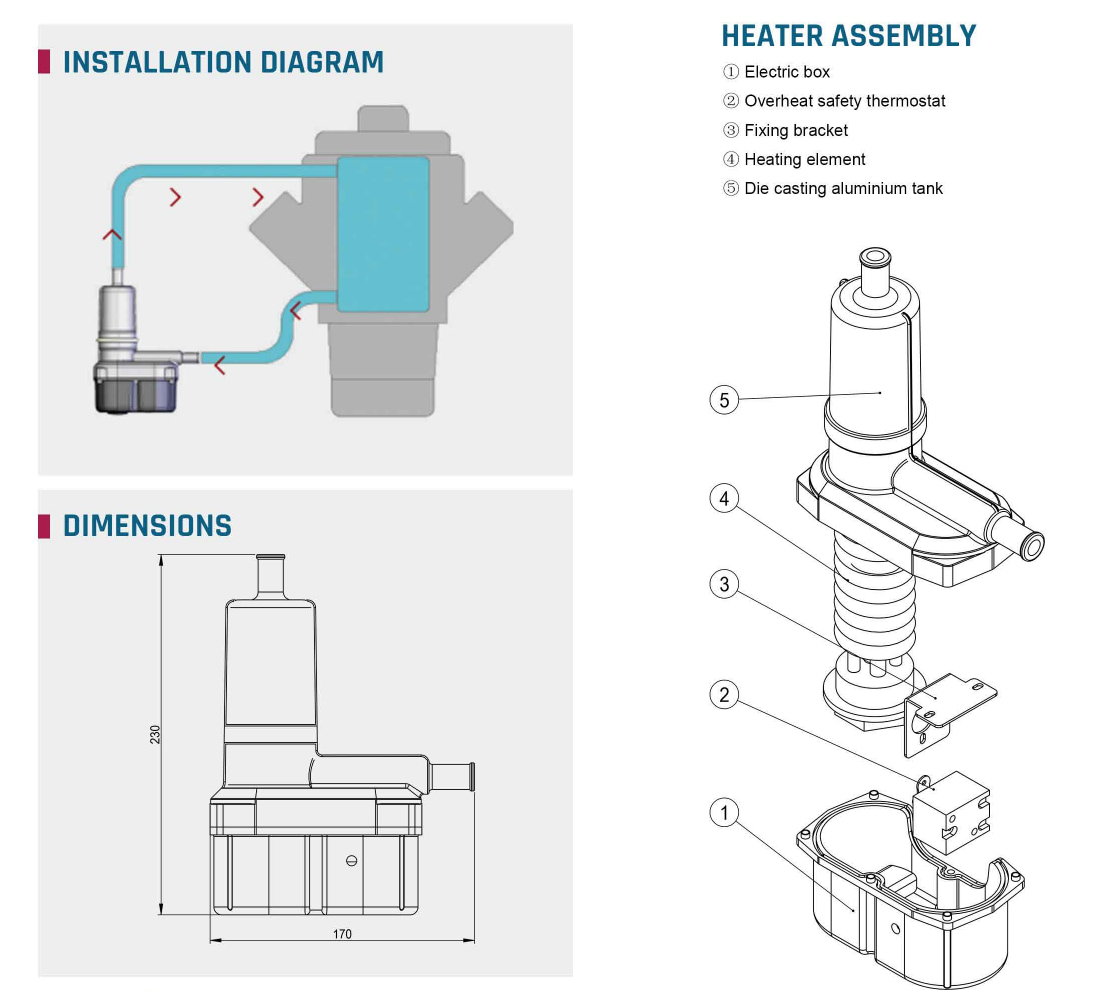

INSTALLATION AND DIMENSION:
The Flowstart coolant heater pump is installed under the engine
