es·Cast aluminum housing
·PA66 electrical covers and support base
·Available with 1.5m power cord
·Heating element made of incoloy 800H
·Integrated mounting holes
·Circulation centrifugal pump
·Flow rate:2M/h
·Lit head:3m

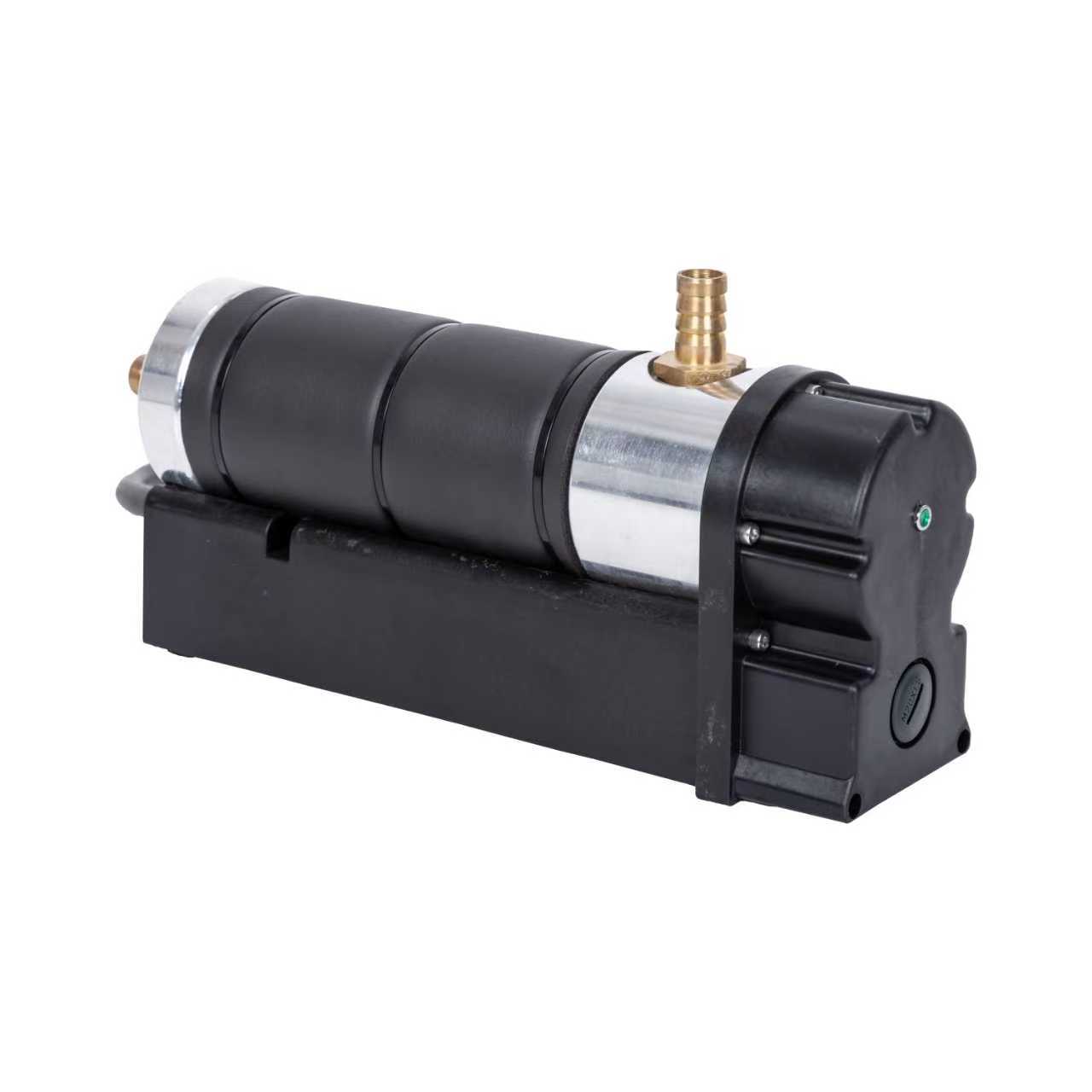

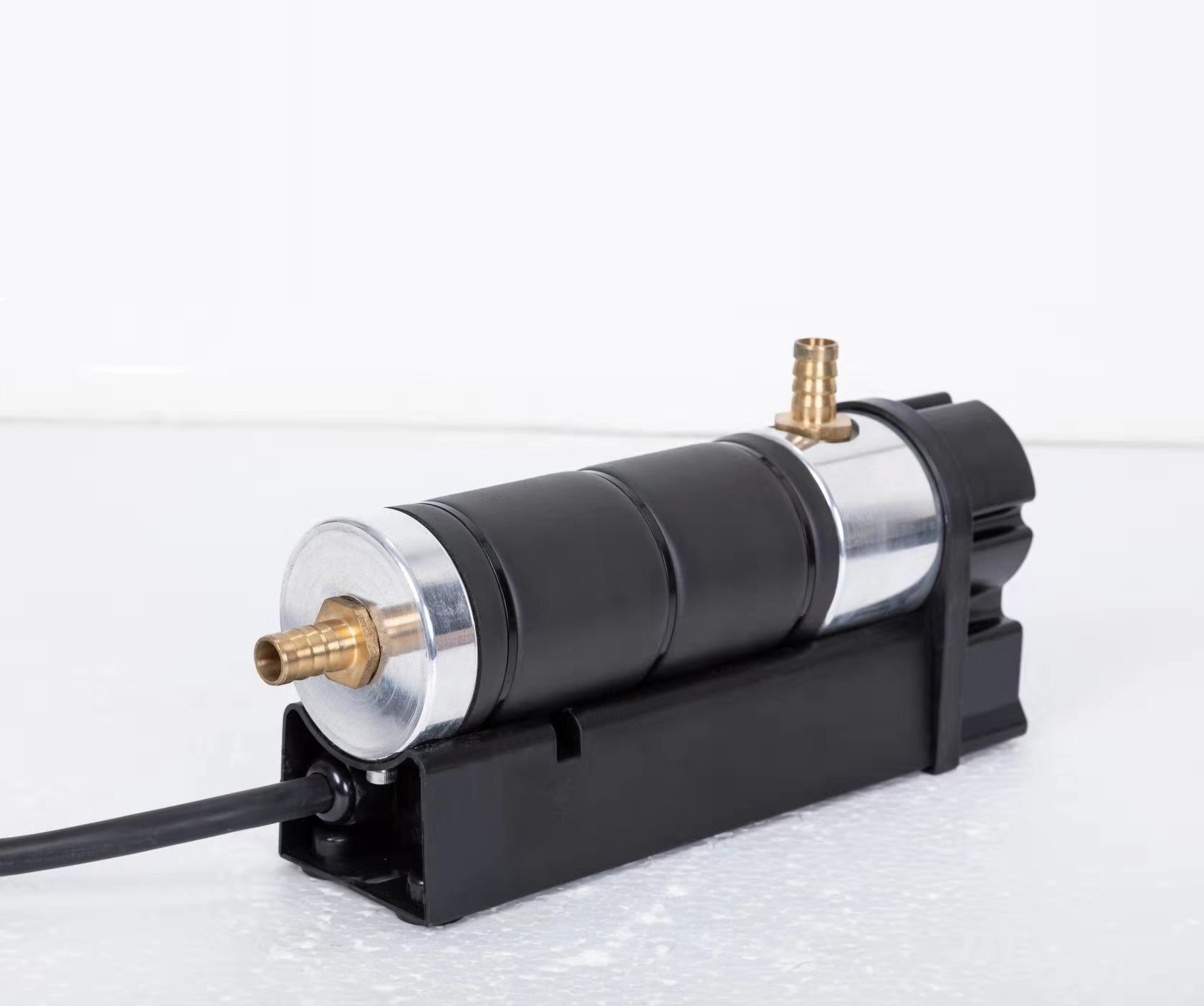

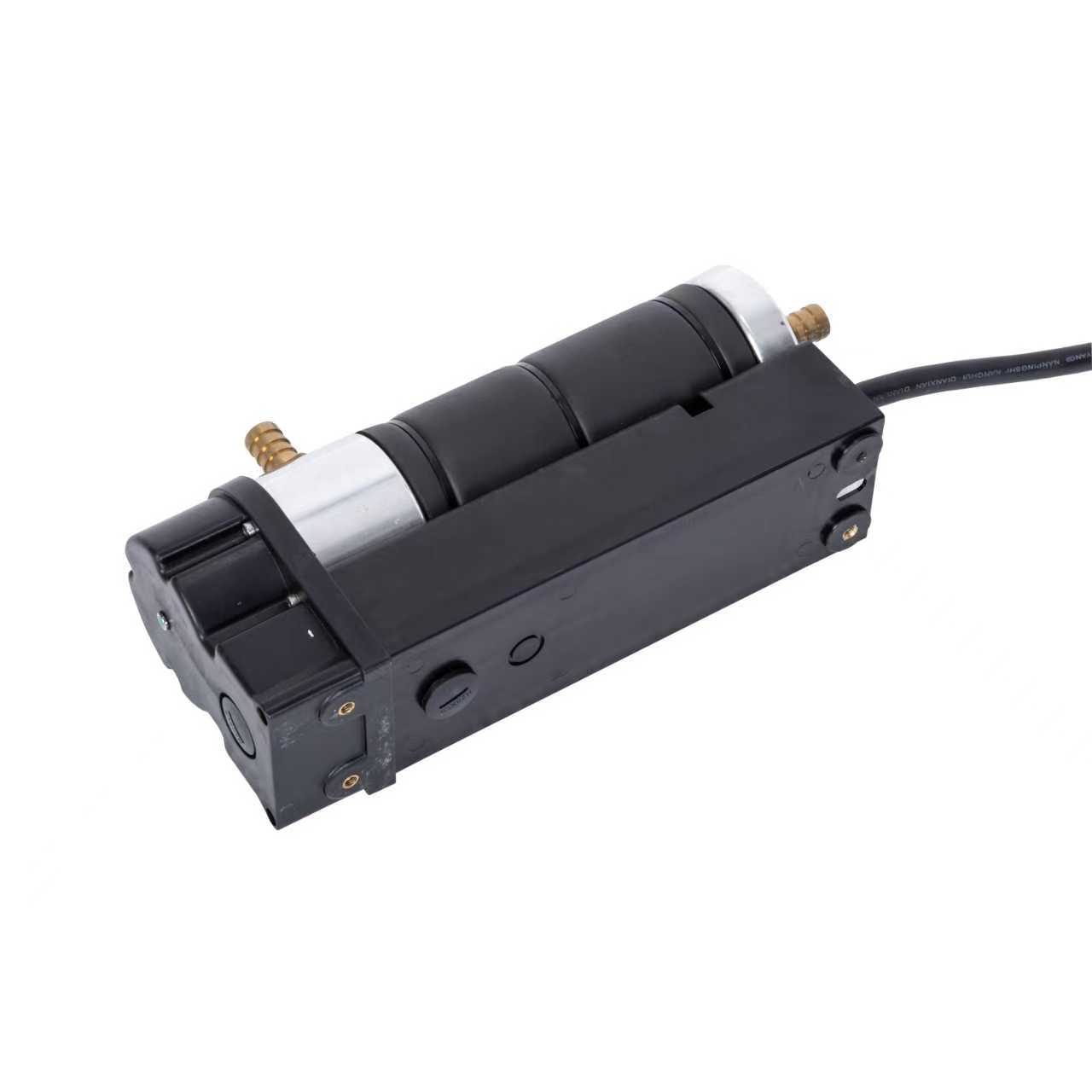

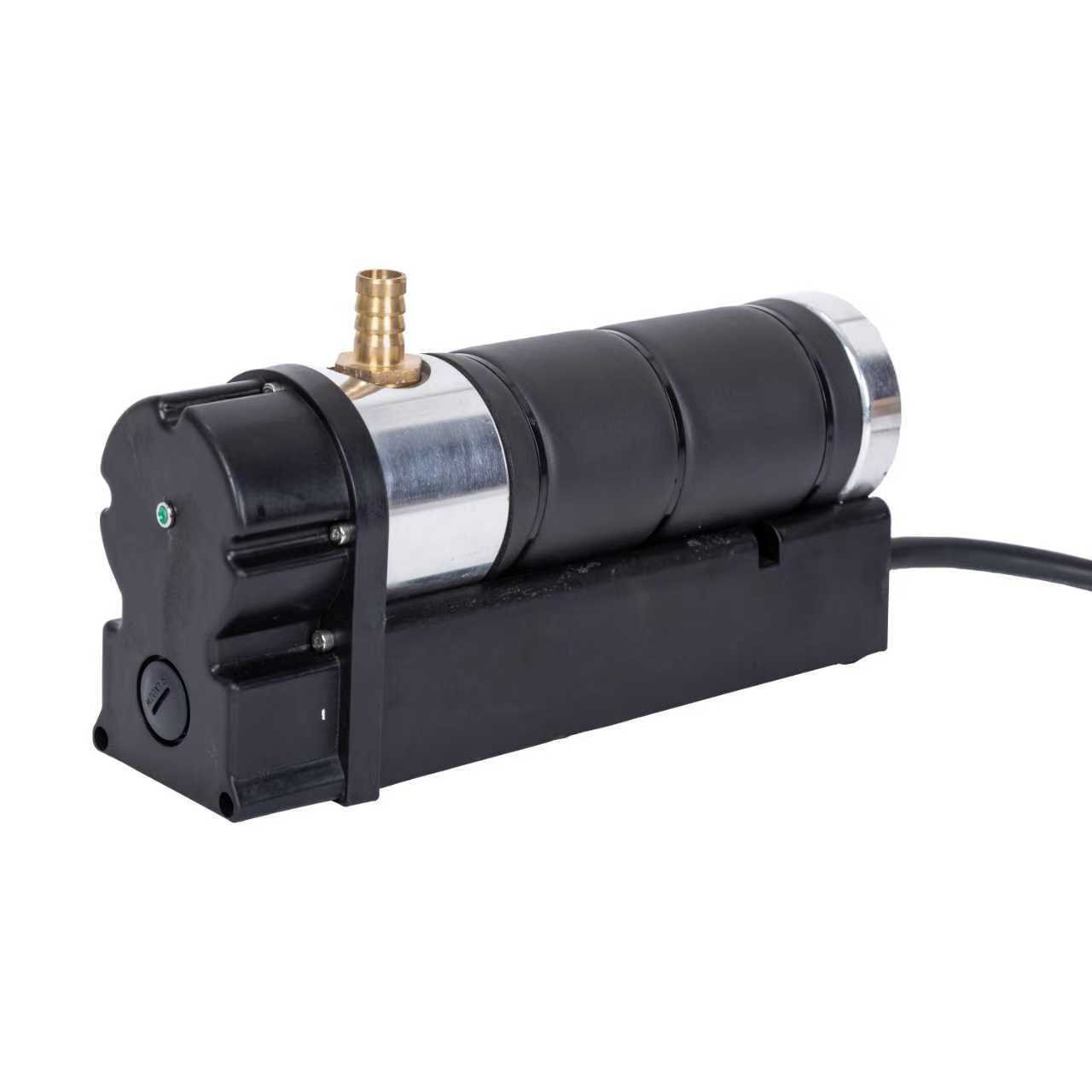

The Thermostart H2 Self-Circulation Engine Heater Without Pump is an electric coolant heater or circulation heater for various water-cooled engines. When the coolant heating, it will be pushed to the top of the engine by a Thermosiphon. Therefore, no matter what ambient temperature,the engine can easily achieve full power start and effectively avoid cold start mechanical damage. It can be widely using for the Diesel gensets, Gas gensets or Large equipment with diesel engine.
Volts :
230/115VHz :
50/60HzWatt :
2000,2500,3000,4000WRegulating Thermostart :
35-50℃(95-122°F)MOQ Order :
50PCSInlet/Outlet Diameter :
3/4"(19mm)Thermostart H2 Self-Circulation Engine Heater Without Pump
ThermoStart H2 Self-Circulation Engine Heater Without Pump is an electric coolant preheater without water pump, suitable for all types of water-cooled engines.The coolant is heated and then run through the engine by a thermosiphon process to preheat the engine. This ensures an easy full power start, regardless of the ambient temperature, and avoids mechanical damage in cold start. ThermoStart preheaters are suited for all industrial and marine applications, both stationary and mobile.These heaters are very compact, maintenance free and easy-to-install. The system has the following advantages: fuel savings, decreasing pollution, reduced engine wear, no more difficult cold starts, vehicle cab heater instantly operational.
Products Features:
·Cast aluminum housing
·PA66 electrical covers and support base
·Available with 1.5m power cord
·Heating element made of incoloy 800H
·Integrated mounting holes
·Circulation centrifugal pump
·Flow rate:2M/h
·Lit head:3m
· 2.0 to 4KW
·120,230,240V ·50 or 60Hz
Safety Thermostat
.110℃ Safety thermostat with
. manual reset rated at 25A to protect
. the heating element when coolant
Regulating Thermostat
.35-50°C(95-122°F)
.20-40°C(65-104°F)
Technical Data:
|
Model |
Hz |
Volts |
Phase |
Watt |
Regulating Thermostat |
Safety Thermostat |
Cord Length |
Plug Type |
Inlet/OutLet Diameter |
|
WS 2000R |
50/60 |
230/115 |
1 |
2000 |
35-50℃ |
110℃ |
1.5M |
Blunt 3 Wire |
3/4"(19mm) |
|
WS 2500R |
50/60 |
230/115 |
1 |
2500 |
35-50℃ |
110℃ |
1.5M |
Blunt 3 Wire |
3/4"(19mm) |
|
WS 3000R |
50/60 |
230/115 |
1 |
3000 |
35-50℃ |
110℃ |
1.5M |
Blunt 3 Wire |
3/4"(19mm) |
|
WS 4000R |
50/60 |
230/115 |
1 |
4000 |
35-50℃ |
110℃ |
1.5M |
Blunt 3 Wire |
3/4"(19mm) |
·The Self-circulating coolant heater make Engine starts at full load
·Reduction of fuel consumption for engine
·Reduces engine wear & stress on hoses & fittings
·Lower emissions during startup
Applications:
·Diesel Gensets
·Gas Gensets
.Industrial Engine Applications
.Tuck or other vehicles
Heater Assembly:
1. Circulating water pump
2. Overheat safety thermostat
3. Regulating thermostat
4. Fixingbracket
5. Support base
6. Electric box
7. Heating element
8. Casting aluminium tank
9. Thermal insulation material
-Each Theromstart will be testing before shipment, and with quality warranty 2 years.

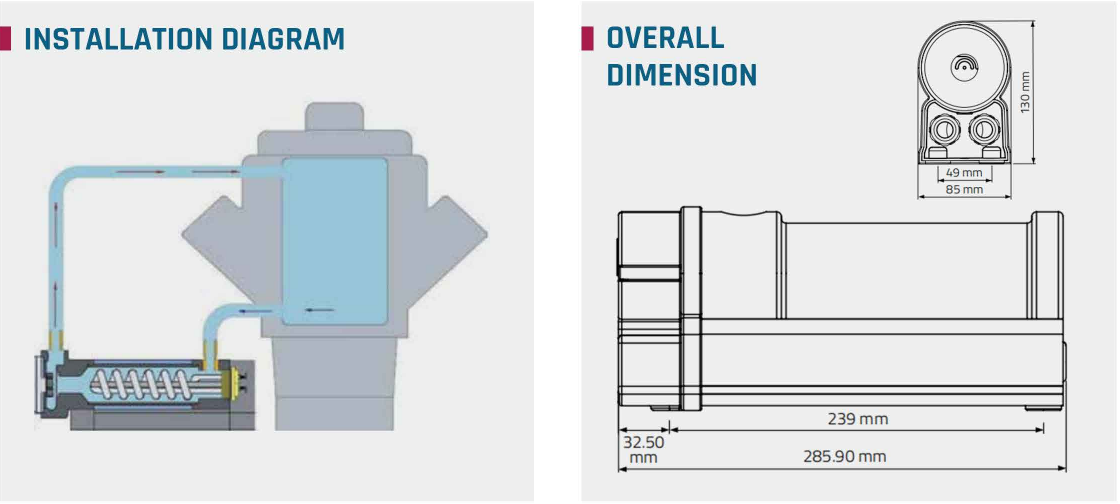

Dimension & Installatioin:

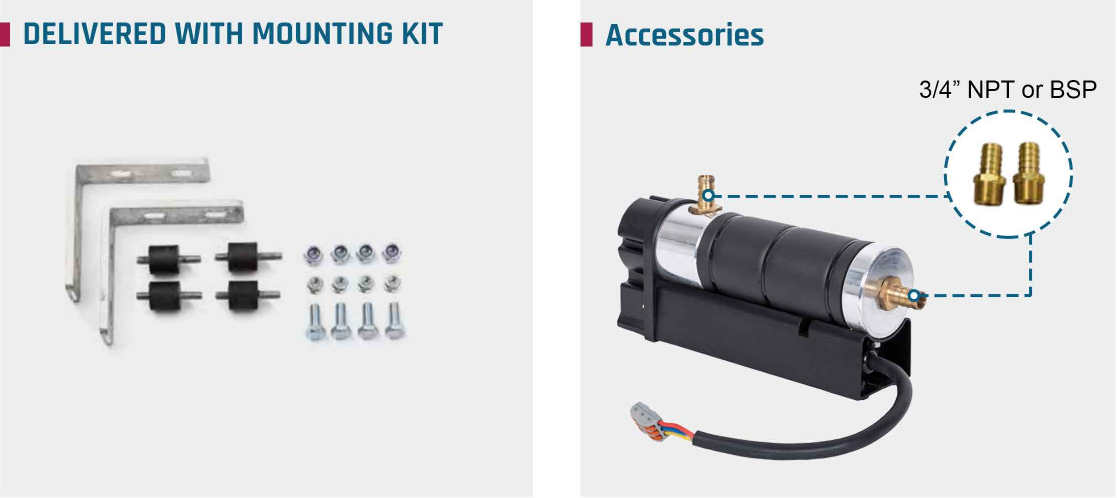

Products With Mounting Kit and Accessories
The outlet size could be customized byy NPT or BSP standard.
