3SSP 3Inch 600-1500W Brushless DC Solar Deep Well Pump With Plastic Impeller

Application:

Agricultural irrigation in water-scarce regions

Livestock watering on sprawling ranches

Household supply in off-grid mountain communities

Future-Ready, Scalable, and Sustainable

Product Features：

1.The newest design with DC brushless motor, high efficiency, could work with solar panel directly.

2.Simply connect the photovoltaic panel to the photovoltaic inverter without setting any parameters, and the photovoltaic water pump can automatically start after being powered on.

3.Ultra high solar power tracking efficiency,up to 99%

4.Can connect multiple types of liquid level sensors,effectively achieving functions such as water source shortage protection and water tank full shutdown.

5. Various Protection functions: Over temperature, over current, over voltage,anti-freezing, and water shortage protection measures, the product is truly intelligent,

6.Equipped with the most advanced variable frequency speed regulation technology and harmonic processing  design.

It effectively improves the efficiency of electricity use,reduces high-frequency noise caused by harmonics, and makes the product quieter and more energy-efficient.

How to use it?

1, First confirm the flow rate and head distance you want

2, Compare with our pump's specification, choose the mostly suitable model

3, Check the output and voltage of dc pump, calculate the solar power should be 1.5 times than pump

4, Connected our pump with inverter and panel.

With top quality spare parts:

Brass / Stainless steel outlet

Brass / Stainless steel suction support

Brass / Stainless steel oil cylinder

Brand bearing

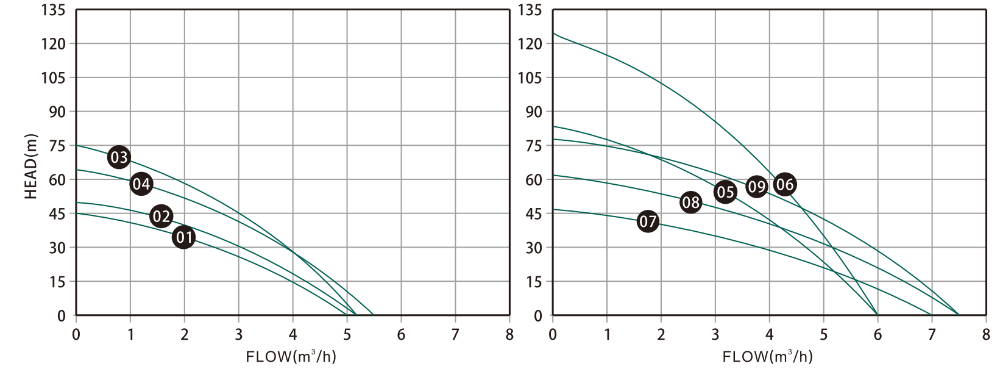

Technical Data:

ACCESSORIES:

FAQ:

1, Q: Does the DC solar deep well can be using with solar panel directly?

    A: Yes, it can be, with the solar inverter, the pump can work with solar panel;

2, Q: How to choose the solar panel for the pumps?

    A:  Consider the Illumination and conversion efficiency; the power of solar panel should be 1.5 times of power of pump. For example if the Solar pump is 1000W; then the total power of solar panel should be over 1500W of this unit.

3, Q: Does the pump with full accessories like picture on the above?

    A: Yes, the full set of accessories will be packing in the same carton with pump.

4, Q: How about the packing pumps?

    A: Each unit will be packing by standard export packing; if shipment is by bulk, we will pack the goods by pallet; and it is very safety for transportation

5, Q: How about the payment terms?

    A: We acceptable various payment terms, like DP, LC. Bank transfer..

6, Q: How about the warranty of the pumps?

    A: We offer 12 Months as our quality warranty for all of our products;

        we will take charge the quality problem if fault of our products,

        we will send the free unit in next purchase. But all of our products will be testing by our QC; so mostly we can avoid it.

7, Q: Do you accept the customize order? How many units can custom packing, logo, manual and logo print?

    A: Yes, we do accept the customized /OEM order; Usually the pump will be by MASTER EAGLE brand which is acceptable in the market;

       The customized order quantity will be start from 300 unit.
