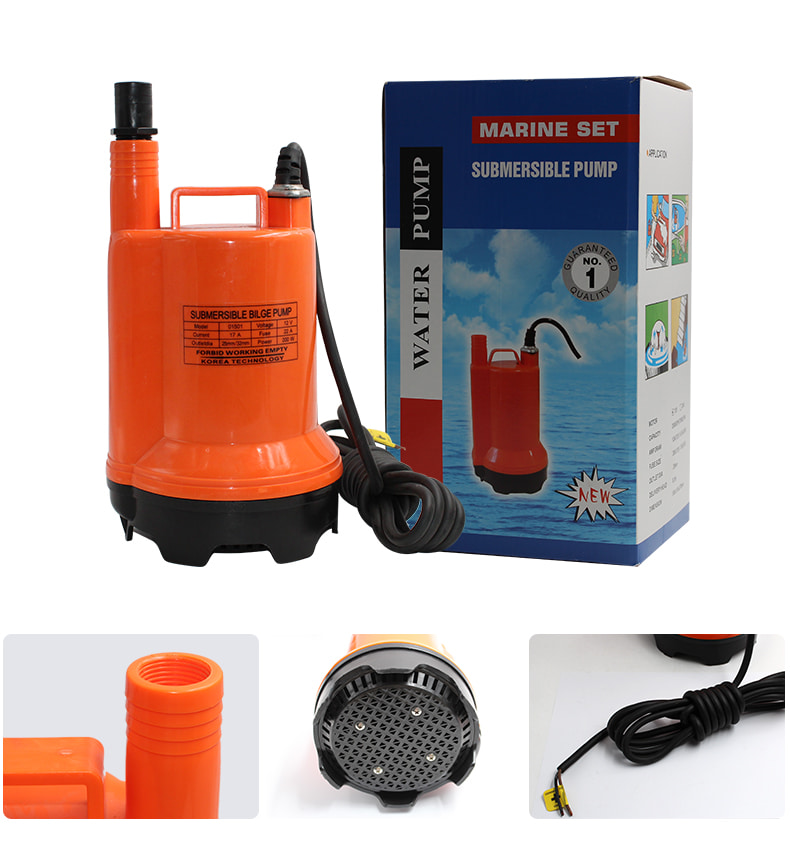

The MST-01501 Series DC submersible pump is with Korean technology design; the pump wit heavy duty motors with stainless steel shafts and tough thermoplastic bodies; total submersible design ignition protected.
The pump was designed by water cooled motor for long life. It can be widely using in several area. Like fishing, marine, boat, irrigation and others.
It is powerful submersible pump that there is not blocked by open impeller type.
The case of the pump is not corroded because it is made up of polyacetal resin, it is possible to use this pump both seawater and fresh water.
DC products will be operated with using by battery for vehicles, it may be used for the urgent drainage in case of a blackout.
Voltage (Vdc) :
24VdcMax Flow (M³/h) :
4000 GPHMax Head (M) :
8.5MOQ Order :
50PCSWarranty :
1 YearProduct Features：
1.Low amp draw conserves batteries
2.Long life motor with stainless shafts
3.Includes comprehensive user manual with installation instructions and wiring diagram
4.Easily fitted and removed
5.Excellent self-suction capability
6.Pump controlled automatically by built-in pressure switch
7.Permissible liquid temperature up to 140 deg.F
8.Low noise,excellent corrosion resistance and high pressure
Applications:
• For water supply and drainage for agriculture, industry, gardening, fish farming, aquarium, marine and vehicles for transporting live fish.
• Water supply pump for drinking water and shower of camping car.
• Water supply pump for fountain using solar power
• For drainage pump for areas prone to floods such as bilge of vessel and basement.
Technical Data:
|
Model |
MST-01501 |
|
Voltage |
24V (12V by customzied) |
|
Power |
200 W |
|
Max Flow |
4000 GPH |
|
Max lift |
8M (26.5 ft) |
|
Diameter |
25MM/32MM |
|
Products Size |
16.5x27x21CM |
|
Power Cord Length |
3M |
Usage:
Finished Products:
