DC Solar Water Pump

4SSP 4" DC 750-1500W High Flow Stainless Steel Solar Water Pump With Plastic Impeller

4SSP-1 4" High Flow Brushless DC Solar Submersible Pump With Stainless Steel Impellers

The pump with complete stainless steel material ( impellers, oil cylinder, rotor and outlet ) ; it can be working hard condition, without rusty and less maintenance.

The pump with permanent magnet DC brush-less motor; energy saving and high efficiency

4 Inch design can be using most 4" deep well; with standard inverter; the pump will be widely using for different purpose.

Voltage (Vdc) :
48, 72, 110
Max Flow (M³/h) :
4.8; 5.2; 7.5
Max Head (M) :
45 ~ 203
MOQ Order :
50PCS
Warranty :
1 Year

Inquiry now

Product Details

Why Solar-Powered Deep Well Pump Systems Outperform Traditional Options?

Rising fuel prices and aging power grids make conventional pumps impractical for modern needs. A solar deep well pump, however, leverages free solar energy to deliver consistent water flow without dependency on fossil fuels or unstable electricity. Farmers, ranchers, and homeowners worldwide are adopting these systems to future-proof their water access.

Key Benefits Driving Global Adoption:

Energy-Efficient Operation: High-efficiency photovoltaic panels power brushless DC motors, reducing energy waste and maximizing output.

Cost Savings: Eliminate fuel costs and slash maintenance by 60% compared to diesel pumps.

Deep Well Compatibility: Engineered for depths up to 200 meters, durable solar well pumps for irrigation thrive in harsh environments, from arid deserts to humid tropics.

Eco-Conscious Design: Zero carbon emissions support sustainability certifications and green initiatives.

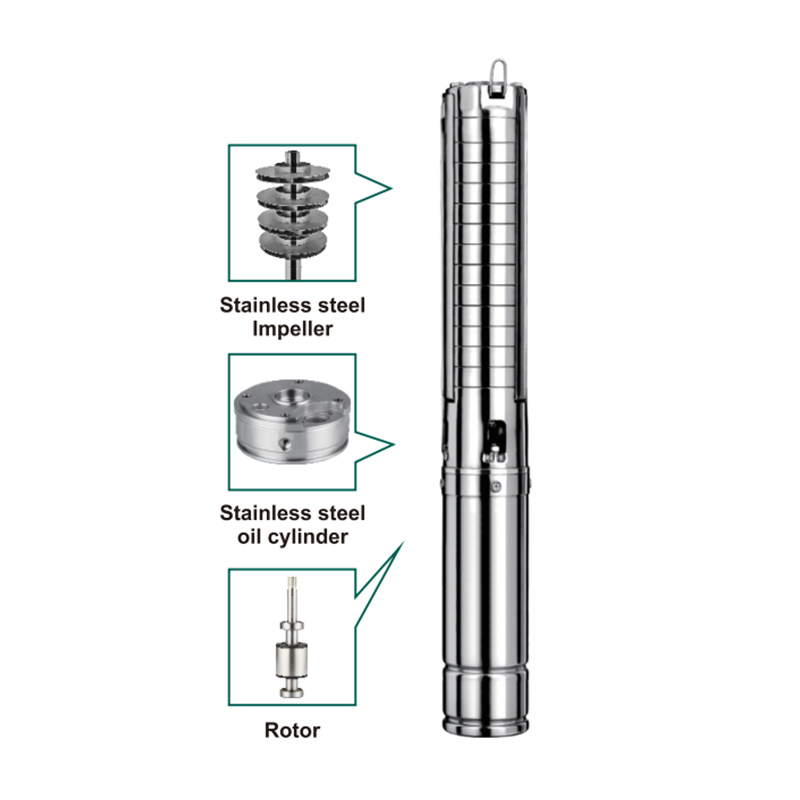

With top quality spare parts:

Stainless steel impeller

Stainless steel suction support

Stainless steel oil cylinder

NSK Brand bearing

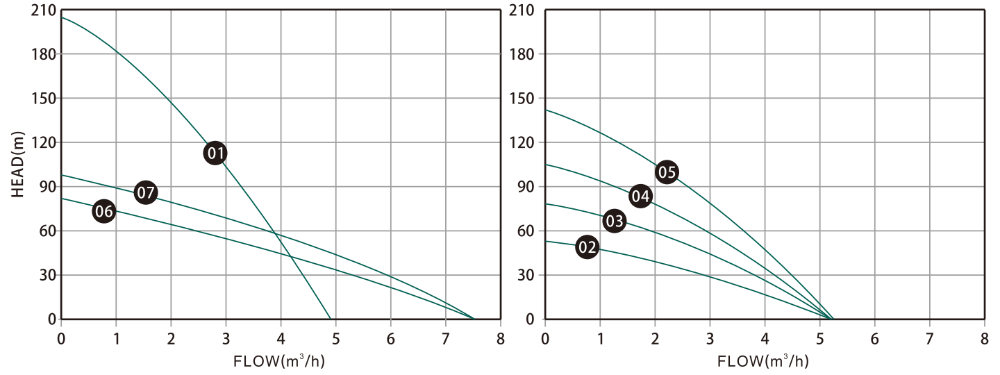

Technical Data:

No.	ITEM	Volt (Vdc)	Max Flow (M³/h)	Max Head (m)	Pump		Outlet	Cable	Solar Panels
No.	ITEM	Volt (Vdc)	Max Flow (M³/h)	Max Head (m)	Optimum Input Volt(Vdc)	Power (W)	Outlet	Cable	Open Circuit Volt (Voc)	Power(W)
1	4SSP-1-4.8-203/110-1500	110	4.8	203	60-160	1500	1.25"	2m	≤200Vdc	≥1.5*Pump power
2	4SSP-1-5.2-45/48-500	48	5.2	45	40-90	500	1.25"	2m	≤110Vdc	≥1.5*Pump power
3	4SSP-1-5.2-67/48-750	48	5.2	67	40-90	750	1.25"	2m	≤110Vdc	≥1.5*Pump power
4	4SSP-1-5.2-100/72-1100	72	5.2	100	50-120	1100	1.25"	2m	≤160Vdc	≥1.5*Pump power
5	4SSP-1-5.2-146/110-1300	110	5.2	146	60-160	1300	1.25"	2m	≤200Vdc	≥1.5*Pump power
6	4SSP-1-7.5-80/110-1300	110	7.5	80	60-160	1300	1.25"	2m	≤200Vdc	≥1.5*Pump power
7	4SSP-1-7.5-100/110-1500	110	7.5	100	60-160	1500	1.25"	2m	≤200Vdc	≥1.5*Pump power

ACCESSORIES:

FAQ:

1, Q: Does the DC solar deep well can be using with solar panel directly?

A: Yes, it can be, with the solar inverter, the pump can work with solar panel;

2, Q: How to choose the solar panel for the pumps?

A: Consider the Illumination and conversion efficiency; the power of solar panel should be 1.5 times of power of pump. For example if the Solar pump is 1000W; then the total power of solar panel should be over 1500W of this unit.

3, Q: Does the pump with full accessories like picture on the above?

A: Yes, the full set of accessories will be packing in the same carton with pump.

4, Q: How about the packing pumps?

A: Each unit will be packing by standard export packing; if shipment is by bulk, we will pack the goods by pallet; and it is very safety for transportation

5, Q: How about the payment terms?

A: We acceptable various payment terms, like DP, LC. Bank transfer..

6, Q: How about the warranty of the pumps?

A: We offer 12 Months as our quality warranty for all of our products;

we will take charge the quality problem if fault of our products,

we will send the free unit in next purchase. But all of our products will be testing by our QC; so mostly we can avoid it.
