Intelligent Inverter Pump

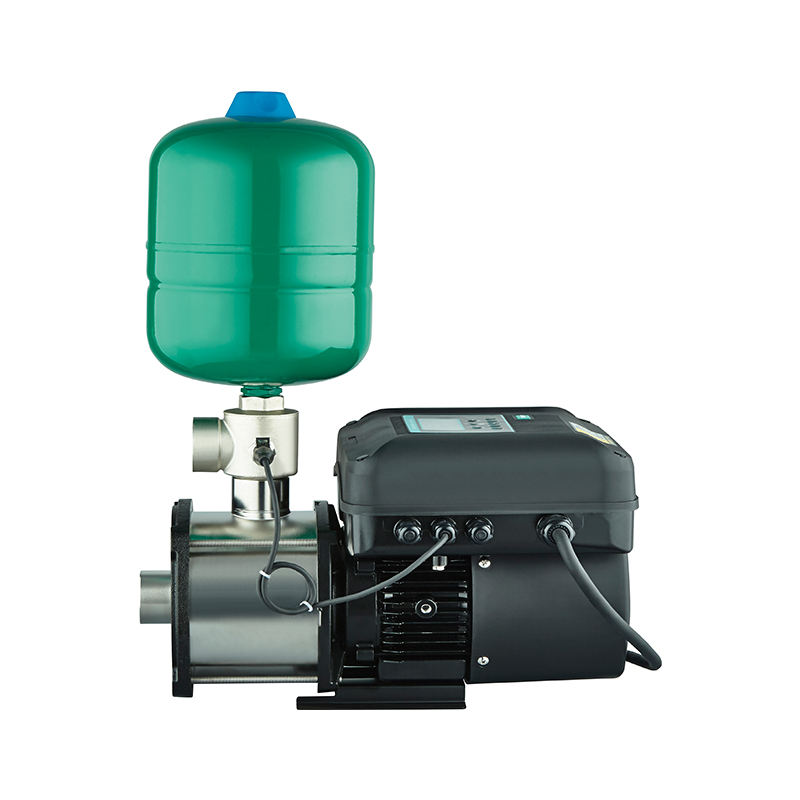

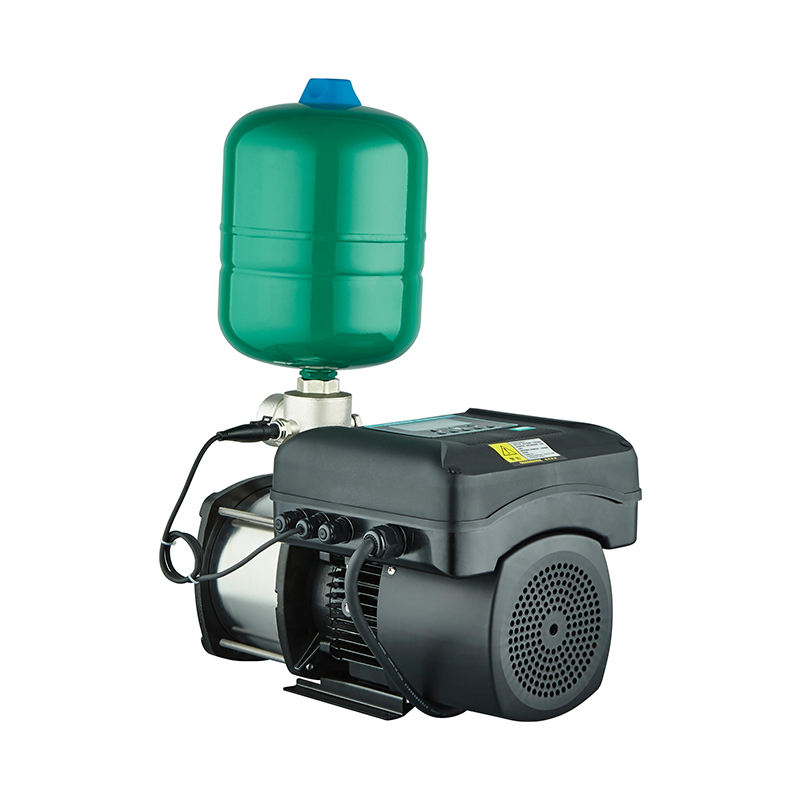

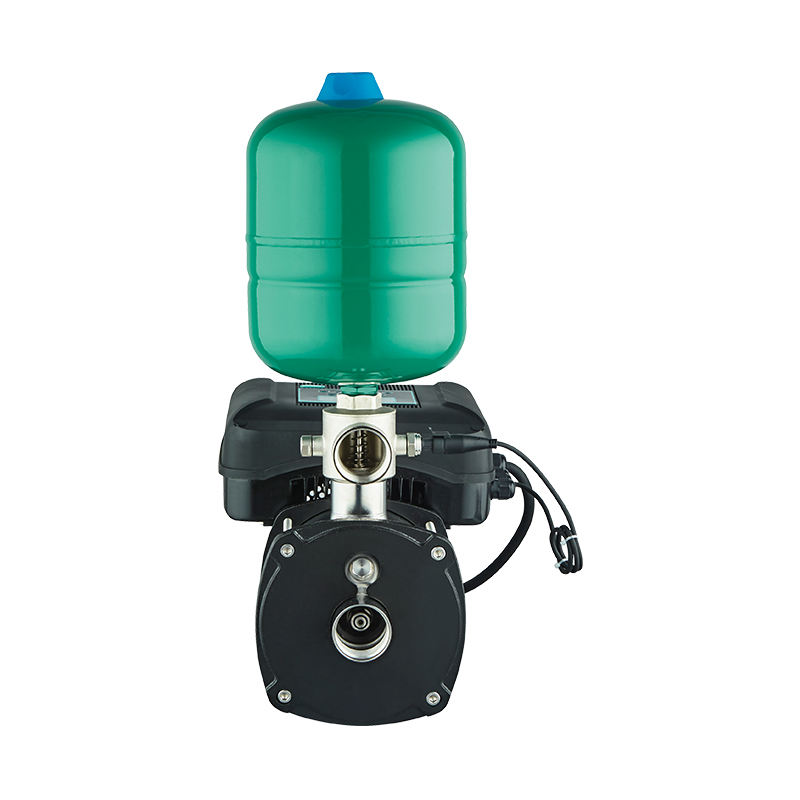

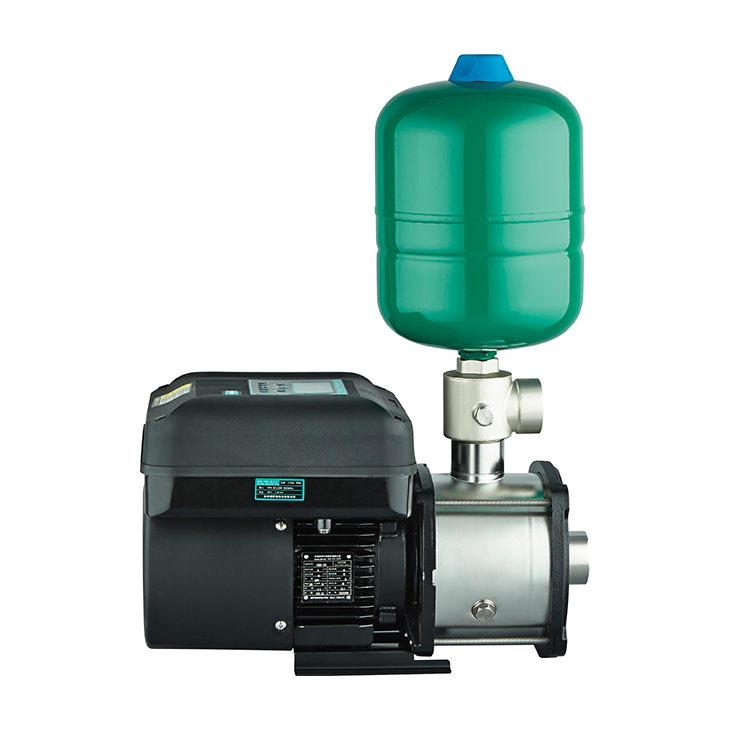

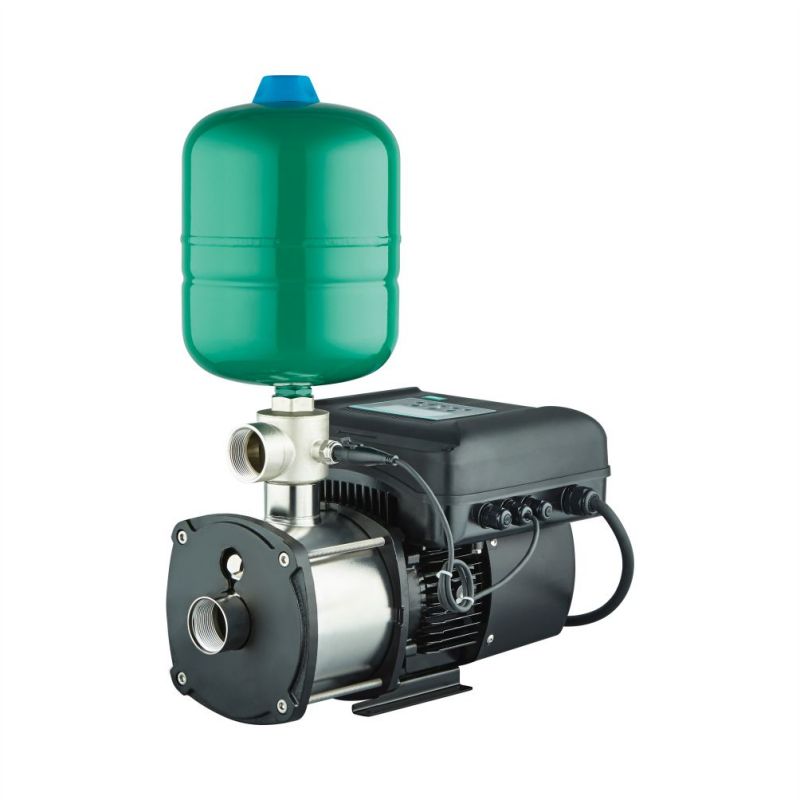

CHM-DC 3HP High Flow Intelligent Inverter Booster Multi-stage Centrifugal Pump

The CHM 3 HP series high flow, high pressure centrifugal inverter water pump is the pinnacle of innovation in water pumping technology.

Offering adjustable pressure, unmatched energy-saving abilities, high flow rate, multi-functionality, wifi control, anti-freezing assurance, low-noise operation, multi-protection features, and adaptability to a wider voltage range, it is truly a testament to our commitment to excellence.

Equip this wonderful pump, and let it revolutionize your water management experience.

Available Output :
2.2KW / 3.0HP
Voltage/Hz :
220V, 380V; 50/60HZ
Control Box :
Touch Screen LCD type with WIFI
Customized Service :
YES, Brand/ Logo/ User manual/ Unit Box
MOQ Order :
50PCS
Warranty :
12 Months

Inquiry now

Product Details

Products Application:

Domestic water supply

Water pressure boosting

Water transfer

Cooling system

Heating system

Irrigation

Operating Conditions:

Liquid:clean liquids without suspended solids，non-aggressive

Liquid temperature: 0℃ ~ 60℃

Ambient temperature: <40℃

Maximum pressure: 10 bar

Continuous service: S1

Insulation: B

Protection: lP X4

Booster Multi-stage Centrifugal Pump

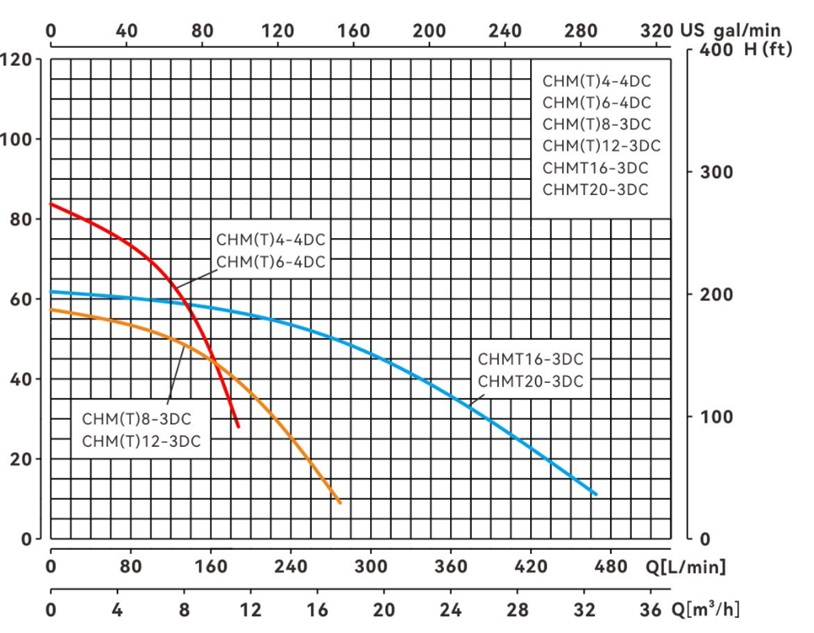

Performance Curve:

Technical Data:

Model	Voltage	Power		Current	Speed	Flow (m3/h)		Head (m)		Suction	Inlet/Outlet	Remark
Model	V	HP	KW	A	RPM	Max.	Rated	Max.	Rated	M	Inlet/Outlet	Remark
CHM4-4DC	220V 50/60HZ	3	2.2	5.3	4200	10.5	4	82	73	non	1" * 1"	WIFI 5-Pumps boosting System
CHM6-4DC	220V 50/60HZ	3	2.2	5.3	4200	10.5	6	82	65	non	1 1/4"*1"
CHM8-3DC	220V 50/60HZ	3	2.2	10	4000	13	8	55	45	non	1 1/2" x 1 1/2"
CHM12-3DC	220V 50/60HZ	3	2.2	10	4000	16	12	55	30	non	2" x 2"
CHM8-3DC	3~ 380V 50/60HZ	3	2.2	10	4000	13	8	55	45	non	1 1/2" x 1 1/2"
CHM12-3DC	3~ 380V 50/60HZ	3	2.2	10	4000	16	12	55	30	non	2" x 2"

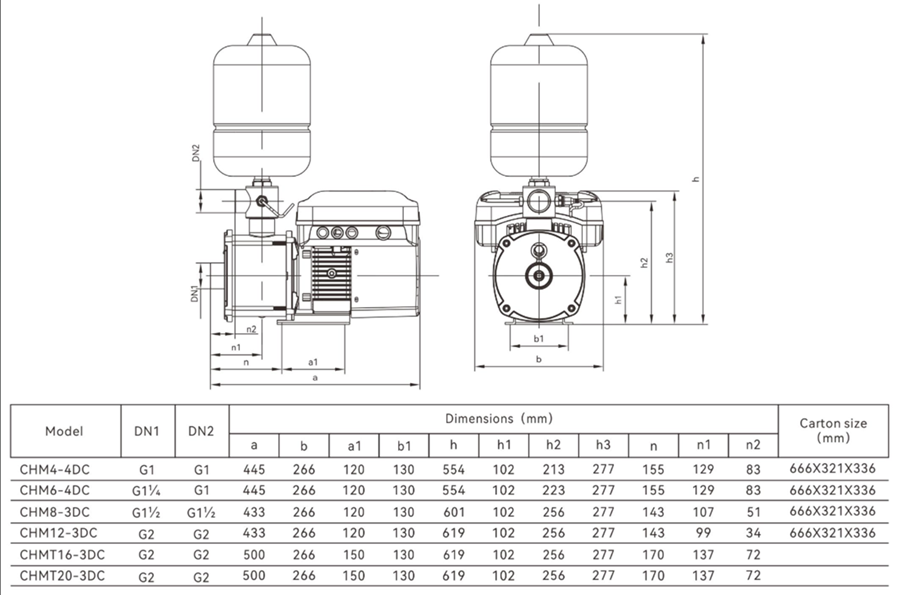

Installation Dimensions:

WHY CHOOSE OUR PUMPS?

A-We have APP Control

Phone APP control the pumps anywhere and any time.
The APP could be setting the following function: Start & Stop Pumps / Adjust Pressure Value / Adjust Working Mode / Check Pressure
Check Fault Code/ Check Working Situation

B-High Technology Makes Pump Smart

The controller powered by "Infineon"module,higher performance and much more stable.
Control program specially designed for water pump and had the copy right of software.
Electronic pressure transducer is used imported ceramic chip,no magnetic components,excellent pressure collection speed and longer service life.

B-3 Working Mode(3 in 1)

3 Working mode of pump

There are three working mode suitable for all domestic used.

BOOSTER UP/ BOOSTER DOWN / TIMING/FILLING THE TANK

You can choose the working mode and set your desired requirement on the control panel.Very Easy for setting and used.

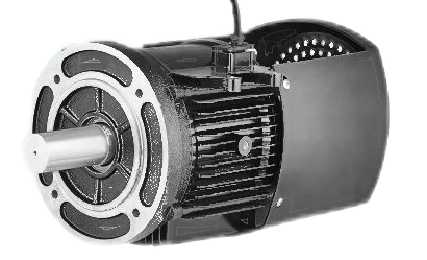

C-With Permanent magnet inverter motor

High speed,high efficiency,low energy consumption Permanent magnet high speed motor,small size and high efficiency,energy conservation and environment protection.
With sealing stator and roto. The stator and rotor are processed by special sealing process.It avoid short circuit when the water leakage into motor.
It can soft start/stop, and reduces noise and protects equipment.
