Intelligent Inverter Pump

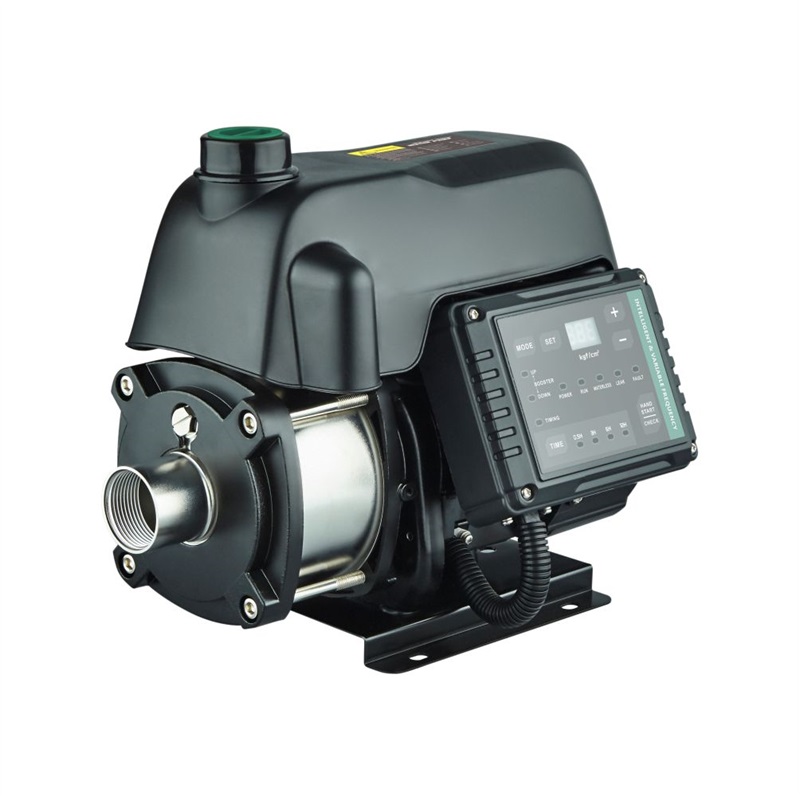

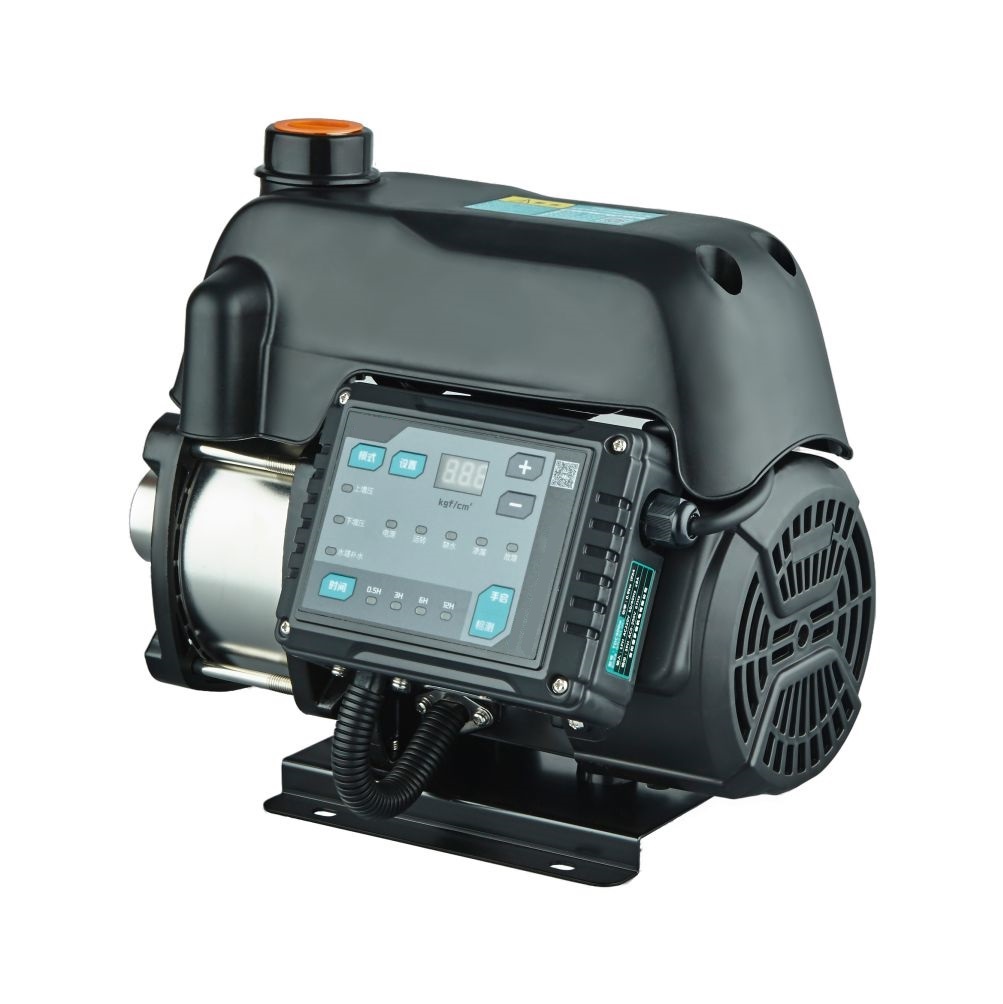

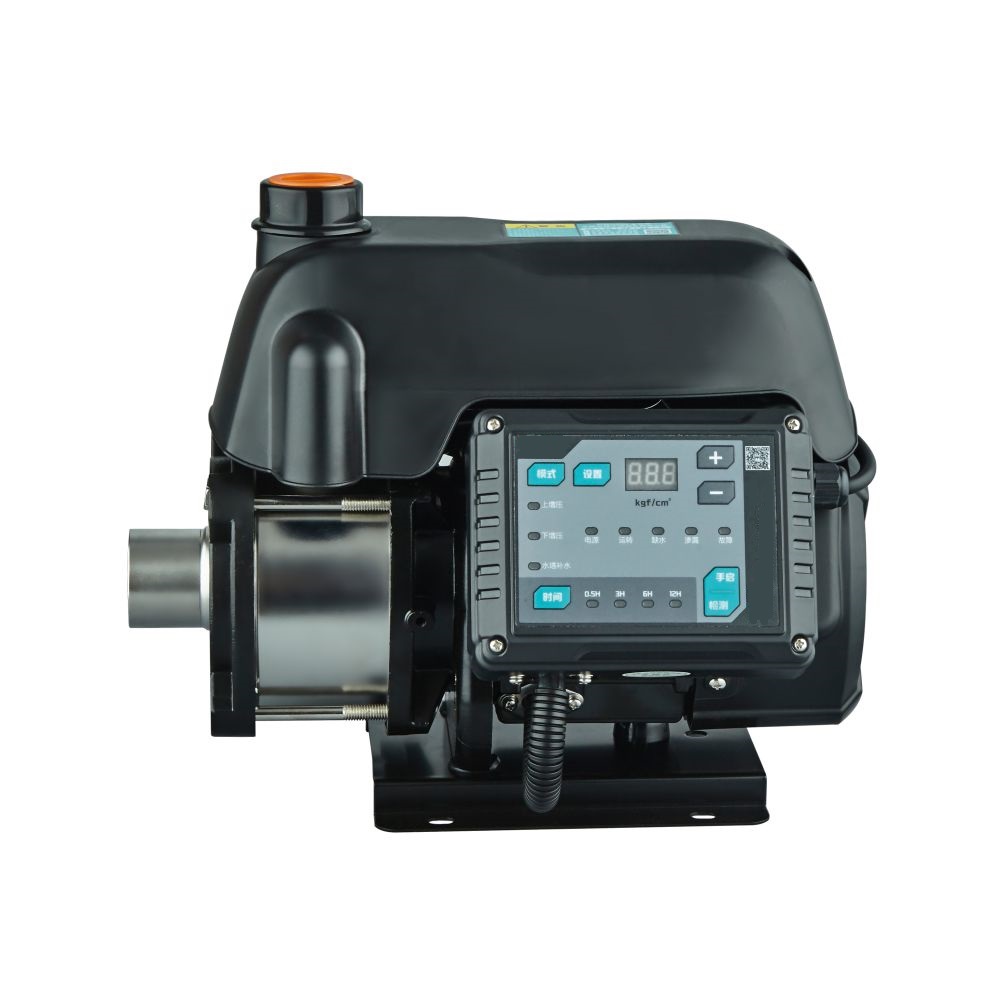

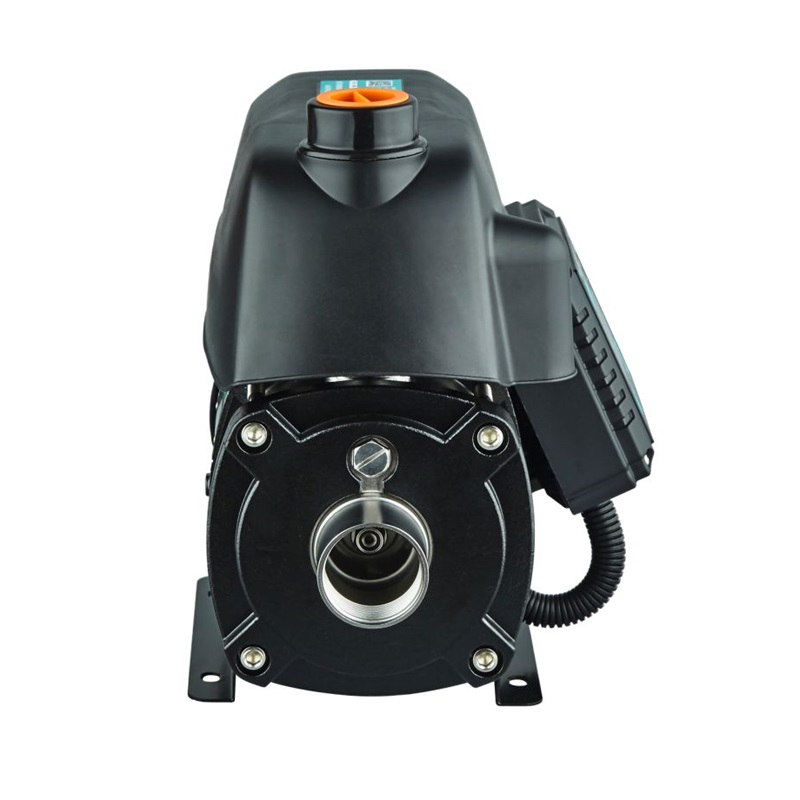

CHM-DC Smart Booster Constant Pressure Horizontal Multi-stage Centrifugal Pump

The CHM series Inverter Water Pump - the epitome of cutting-edge technology in the field of water management.

Designed with the utmost precision, this exceptional pump is equipped with a remarkable constant pressure feature, allowing you to effortlessly fine-tune the water pressure according to your needs. Its wide range of adjustable pressure settings ensures a seamless and tailored water flow experience, while simultaneously conserving energy.

Available Output :
0.5HP / 1.0HP / 2.0HP
Voltage/Hz :
110V / 220V ; 50/60Hz
Control Box :
Button type / Touch Screen LCD type with WIFI
Customized Service :
YES, Brand/ Logo/ User manual/ Unit Box
MOQ Order :
50 PCS
Warranty :
12 Months

Inquiry now

Product Details

Operating Conditions:

Liquid:clean liquids without suspended solids，non-aggressive

Liquid temperature: 0℃ ~ 60℃

Ambient temperature: <40℃

Maximum pressure: 10 bar

Continuous service: S1

Insulation: B

Protection: lP X4

CHM4-3DC 2HP INVETER PUMP

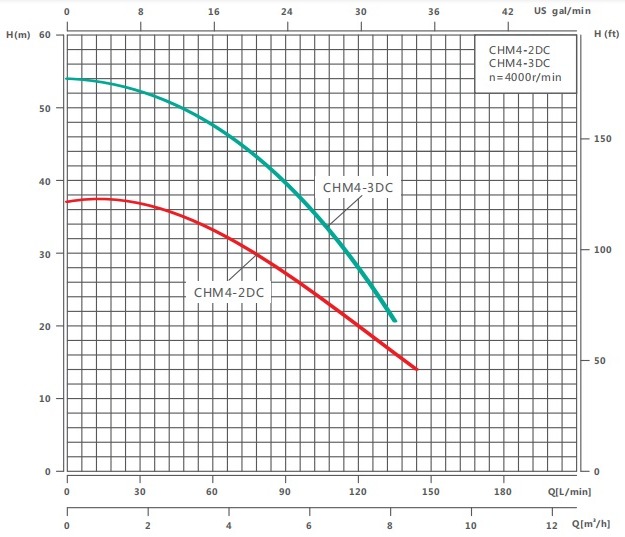

Performance Curve:

Technical Data:

Model	Voltage	Power		Current	Speed	Flow (m3/h)		Head (m)		Suction	Inlet/Outlet	Remark
Model	V / HZ	HP	KW	A	RPM	Max.	Rated	Max.	Rated	M	Inlet/Outlet	Remark
CHM2-2DC	220, 50/60	0.5	0.37	2.5	4500	4.4	1.5	38	25	non	1" * 1"	Button Controller
CHM4-2DC	220, 50/60	1	0.75	6.2	4000	8	4	37	30	non	1 1/4"*1"
CHM4-3DC	220, 50/60	2	1.5	6.5	4000	8	4	55	45	non	1 1/4"*1"
CHM4-2DC-LW	220, 50/60	1	0.75	6.2	4000	8	4	37	30	non	1 1/4"*1"	LCD touch screen + wifi
CHM4-3DC-LW	220, 50/60	2	1.5	6.5	4000	8	4	55	45	non	1 1/4"*1"	LCD touch screen + wifi

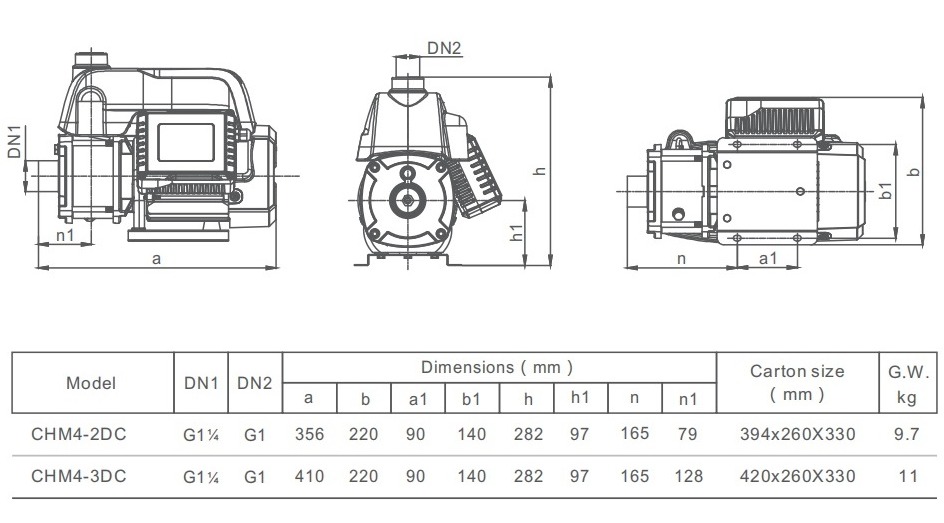

Installation Dimensions:

WHY CHOOSE OUR PUMPS?

A-We have APP Control

Phone APP control the pumps anywhere and any time.
The APP could be setting the following function: Start & Stop Pumps / Adjust Pressure Value / Adjust Working Mode / Check Pressure
Check Fault Code/ Check Working Situation

B-High Technology Makes Pump Smart

The controller powered by "Infineon"module,higher performance and much more stable.
Control program specially designed for water pump and had the copy right of software.
Electronic pressure transducer is used imported ceramic chip,no magnetic components,excellent pressure collection speed and longer service life.

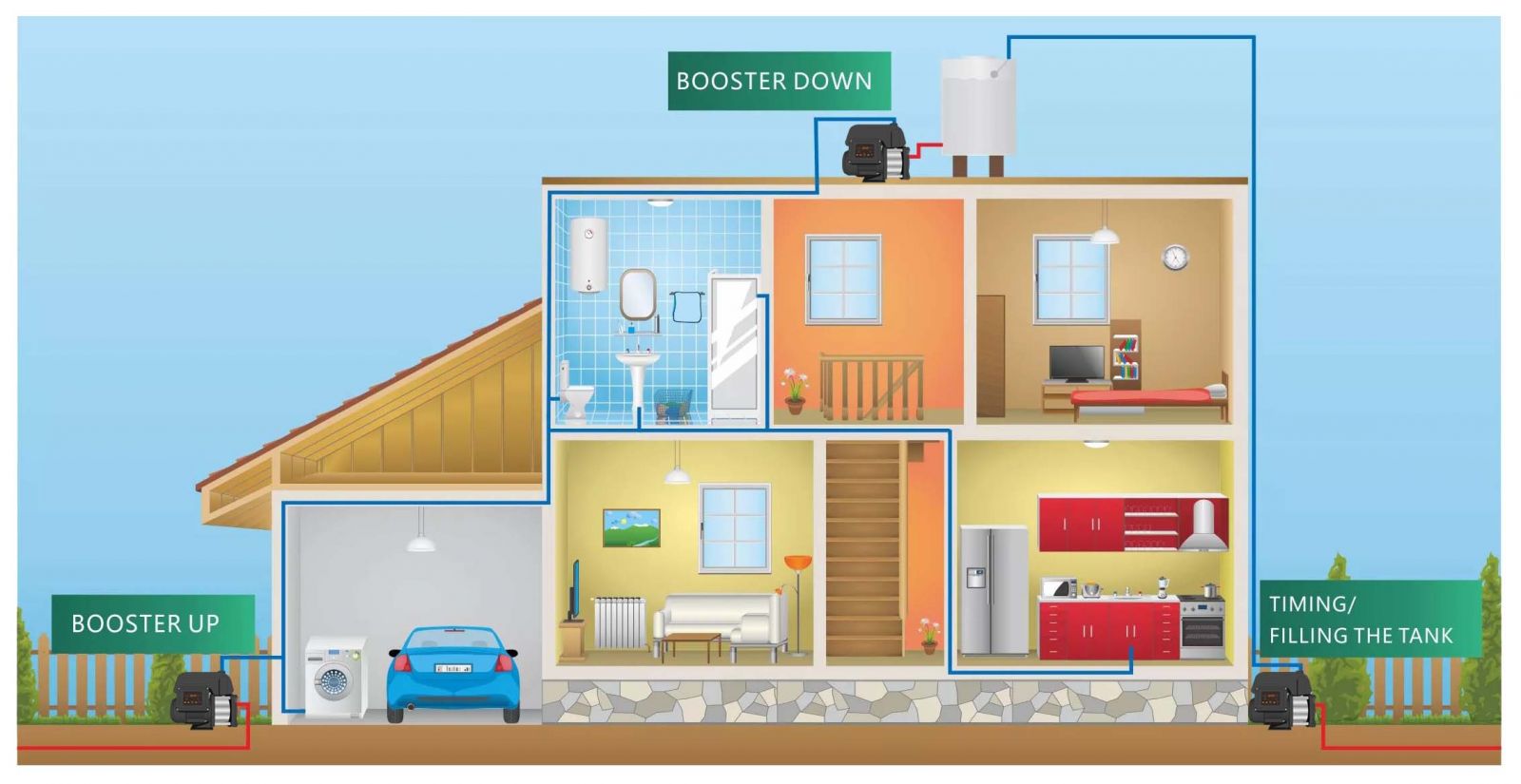

B-3 Working Mode(3 in 1)

3 Working mode of pump

There are three working mode suitable for all domestic used.

BOOSTER UP/ BOOSTER DOWN / TIMING/FILLING THE TANK

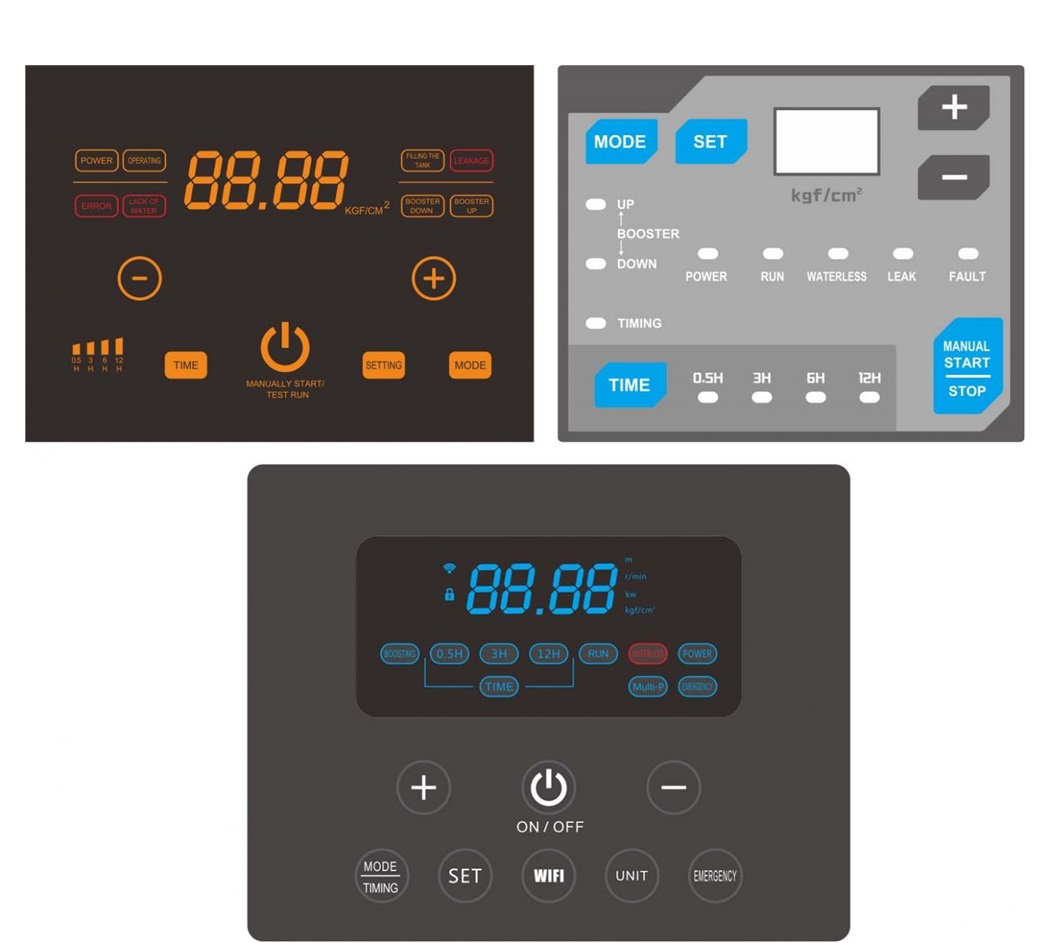

You can choose the working mode and set your desired requirement on the control panel.Very Easy for setting and used.

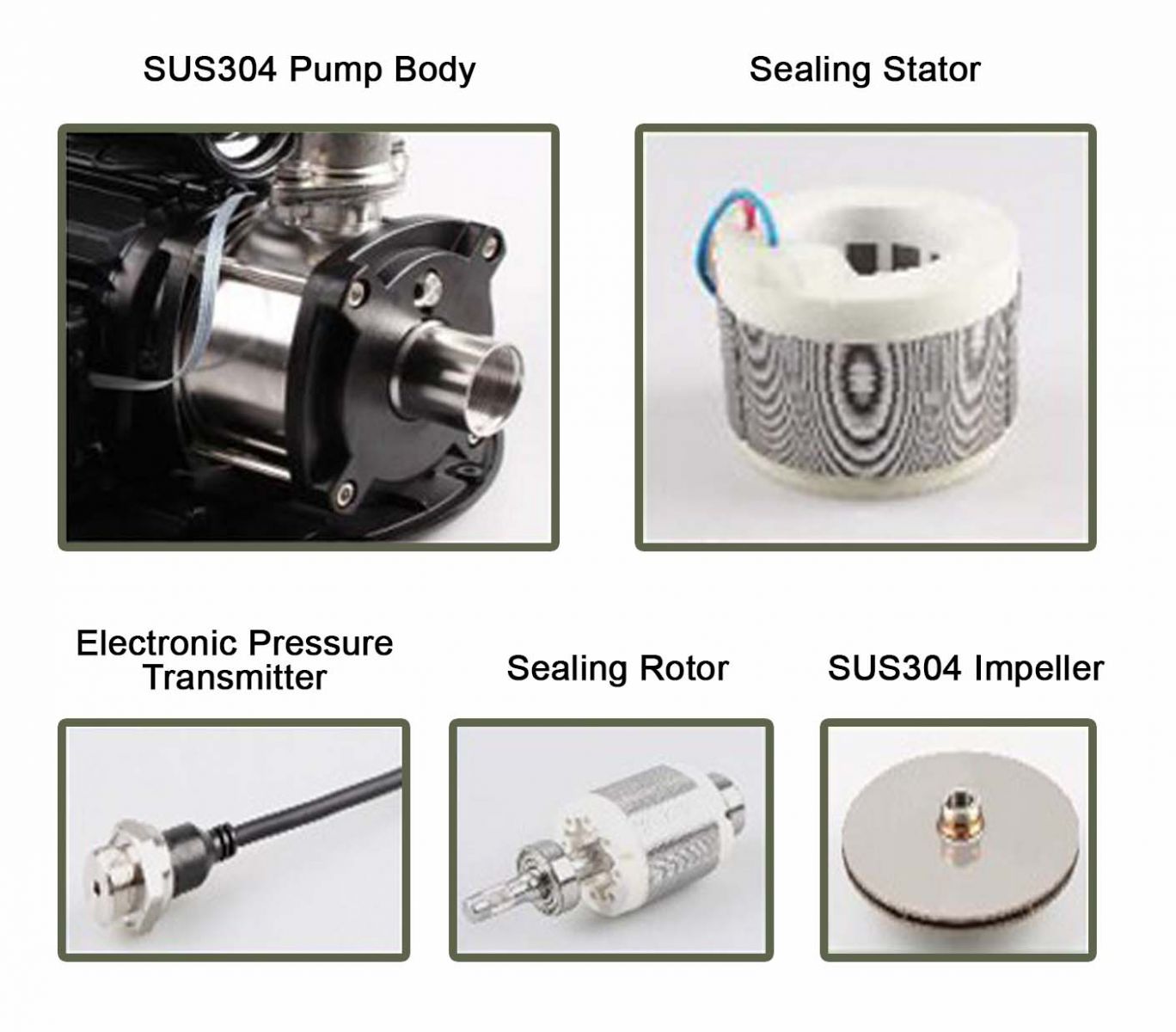

C-With Permanent magnet inverter motor

permanent magnet inverter motor of chm-z pump

High speed,high efficiency,low energy consumption Permanent magnet high speed motor,small size and high efficiency,energy conservation and environment protection.
With sealing stator and roto. The stator and rotor are processed by special sealing process.It avoid short circuit when the water leakage into motor.
It can soft start/stop, and reduces noise and protects equipment.
