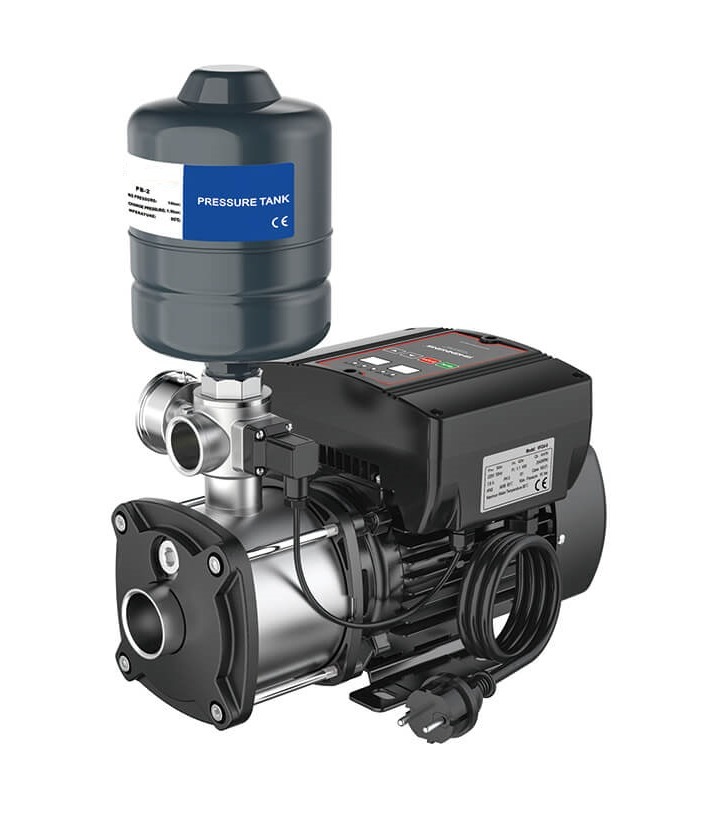

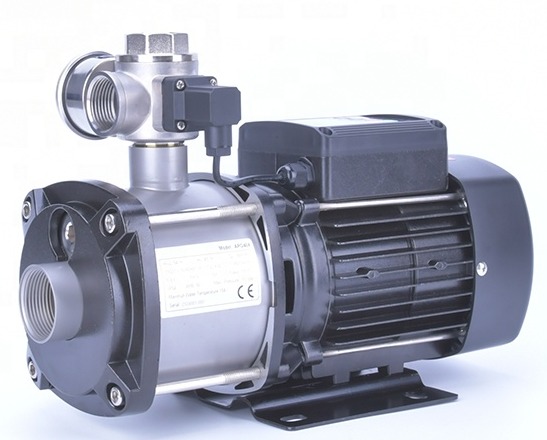

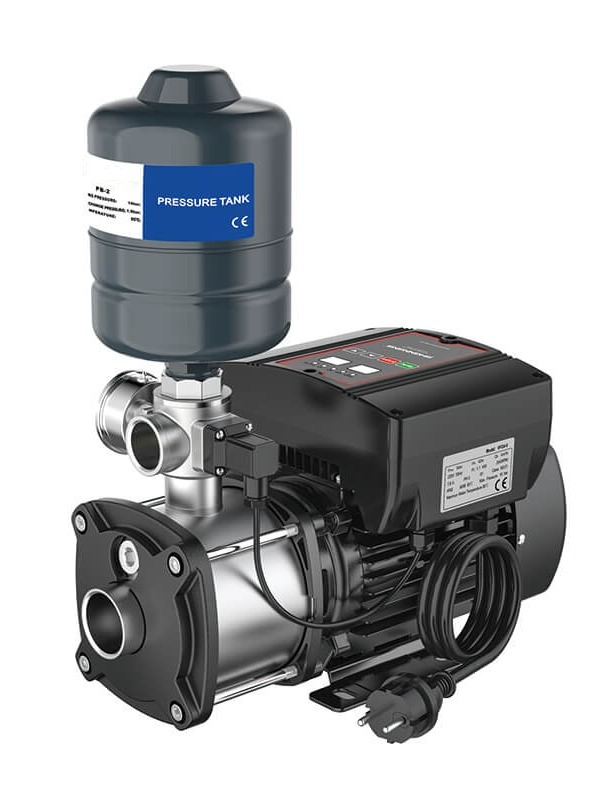

VFG High flow Intelligent Inverter Constant Pressure Variable Frequency Water Pump

Product overview:

1.Over flow parts are 304 stainless steel, in line with drinking water sanitation standards;
2.Shaft seal for the mechanical seal, different media choose the friction accordingly;
3.F Class insulation, IP54 protection grade;
4.Supporting LCD display human-machine interface, simple operation;
5.Equipped with industrial -grade pressure sensors;
6.Multiple pumps can be networked online.

Product features:

Constant pressure
Energy saving
Comfortable

Materials:

Stainless steel pump body,

stainless steel impeller,

304 welding shaft,

silicon carbide to graphite mechanical seal,

Sensata pressure sensor,stainless steel five-way,

stainless steel oil pressure gauge,

IP54

Operating Conditons:

Liquid temperature: High temperature(0℃~+100℃)
Environment temperature:≤40℃

Technical Data:

WHY OUR PUMPS ARE SO OUTSTANDING?

A- with Permanent magnetic synchronous motor

High speed,high efficiency,low energy consumption Permanent magnet high speed motor,small size and high efficiency,energy conservation and environment protection.

B-Insensitive FOC vector drive technology

Motor insensitive drive technology (FOC), fully realize the zero maintenance of the motor system

C-Diaphragms pressure tank technology

With customized high quality pressure tank, to make sure the constant pressure all the time

D-Check valve to eliminate water hammer.

With its exceptional engineering, this water pump guarantees a consistent and uninterrupted flow of water, while also preventing the occurrence of damaging water hammer effects. By effectively controlling the pressure and flow of water, our pump ensures a smooth operation, eliminating any disruptive and noisy vibrations that can be experienced with conventional pumps.
