Intelligent Inverter Pump

chm2-2z 0.5hp multistage centrifugal pump

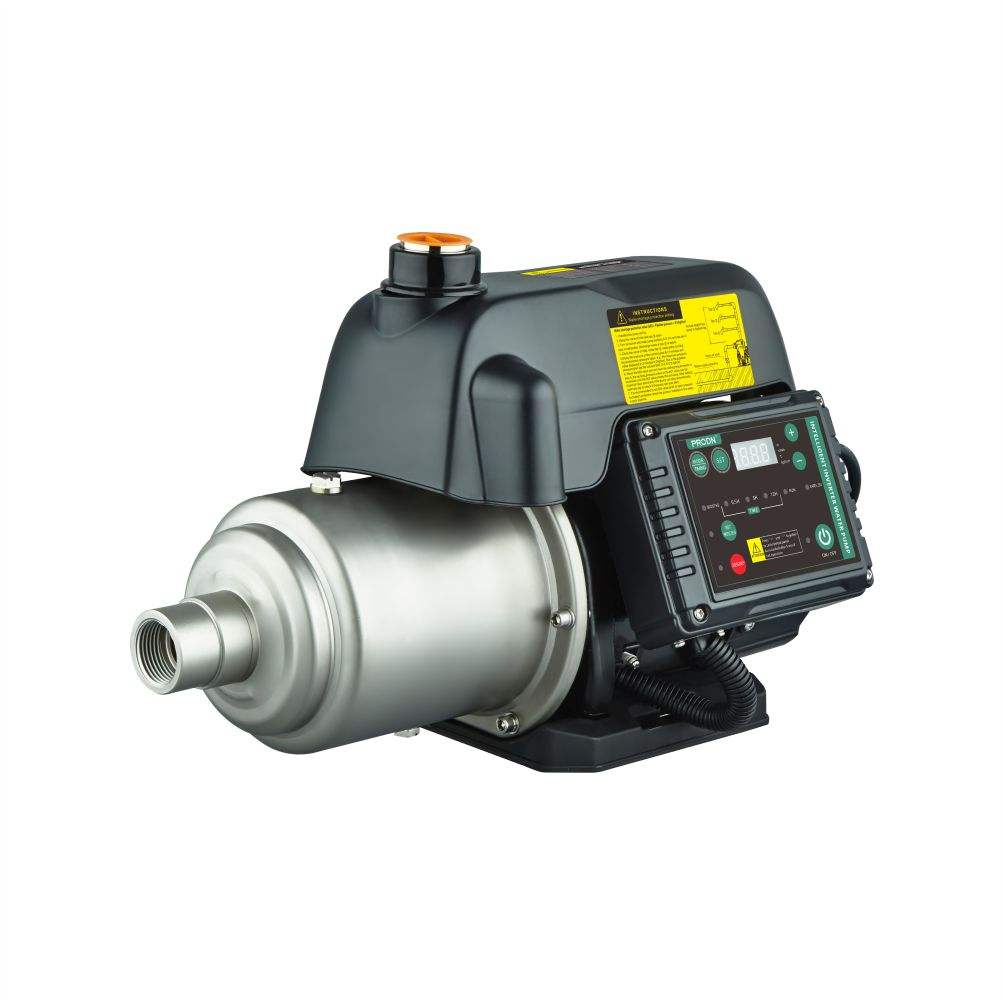

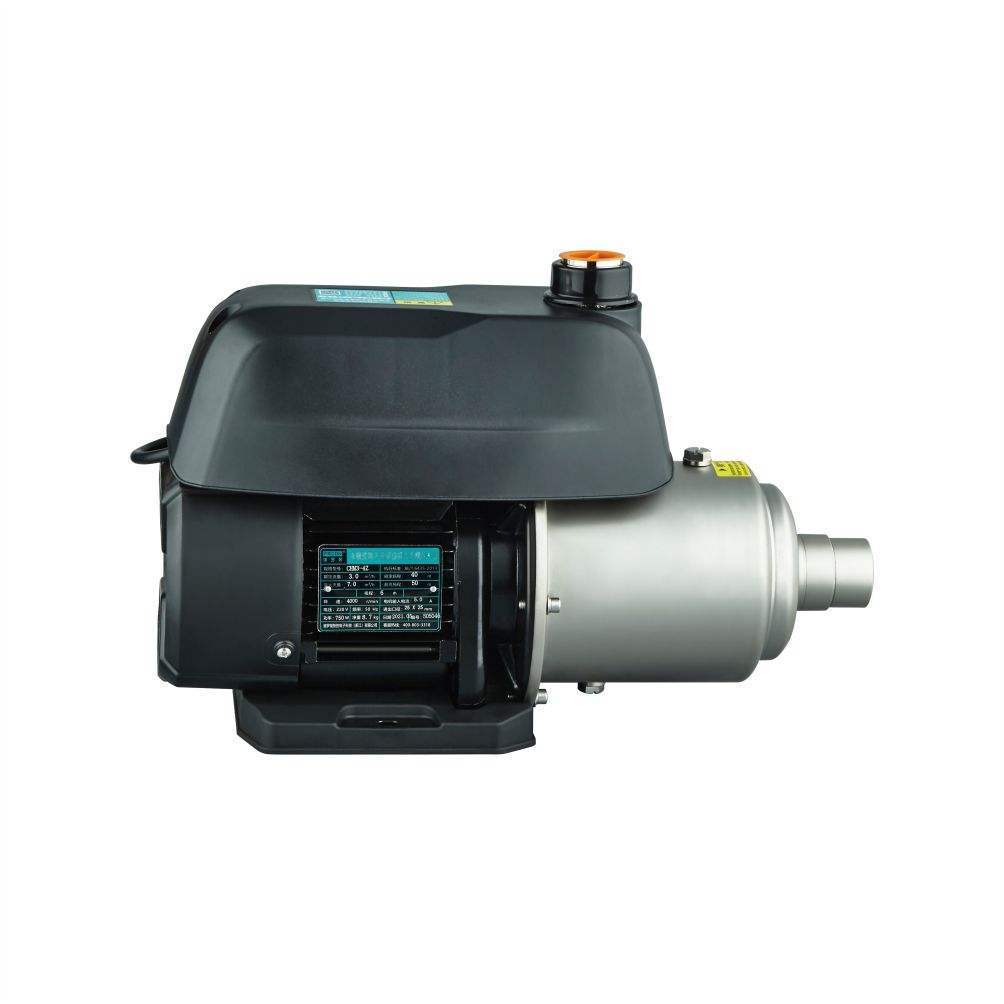

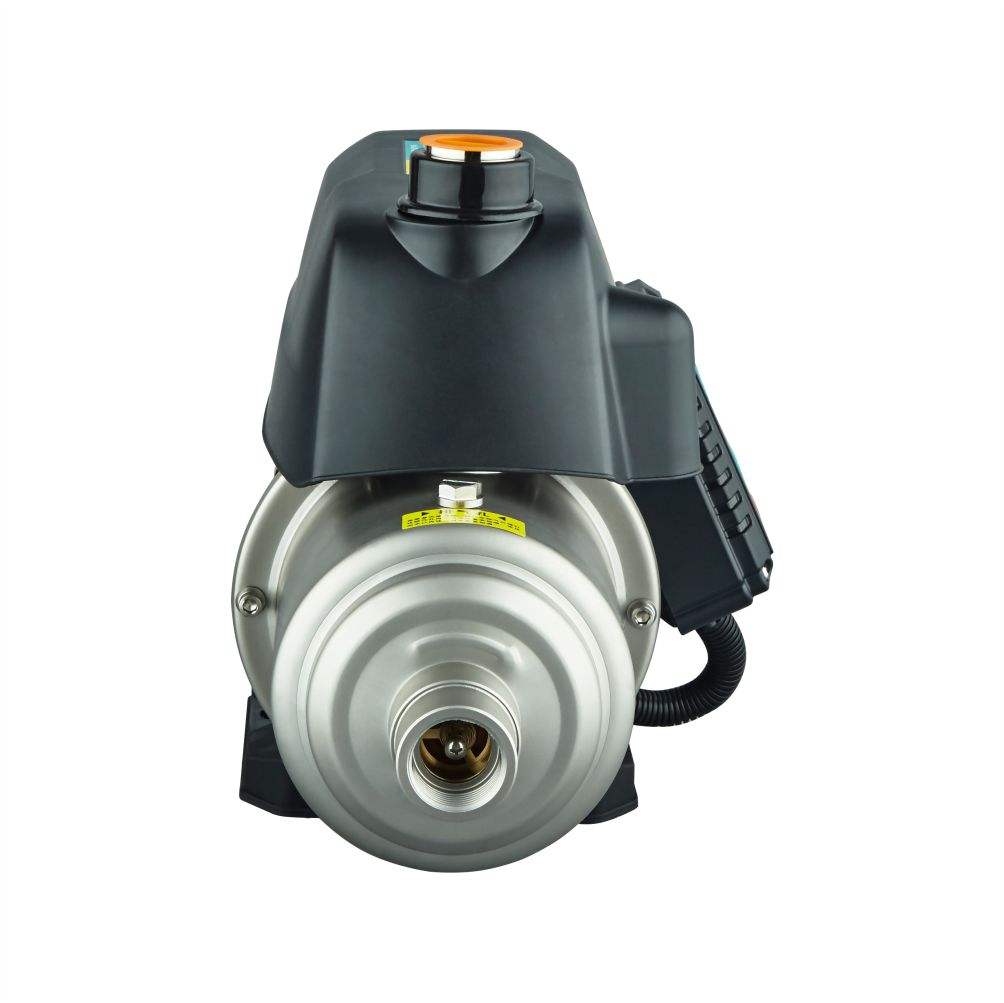

CHM-Z Self-priming VFD Motor Multi-stage Centrifugal Intelligent Inverter Water Pump

The CHM-Z series centrifugal inverter water pump - equipped constant pressure pump offers adjustable pressure, energy - saving with high flow rate, multi - function, self - priming, anti - freezing, low - noise, multi - protection, and operates with a wider voltage range.

Available Output :
0.5HP/ 0.75HP /1.0HP
Voltage/Hz :
110V / 220V ; 50/60Hz
Control Box :
Button type ;Touch Screen LCD type with WIFI
Customized Service :
Brand/ Logo/ User manual/ Unit Box
MOQ Order :
50 PCS
Warranty :
12 Months

Inquiry now

Product Details

Operating conditions:

Liquid:clean liquids without suspended solids, non-aggressive

Liquid temperature: 0℃ ~ 60℃

Ambient temperature: <40℃

Maximum pressure: 10 bar

Continuous service: S1

Insulation: B

Protection: lP X4

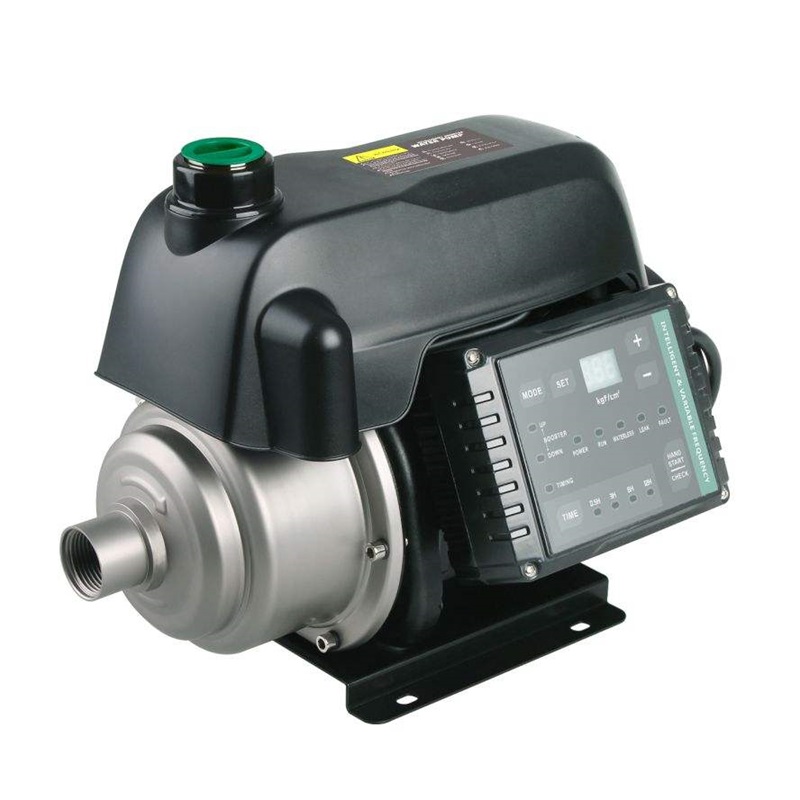

CHM-Z 1hp self-priming water pump

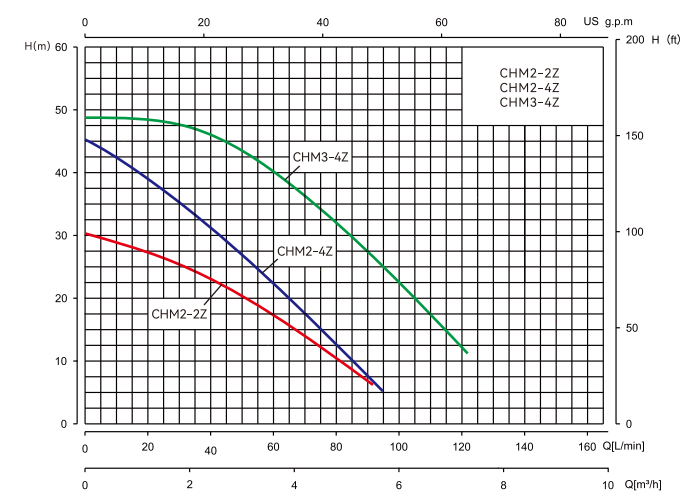

Performance Curve:

Technical Data:

Model	Voltage	Power		Current	Speed	Flow (m3/h)	Head (m)		Suction	Inlet/Outlet	Remark
Model	V/ HZ	HP	KW	A	RPM	Rated	Max.	Rated	M	Inlet/Outlet	Remark
CHM2-2Z	220V; 50/60HZ	0.5	0.37	2.5	4500	1.5	30	25	3	1"x1"	Button Controller
CHM2-4Z	220V; 50/60HZ	0.75	0.55	3.5	4000	2	45	35	6	1"x1"
CHM3-4Z	220V; 50/60HZ	1	0.75	6.2	4000	3	48	40	6	1"x1"
CHM2-2ZLW	220V; 50/60HZ	0.5	0.37	2.5	4500	1.5	30	25	3	1"x1"	LED touch screen + wifi
CHM2-4ZLW	220V; 50/60HZ	0.75	0.55	3.5	4000	2	45	35	6	1"x1"
CHM3-4ZLW	220V; 50/60HZ	1	0.75	6.2	4000	3	48	40	6	1"x1"

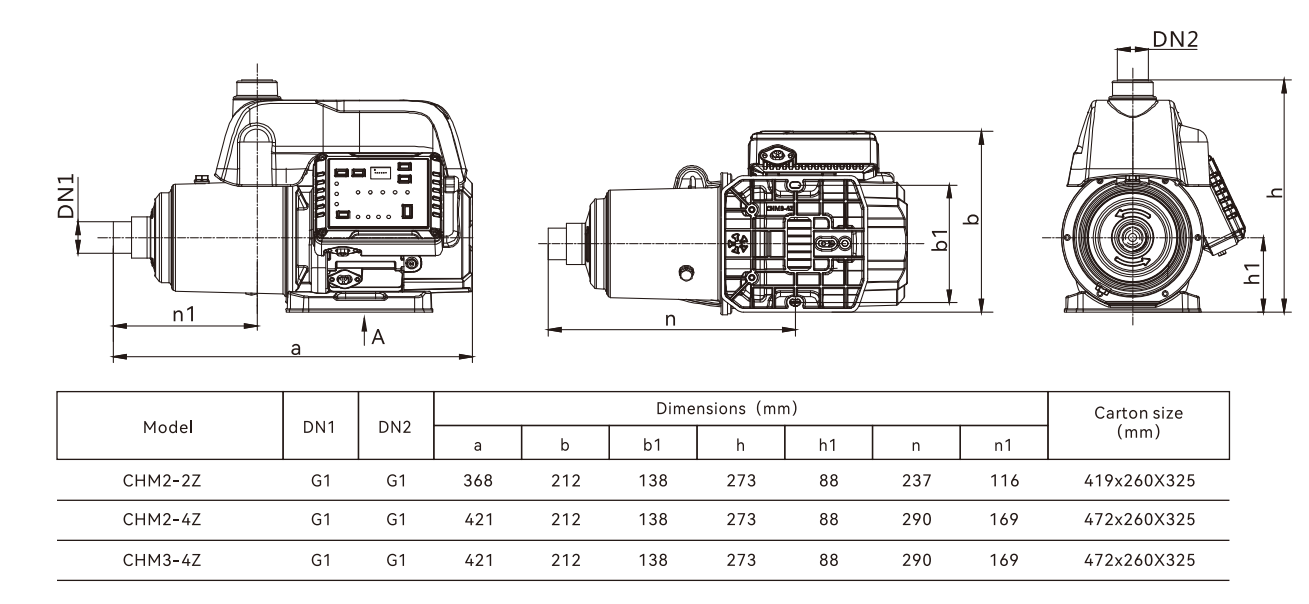

Installation Dimensions:

WHY CHOOSE OUR PUMPS?

A-We have APP Control

Phone APP control the pumps anywhere and any time.
The APP could be setting the following function: Start & Stop Pumps / Adjust Pressure Value / Adjust Working Mode / Check Pressure
Check Fault Code/ Check Working Situation

B-High Technology Makes Pump Smart

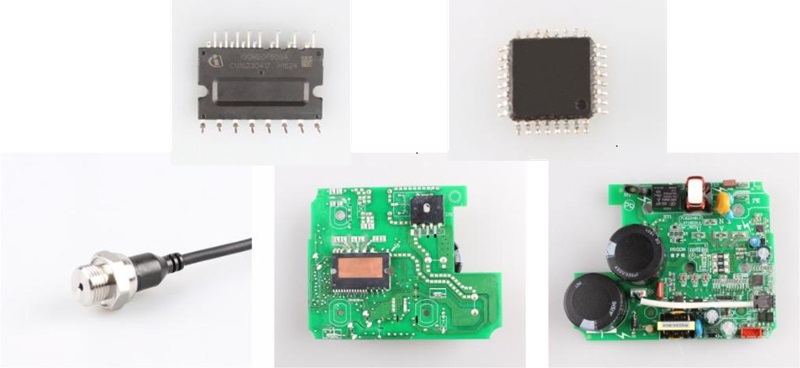

The controller powered by "Infineon"module,higher performance and much more stable.
Control program specially designed for water pump and had the copy right of software.
Electronic pressure transducer is used imported ceramic chip,no magnetic components,excellent pressure collection speed and longer service life.

B-3 Working Mode(3 in 1)

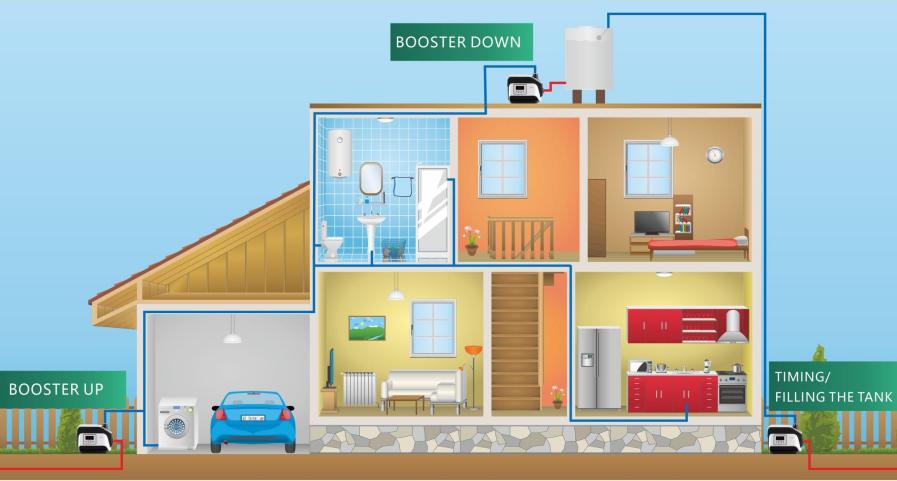

3 Working mode of pump

There are three working mode suitable for all domestic used.

BOOSTER UP/ BOOSTER DOWN / TIMING/FILLING THE TANK

You can choose the working mode and set your desired requirement on the control panel.Very Easy for setting and used.

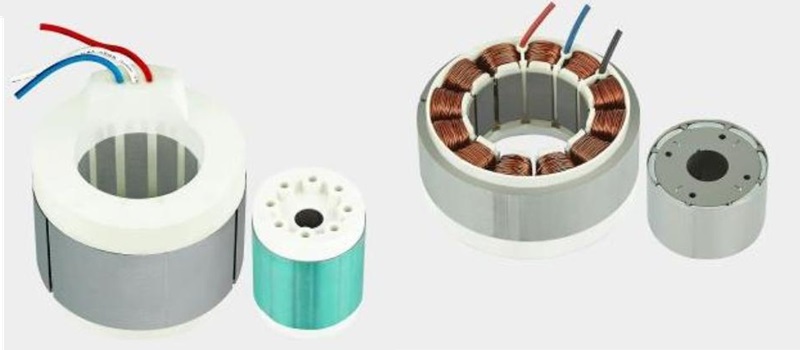

C-With Permanent magnet inverter motor

permanent magnet inverter motor of chm-z pump

High speed,high efficiency,low energy consumption Permanent magnet high speed motor,small size and high efficiency,energy conservation and environment protection.
With sealing stator and roto. The stator and rotor are processed by special sealing process.It avoid short circuit when the water leakage into motor.
It can soft start/stop, and reduces noise and protects equipment.
