Our DP series high pressure diaphragm pump is design by simple working condition, we use the high quality motor; with EPDM or FKM/VTION material membrane in the pump head, could be working work different liquid.
Voltage/Hz :
12V; 24V DCFlow :
12LPM/ 24V; 9.5L/12VCustomized Service :
Yes ( Color of pump; Logo; Unit box/ User manual )MOQ Order :
10PCSWarranty :
12 MonthsAbout this item:
Light weight and Portable: Easy to store and haul, this mini utility pump offers big value in a little package
Multipurpose: Perfect for transferring water from aquariums, washing machines, water beds, water heaters, clogged sinks, and more. Can be used home, garden, caravan, camper, marine.
Low power consumption: with 100% cooper wire motor and good bearing, the pump working stability and low noise
Products Features:
1.Easily fitted and removed;
2.Excellent self-suction capability;
3.Pump controlled automatically by built-in pressure switch;
4.Permissible liquid temperature up to 60C
5.Dry operation is permissible,self-suction height is 5m;
6.Low Noise, Excellent corrosion resistance, High pressure.

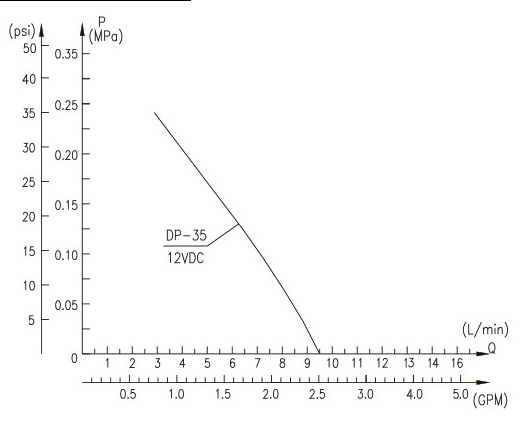

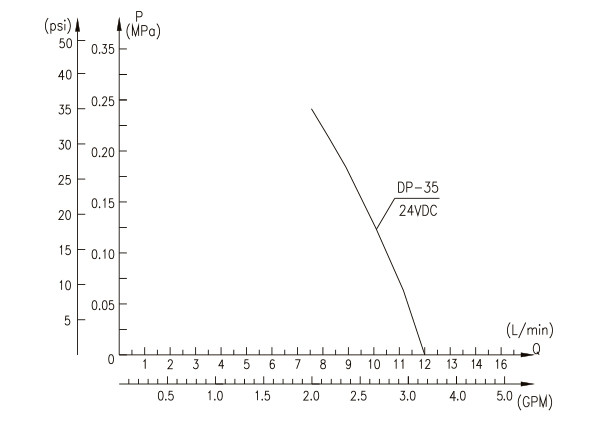

Technical Data:
| Model | Voltage(V) | Current(A) | Max Flow(GPM) | Max Flow(LPM) | Max. Pressure(PSI) | Max. Pressure(MPA) | Speed(RPM) | Suction(M) |
| DP-35 | 12 | 7 | 2.5 | 9.5 | 35 | 0.24 | 1300 | 5 |
| DP-35 | 24 | 4.8 | 3.2 | 12 | 35 | 0.24 | 1300 | 5 |
Dimension:
Usage:
The pump could be widely using for RV, Boat, Water supply and Irrigation
Packing Information:
| Unit N.W/ G.W | 2.9/ 3.3 KG |
| Unit Box Size | 23 x 10 x 12 cm |
| Master Carton Size | 51 x 24 x 24cm |
| Qty/Carton | 10Pcs |
| Master Carton G.W | 33 KG |
