DDP series diaphragm pump adopts 12V Or 24V permanent DC electric machine, Customers are forbidden to use 220V power supply. If directly plug into 220V power supply. the electric machine will burn at once. If customers haven't systemic transformer equipment,you can purchase the applicable transformer in order to make the diaphragm pump operate normally.
Voltage/Hz :
12V; 24V DCFlow :
1.3 GPM/ 5LPMCustomized Service :
Yes ( Color of pump; Logo; Unit box/ User manual )MOQ Order :
10PCSWarranty :

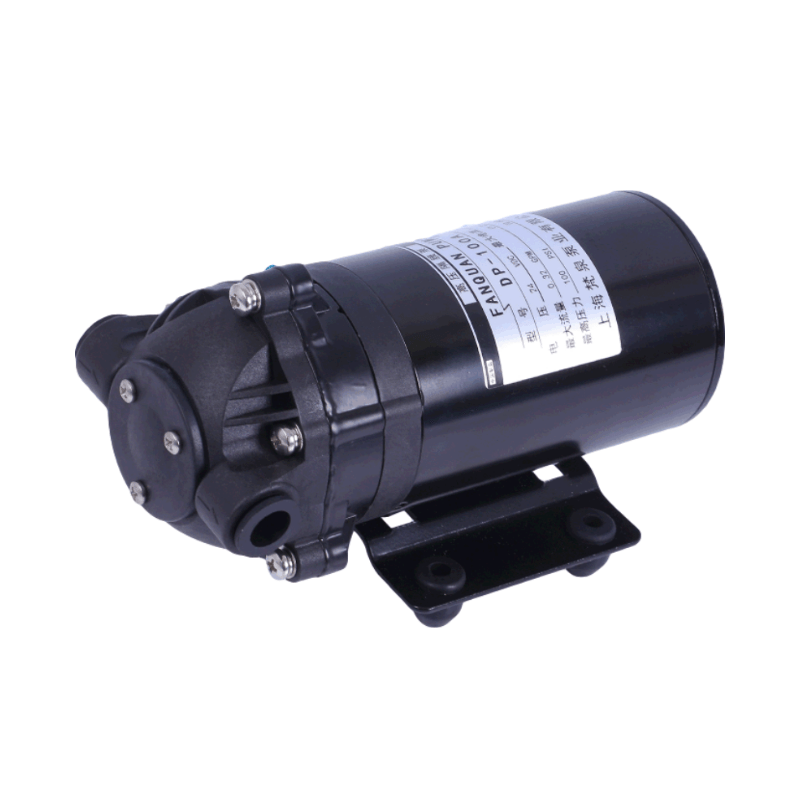

12 MonthsDP Series 3 Chamber 12v 24v High Pressure Diaphragm Pump

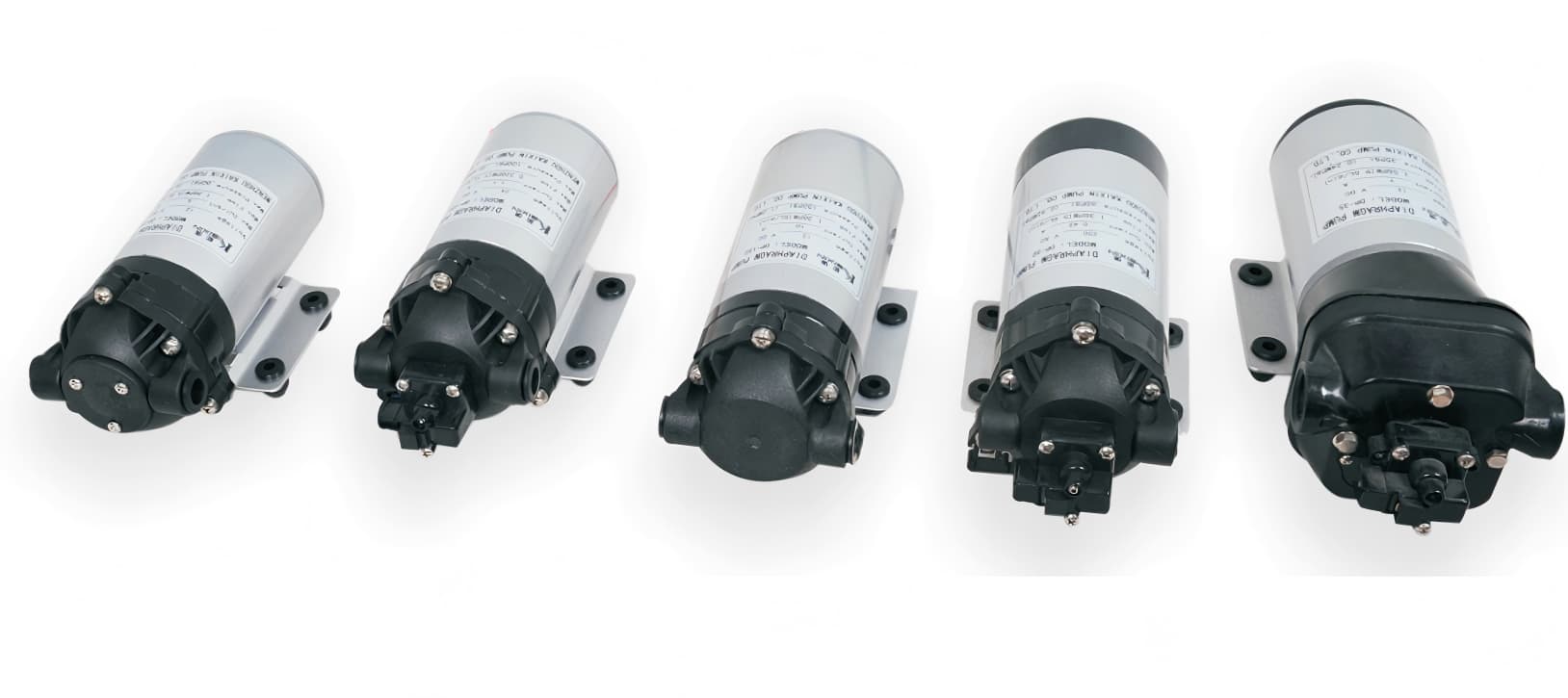

DP Series High pressure diaphragm Pump with 12V or 24V dc version, with 3 chamber diaphragm design, make the pumps working stable. The DP-60, DP-100, DP-125, DP-130, DP-150 pressure set from 60, 100, 125, 130, 150PSI on different flow rate. The DC pump could be customized the flow rate or pressure for special design.
Products Features:
Easily fitted and removed
Excellent self-suction capability
Low noise, excellent corrosion resistance
Pump controlled automatically by pressure switch
Medium liquid temperature up to 60 degree
Note: the pump can transport water, weak acid, alkali and salt etc liquid, but can’t transport liquid with grain gasoline and other inflammable liquid.
Technical Data:
|
Model |
Voltage (V) |
Current (A) |
Max Flow (GPM) |
Max Flow (LPM) |
Max. Pressure (PSI) |
Max. Pressure (MPA) |
Speed (RPM) |
Suction (M) |
|
DP-60 |
12 |
6.0 |
1.3 |
5 |
60 |
0.42 |
1200 |
5 |
|
DP-60 |
24 |
3.0 |
1.3 |
5 |
60 |
0.42 |
1200 |
5 |
|
DP-100 |
24 |
1.1 |
0.32 |
1.2 |
100 |
0.68 |
375 |
5 |
|
DP-125 |
24 |
1.0 |
0.26 |
1 |
125 |
0.86 |
375 |
5 |
|
DP-130 |
12 |
2.2 |
0.45 |
1.7 |
130 |
0.90 |
470 |
5 |
|
DP-130 |
24 |
1.2 |
0.45 |
1.7 |
130 |
0.90 |
470 |
5 |
|
DP-150 |
12 |
6.5 |
1.4 |
5.3 |
150 |
1.00 |
1200 |
5 |
|
DP-150 |
24 |
4.0 |
1.4 |
5.3 |
150 |
1.00 |
1200 |
5 |

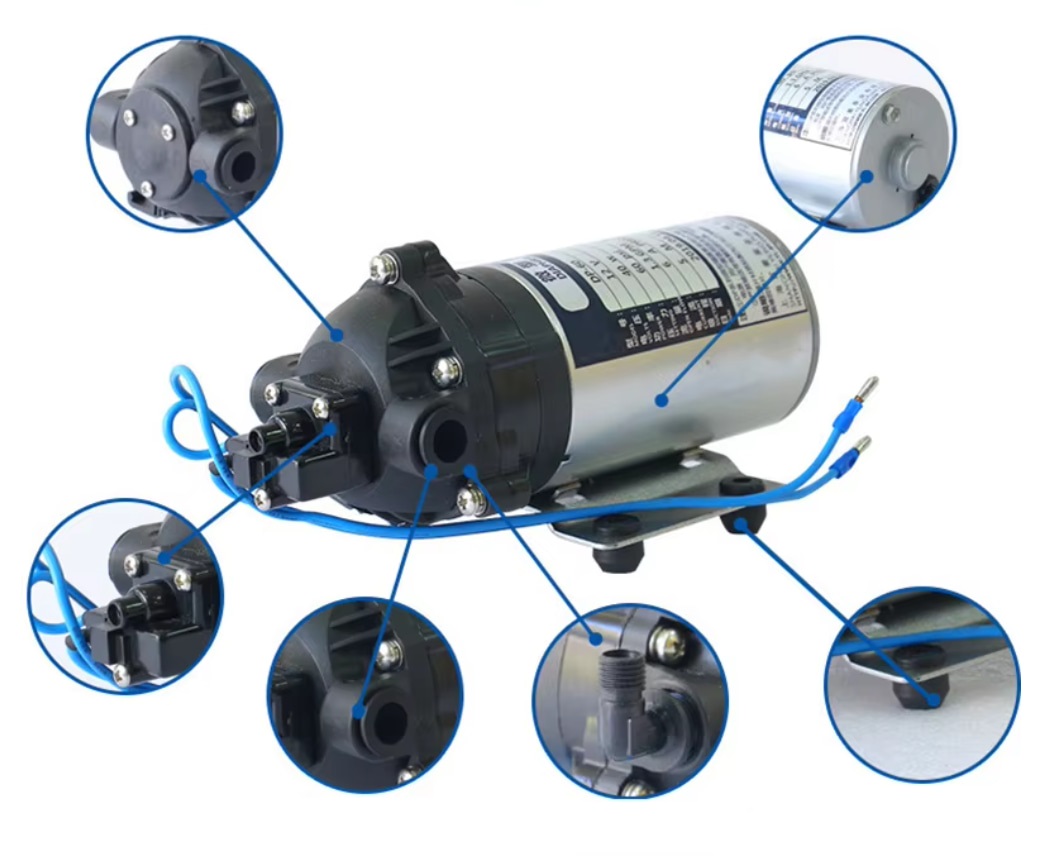

High Quality Material :
. The pump's head by Casting Nylon 66 Glass fiber reinforce polpropylene
. Pure Cooper Wire Motor
. Standard Pressure Switch
. 3/8" inch Internal Thread
. 6-8mm PU high pressure tube connector
. Rubber Buffer

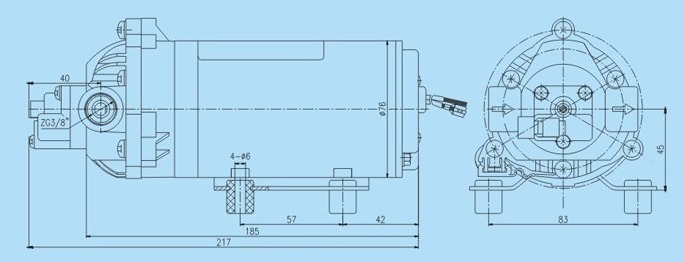

Dimension:
Usage:
The pump could be widely using for RV, Boat, Water supply and Irrigation
Packing Information:
| Unit N.W/ G.W | 2.9/ 3.1 KG |
| Unit Box Size | 23 x 10 x 12 cm |
| Master Carton Size | 51 x 24 x 24cm |
| Qty/Carton | 10Pcs |
| Master Carton G.W | 31 KG |
