The F42 Series 4 Chamber Water System Pressure Diaphragm Pump 55PSI AC 115V or 230V Booster pump is our general-duty on-demand positive displacement pump. It provides reliable performance in high water flow, moderate pressure applications. Designed by 4 stronger chambers, the water system pump could provides up flow from 3.0 to 5.5 GPM and is capable of self-priming up to 6 vertical feet, and can run dry without damage. Serves 3 or more 1/2” (13 mm) outlets.
Voltage/Hz :
115V/230V ACFlow :
3.0/ 4.0 / 4.5/ 5.0/ 5.5 GPMCustomized Service :
Yes ( Color of pump; Logo; Unit box/ User manual )Warranty :
12 MonthsAC 115V 230V 4 Chamber Water System Pressure Diaphragm Pump F42 Series
This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops when the faucet is opened and closed. They're easy to install, service and winterize.With 4 chamber diaphragm design, working by low noise level, we provide the 50Hz or 60Hz version by 115V or 230V AC; The constant pressure is 55psi by setting in our factory; it could be adjustable if necessary. the max pressure could be by 70psi which flow by 5.5GPM/ 20.8LPM. We also accept the OEM order with small quantity.
Technical Data:
| Model | Volt | GPM | LPM | (PSI/BAR) | N.W/G.W (KG) |
| F42-201-055 | 115V/230V | 3.0 | 11.3L/Min | 55/3.8 | 2.7/3.0 |
| F42-202-055 | 115V/230V | 4.0 | 15.0L/Min | 55/3.8 | 2.7/3.0 |
| F42-202-055-A | 115V/230V | 4.5 | 17.0L/Min | 55/3.8 | 2.7/3.0 |
| F42-203-055 | 115V/230V | 5.0 | 18.9L/Min | 55/3.8 | 2.7/3.0 |
| F42-204-070 | 115V/230V | 5.5 | 20.8L/Min | 70/4.8 | 2.7/3.0 |

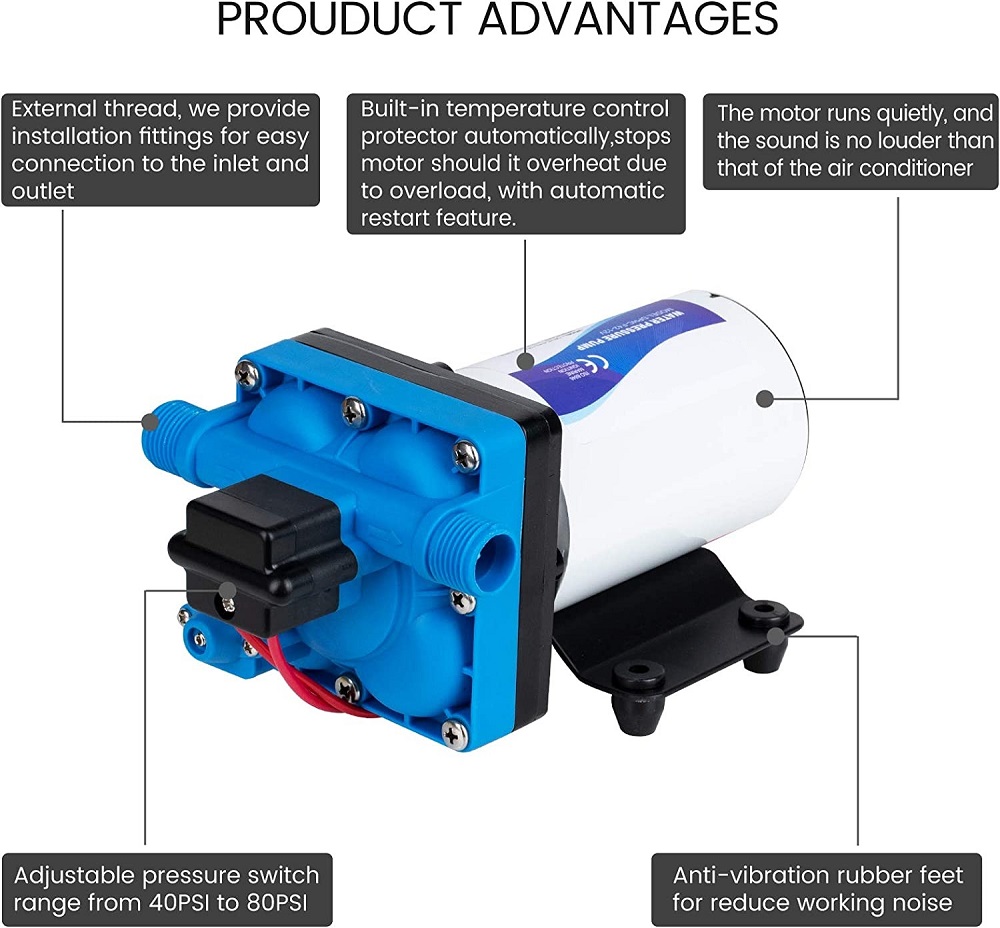

Products Features:
Continuous duty
Flow rate from 3.0 to 5.5GPM
Self priming
Run dry safe
Quiet operation
On-demand use
Industry Standard mounting pattern
Completely rubber mounting-base
Internal bypass technology reduces cycling
16 AWG, 9.4"(23.8 cm) long leads
1 Year Warranty

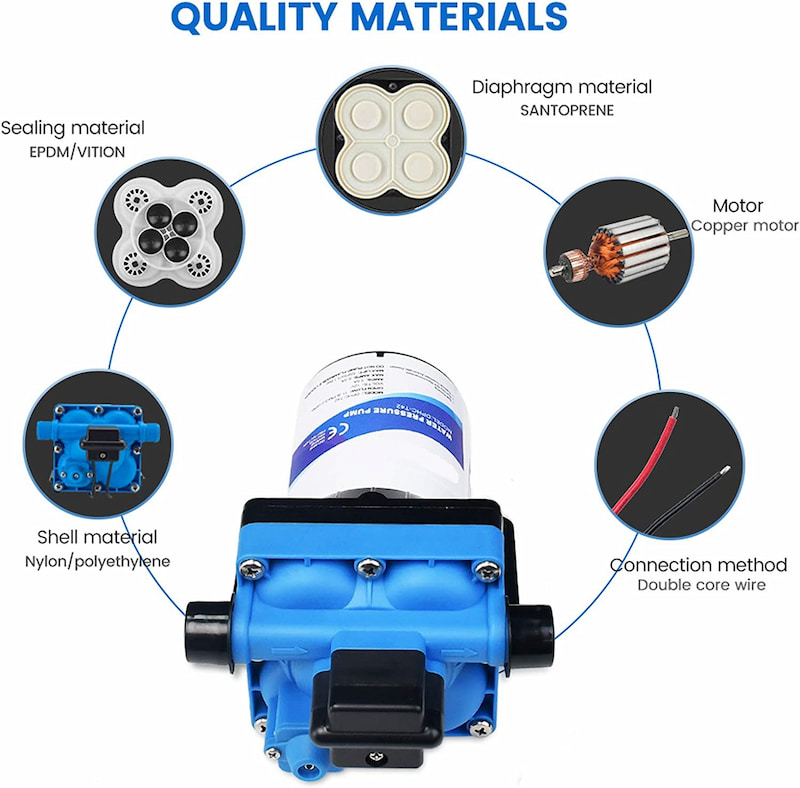

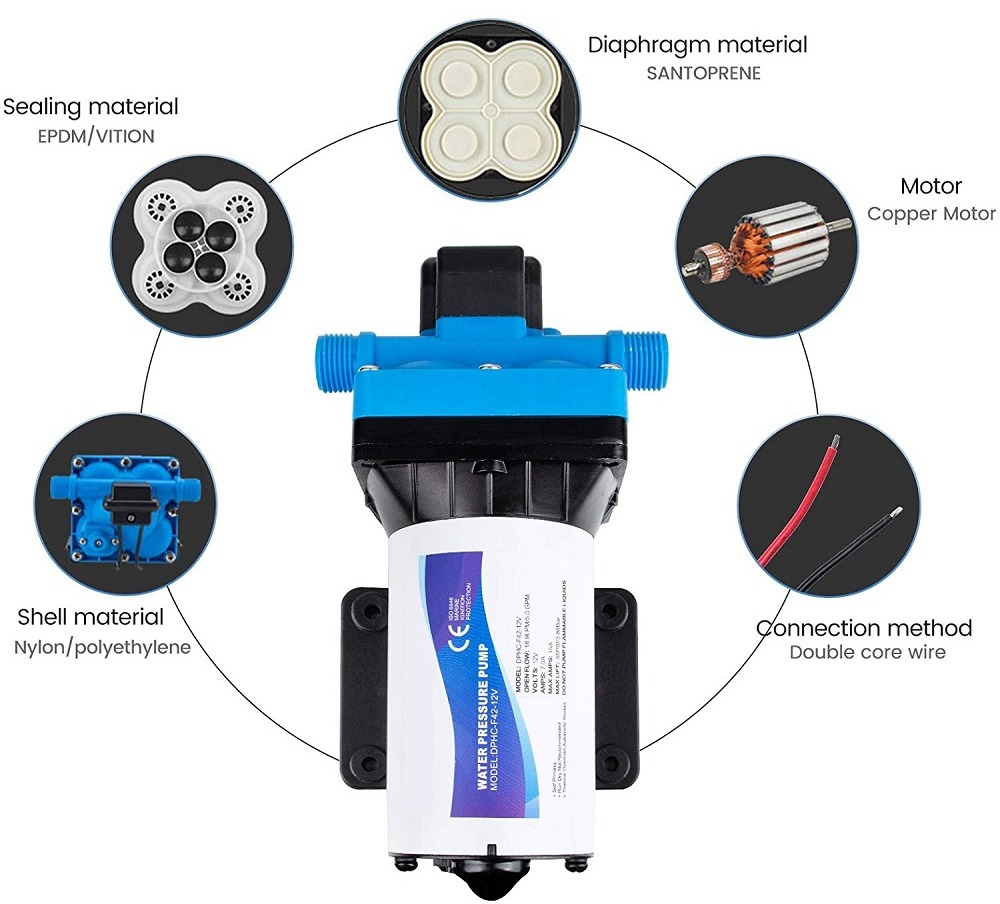

High Quality Spare Parts:
1, we use SANTOPRENE material for the dipahragm
2, Sealing material could be by EPDM or VITION
3, The diaphragm pump's shell by Nylon or Polyethylene
4, Full copper wirle motor
5, Standard US, UK, EU plug
Usage:
The pump could be widely using for RV, Boat, Water supply and Irrigation
Packing Information:
| Unit N.W/ G.W | 1.95 / 2.3 KG |
| Unit Box Size | 29.2 x 13.5 x 12.7 cm |
| Master Carton Size | 48*32.5*29 cm |
| Qty/Carton | 6 Pcs |
| Master Carton G.W | 13.9 KG |
