The DP-35 and DP-50 series DC diaphrgm water pump build with 4 small chamber diaphragm, the pump supply the low pressure with high flow 9.5lpm, 12Lpm and 16Lpm.Option by 12V or 24V,it can be using for Motorhome, Car Washing,Garden Watering, spraying for farm chemical, House Cleaning,Boat,Caravan,etc
Voltage/Hz :
12V; 24V DCFlow :
12LPM/ 24V; 9.5L/12VCustomized Service :
Yes ( Color of pump; Logo; Unit box/ User manual )MOQ Order :
10PCSWarranty :

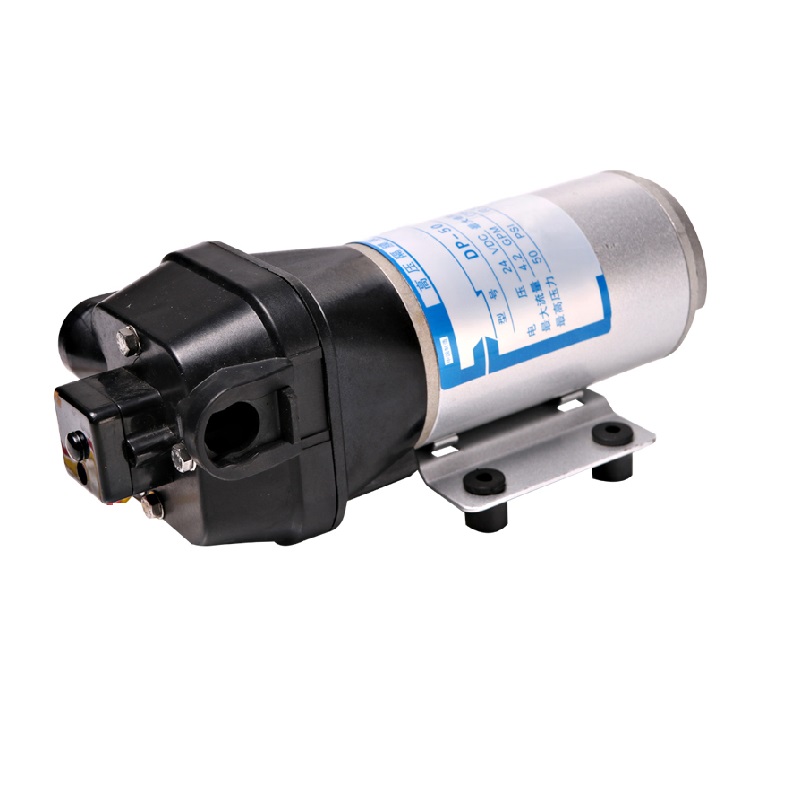

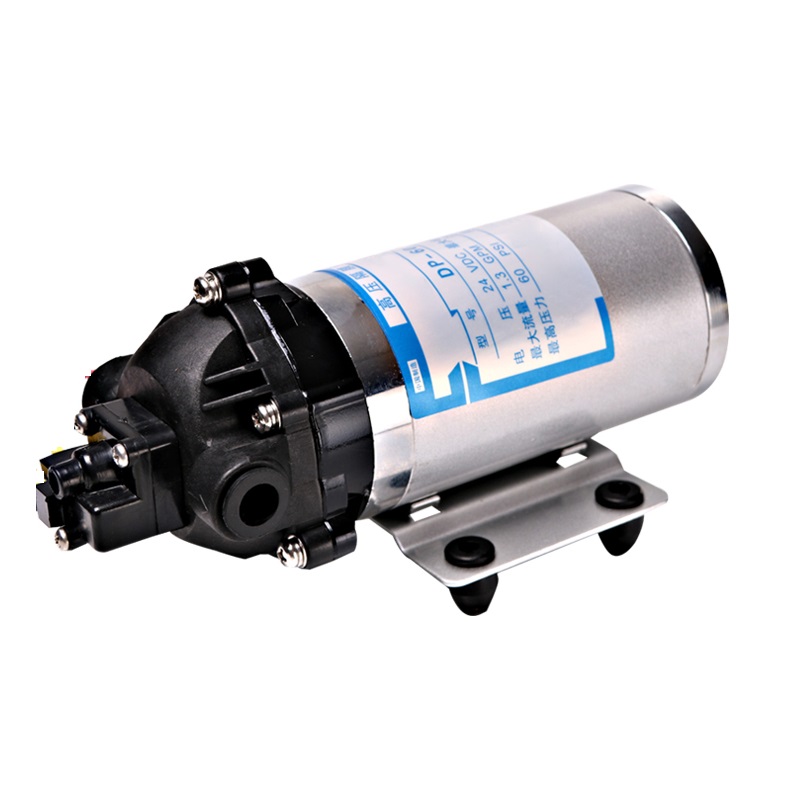

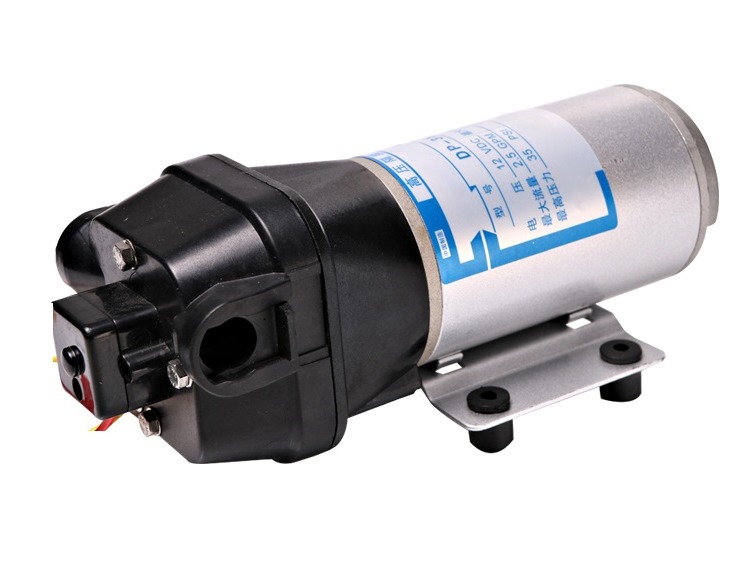

12 Months35Psi 50Psi High Flow Self-Priming DC Diaphragm Water Pump
To fiful our customer demand for the low pressure pump with high flow, the DP35 DP50 Series high pressure diaphragm pump is design by simple working condition, we use the high quality motor; with EPDM or FKM/VTION material membrane in the pump head, could be working work different liquid.Companies adhere to offering the high quality and safety value products, full range service to our partner; We believe our products is good choice in the homegrown,high quality and inexpensive
Technical Data:
| Model | Voltage(V) | Current(A) | Max Flow(GPM) | Max Flow(LPM) | Max. Pressure(PSI) | Max. Pressure(MPA) | Speed(RPM) | Suction(M) |
| DP-35 | 12 | 7 | 2.5 | 9.5 | 35 | 0.24 | 1200 |
5
|
| DP-35 | 24 | 4.8 | 3.2 | 12 | 35 | 0.24 | 1300 |
5 |
|
DP-50 |
12 | 12 | 4.2 | 16 |
50 |
0.35 | 1500 | 5 |
| DP-50 | 24 | 6 | 4.2 | 16 | 50 | 0.35 | 1800 |
5
|
Products Features:
1.Easily fitted and removed;
2.Excellent self-suction capability;
3.Pump controlled automatically by built-in pressure switch;
4.Permissible liquid temperature up to 60C
5.Dry operation is permissible,self-suction height is 5m;
6.Low Noise, Excellent corrosion resistance, High pressure.

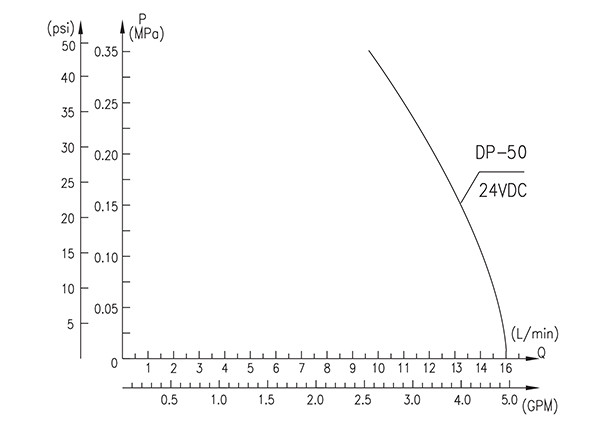

Performance Curve:

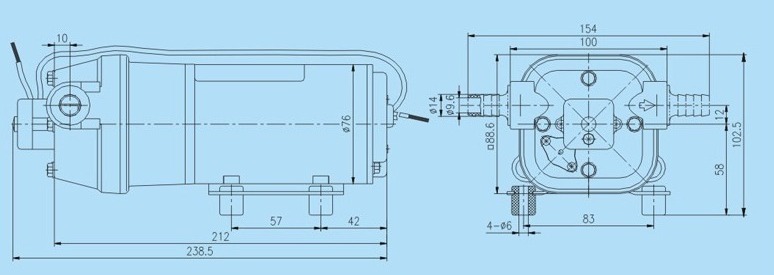

Dimension:
Usage:
The pump could be widely using for RV, Boat, Water supply and Irrigation
Packing Information:
| Unit N.W/ G.W | 2.9/ 3.3 KG |
| Unit Box Size | 23 x 10 x 12 cm |
| Master Carton Size | 51 x 24 x 24cm |
| Qty/Carton | 10Pcs |
| Master Carton G.W | 33 KG |
