The F42 DC 12V or 24V Booster pump is our general-duty on-demand positive displacement pump. It provides reliable performance in high water flow, moderate pressure applications. Designed by 4 stronger chambers, the pump could provides up flow from 2.0 to 5.5 GPM and is capable of self-priming up to 6 vertical feet, and can run dry without damage. Serves 3 or more 1/2” (13 mm) outlets.This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops when the faucet is opened and closed. They're easy to install, service and winterize.
Voltage/Hz :
12V; 24V DCFlow :
2.0/ 3.0/ 3.3/ 3.5/ 4.0 / 4.5/ 5.0/ 5.5 GPMCustomized Service :
Yes ( Color of pump; Logo; Unit box/ User manual )Warranty :
12 MonthsDC 12V 24V 55PSI High Flow 4 Chamber Diaphragm Water Pressure Pump
Products Features:
With self-prriming function and continuous duty
Constant flow rate from 2.0 to 5.5GPM
Setting pressure by 55PSI, up to 70Psi.
Run dry safe proection
Quiet operation with low noise
Industry Standard mounting pattern, with completely rubber mounting-base
Internal bypass technology reduces cycling.
16 AWG, 9.4"(23.8 cm) long leads
Quality warranty: 1 Year
Technical Data:
|
Model |
Volt |
GPM |
LPM |
(PSI/BAR) |
N.W/G.W (KG) |
|
F42-100-055 |
12V/24V |
2.0 |
7.6L/Min |
35/2.4 |
2.0/2.3 |
|
F42-101-055 |
12V/24V |
3.0 |
11.3L/Min |
55/3.8 |
2. 1/2.4 |
|
F42-101-055-A |
12V/24V |
3.3 |
12.5L/Min |
55/3.8 |
2. 1/2.4 |
|
F42-101-055-B |
12V/24V |
3.5 |
13.5L/Min |
55/3.8 |
2. 1/2.4 |
|
F42-102-055 |
12V/24V |
4.0 |
15.0L/Min |
55/3.8 |
2.6/2.9 |
|
F42-102-055-A |
12V/24V |
4.5 |
17.0L/Min |
55/3.8 |
2.6/2.9 |
|
F42-103-055 |
12V/24V |
5.0 |
18.9L/Min |
55/3.8 |
2.6/2.9 |
|
F42-104-070 |
12V/24V |
5.5 |
20.8L/Min |
70/4.8 |
2.6/2.9 |

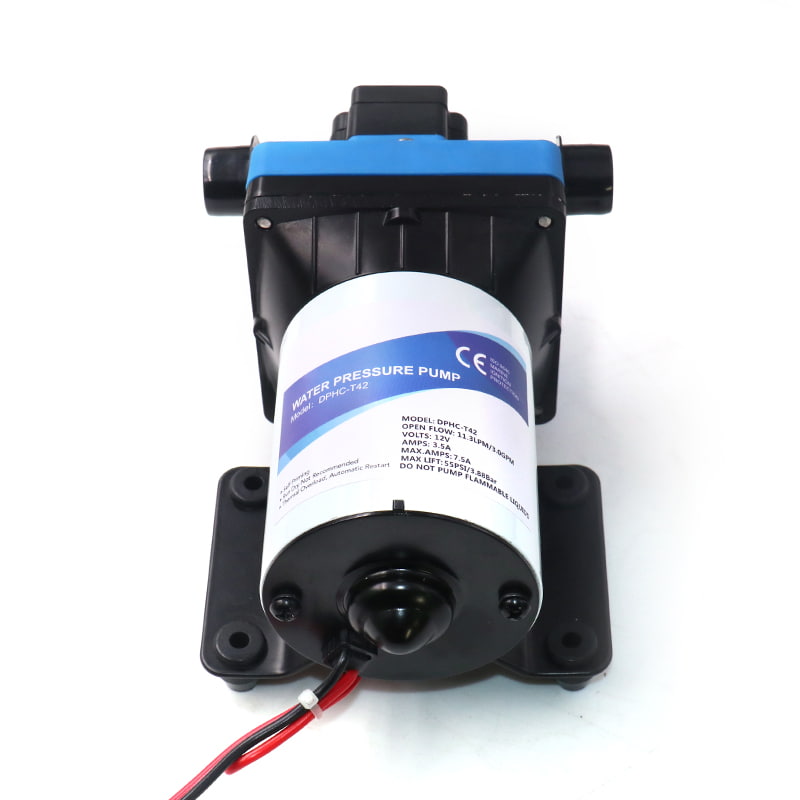

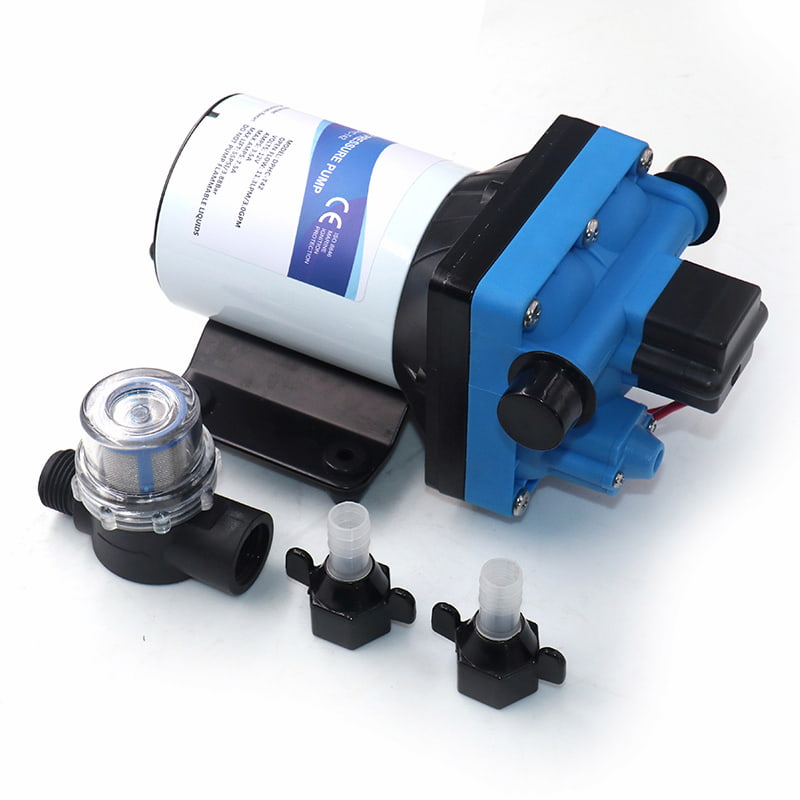

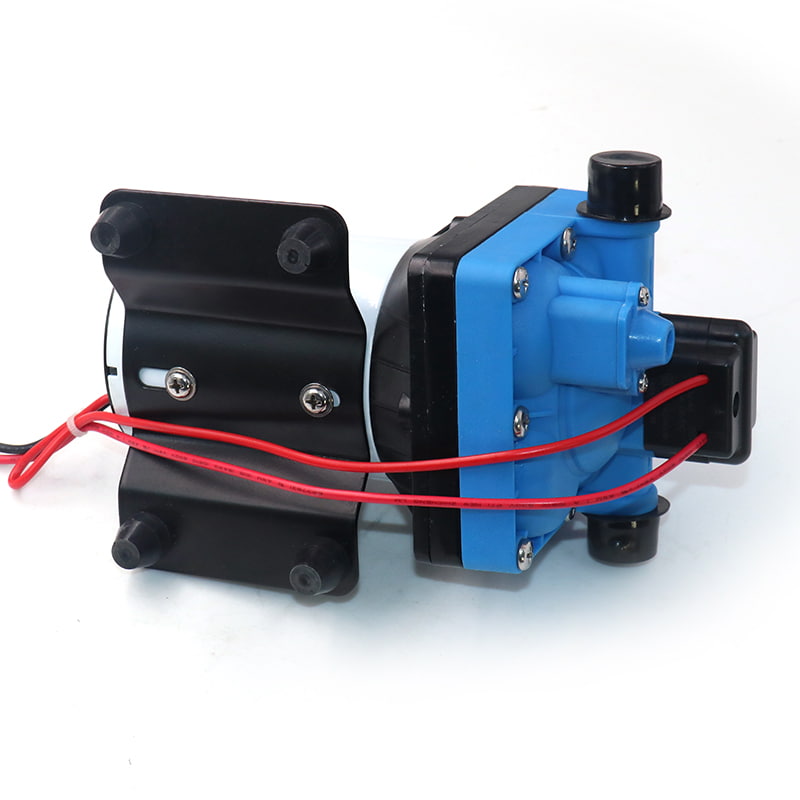

Products Display:

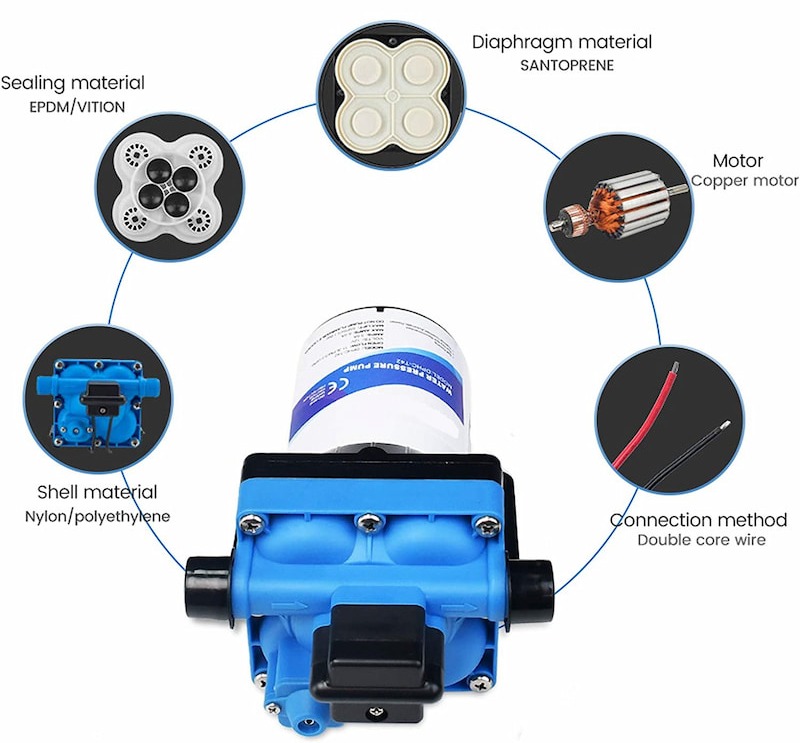

High Quality Material:
. EPDM/VITION for sealing
. SANTOPRENE for diaphragm
. Nylon / Polyethlene for shell of pump
. Pure cooper wire motor
. Double core copper wire for connection

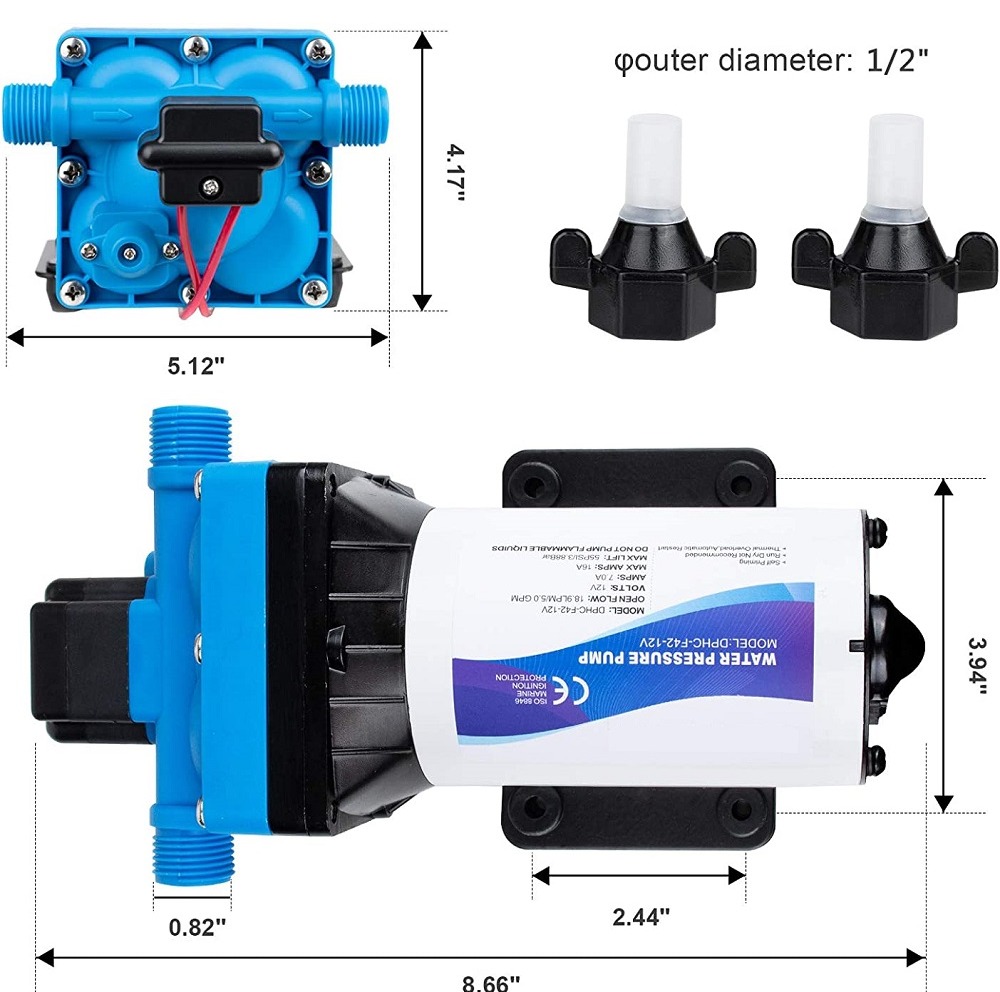

Dimension:

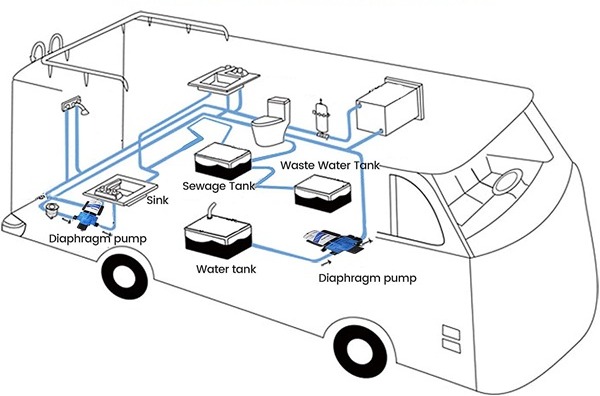

Usage:
The pump could be widely using for RV, Boat, Water supply and Irrigation

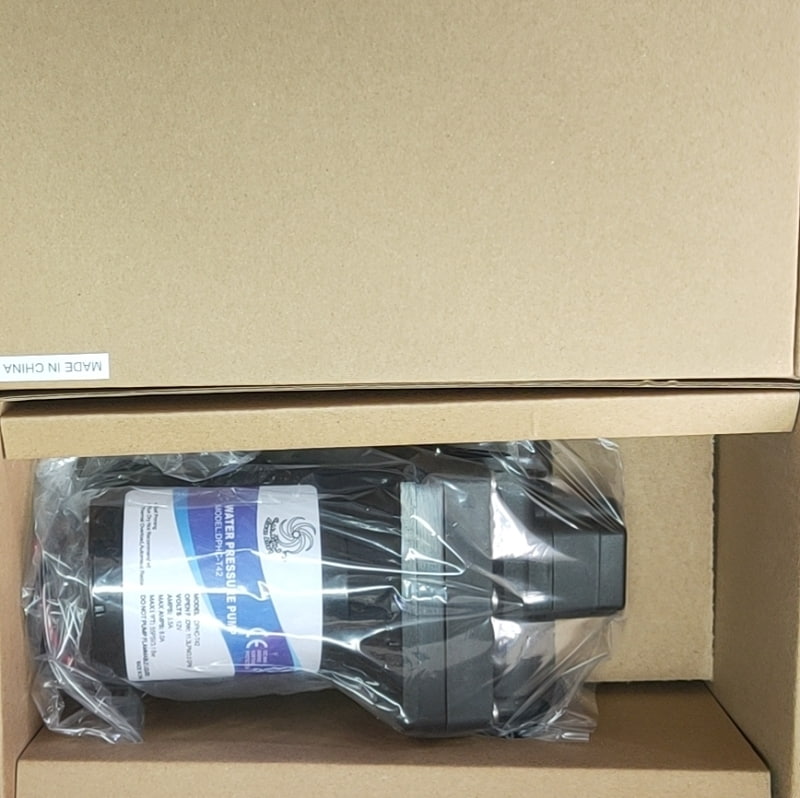

Packing Information:
| Unit N.W/ G.W | 1.95 / 2.3 KG |
| Unit Box Size | 29.2 x 13.5 x 12.7 cm |
| Master Carton Size | 48*32.5*29 cm |
| Qty/Carton | 6 Pcs |
| Master Carton G.W | 13.9 KG |
