The 115V or 230V AC F33-Series is our general-duty on-demand positive displacement pump.It provides reliable performance in high water flow, moderate pressure applications. This 3-chamber diaphragm pump provides up 2.0 to 4.0 gallons per minute and is capable of self-priming up to 6 vertical feet, and can run dry without damage.
Voltage/Hz :
115V; 230V ACFlow :
2.0/ 2.8/ 3.0/ 3.3/ 3.5/ 4.0 GPMCustomized Service :
Yes ( Color of pump; Logo; Unit box/ User manual )Warranty :
12 MonthsF33 AC 115V 230V RV Self-Priming Diaphragm Booster Water Circulating Transfer Pump
The AC verison 115V or 230V Self-priming diaphragm pump is designed for the AV electric source, like home, garden, water supply or agricultural Irrigation. The constant flow rate from 2.0-4.0 with 3 chamber diaphragm pump's head, working low noise, and long life. We also accept the OEM customized order, like color, sticker, nameplate, and unit box.
Technical Data:
|
Model |
Volt |
GPM |
LPM |
(PSI/BAR) |
N.W/G.W (KG) |
|
F33-201-045 |
115V/230V |
2.8 |
10.6 L/Min |
45/3. 1 |
2.4/2.7 |
|
F33-202-045 |
115V/230V |
3.0 |
11.6 L/Min |
45/3. 1 |
2.4/2.7 |
|
F33-202-045-A |
115V/230V |
3.3 |
12.5 L/Min |
45/3. 1 |
2.4/2.7 |
|
F33-202-045-B |
115V/230V |
3.5 |
13.5 L/Min |
45/3. 1 |
2.4/2.7 |
|
F33-203-045 |
115V/230V |
4.0 |
15.0 L/Min |
45/3. 1 |
2.4/2.7 |
Products Features:
1. The water system pump capable of supplying 2-3 fixtures
2. Constant flow rate could be customized from 2.0 to 4.0 GPM
3. Self priming
4. On-demand use
5. Industry Standard mounting pattern
6. Completely rubber mounting-base
7. Adjustable pressure switch
8. 16 AWG, 4.5"(11.4 cm) long Leads

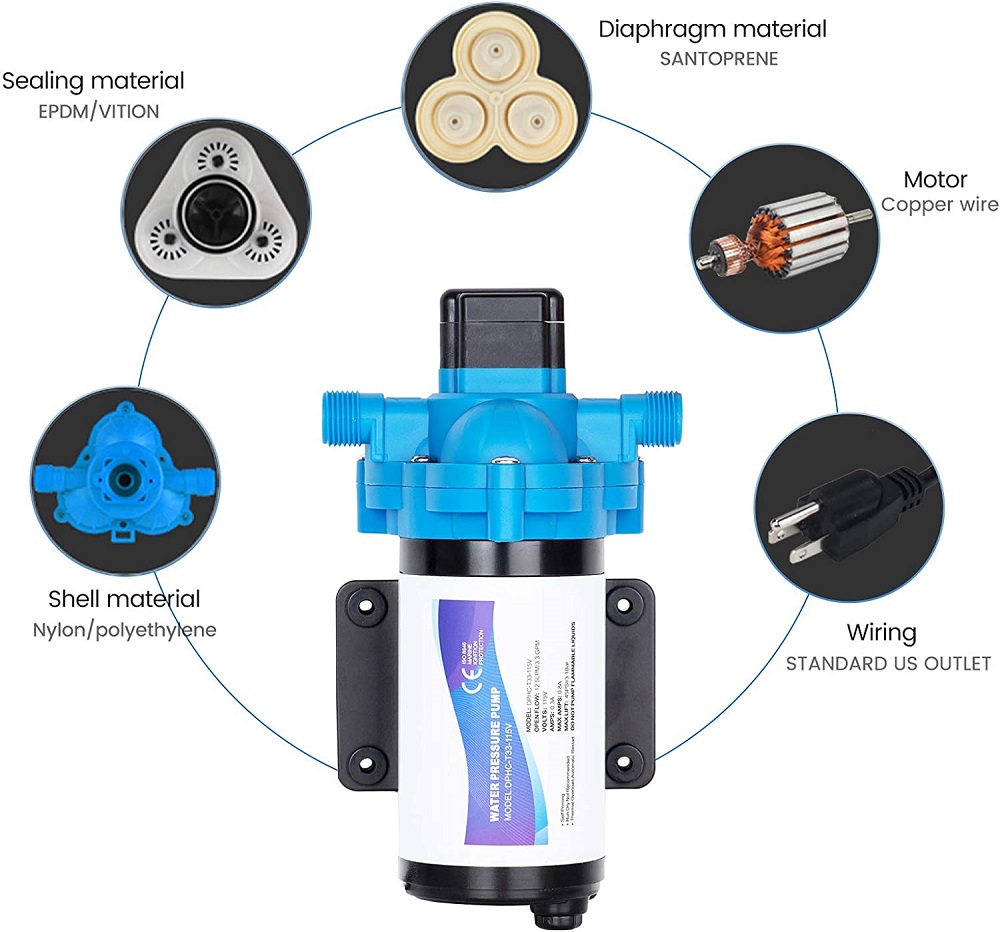

High Quality Spare Parts:
1, we use SANTOPRENE material for the dipahragm
2, Sealing material could be by EPDM or VITION
3, The diaphragm pump's shell by Nylon or Polyethylene
4, Full copper wirle motor
5, Standard US, UK, EU plug
Dimension:
Usage:
The pump could be widely using for RV, Boat, Water supply and Irrigation
Packing Information:
| Unit N.W/ G.W | 2.4 / 2.7KG |
| Unit Box Size | 29.9*14.6*12.8 cm |
| Master Carton Size | 45*32.5*29 cm |
| Master Carton G.W16.5 | 16.5KG |
