The F42 DC 12V or 24V Booster pump is our general-duty on-demand positive displacement pump. It provides reliable performance in high water flow, moderate pressure applications.
Designed by 4 stronger chambers, the pump could provides up flow from 2.0 to 5.5 GPM and is capable of self-priming up to 6 vertical feet, and can run dry without damage. Serves 3 or more 1/2” (13 mm) outlets.
This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops when the faucet is opened and closed. They're easy to install, service and winterize.
Voltage/Hz :
12V; 24V DCFlow :
2.0/ 3.0/ 3.3/ 3.5/ 4.0 / 4.5/ 5.0/ 5.5 GPMCustomized Service :
Yes ( Color of pump; Logo; Unit box/ User manual )Warranty :
12 MonthsProducts Features:
Continuous duty
Flow rate from 2.0 to 5.5GPM
Self priming
Run dry safe
Quiet operation
On-demand use
Industry Standard mounting pattern
Completely rubber mounting-base
Internal bypass technology reduces cycling
16 AWG, 9.4"(23.8 cm) long leads
1 Year Warranty
Technical Data:
|
Model |
Volt |
GPM |
LPM |
(PSI/BAR) |
N.W/G.W (KG) |
|
F42-100-055 |
12V/24V |
2.0 |
7.6L/Min |
35/2.4 |
2.0/2.3 |
|
F42-101-055 |
12V/24V |
3.0 |
11.3L/Min |
55/3.8 |
2. 1/2.4 |
|
F42-101-055-A |
12V/24V |
3.3 |
12.5L/Min |
55/3.8 |
2. 1/2.4 |
|
F42-101-055-B |
12V/24V |
3.5 |
13.5L/Min |
55/3.8 |
2. 1/2.4 |
|
F42-102-055 |
12V/24V |
4.0 |
15.0L/Min |
55/3.8 |
2.6/2.9 |
|
F42-102-055-A |
12V/24V |
4.5 |
17.0L/Min |
55/3.8 |
2.6/2.9 |
|
F42-103-055 |
12V/24V |
5.0 |
18.9L/Min |
55/3.8 |
2.6/2.9 |
|
F42-104-070 |
12V/24V |
5.5 |
20.8L/Min |
70/4.8 |
2.6/2.9 |

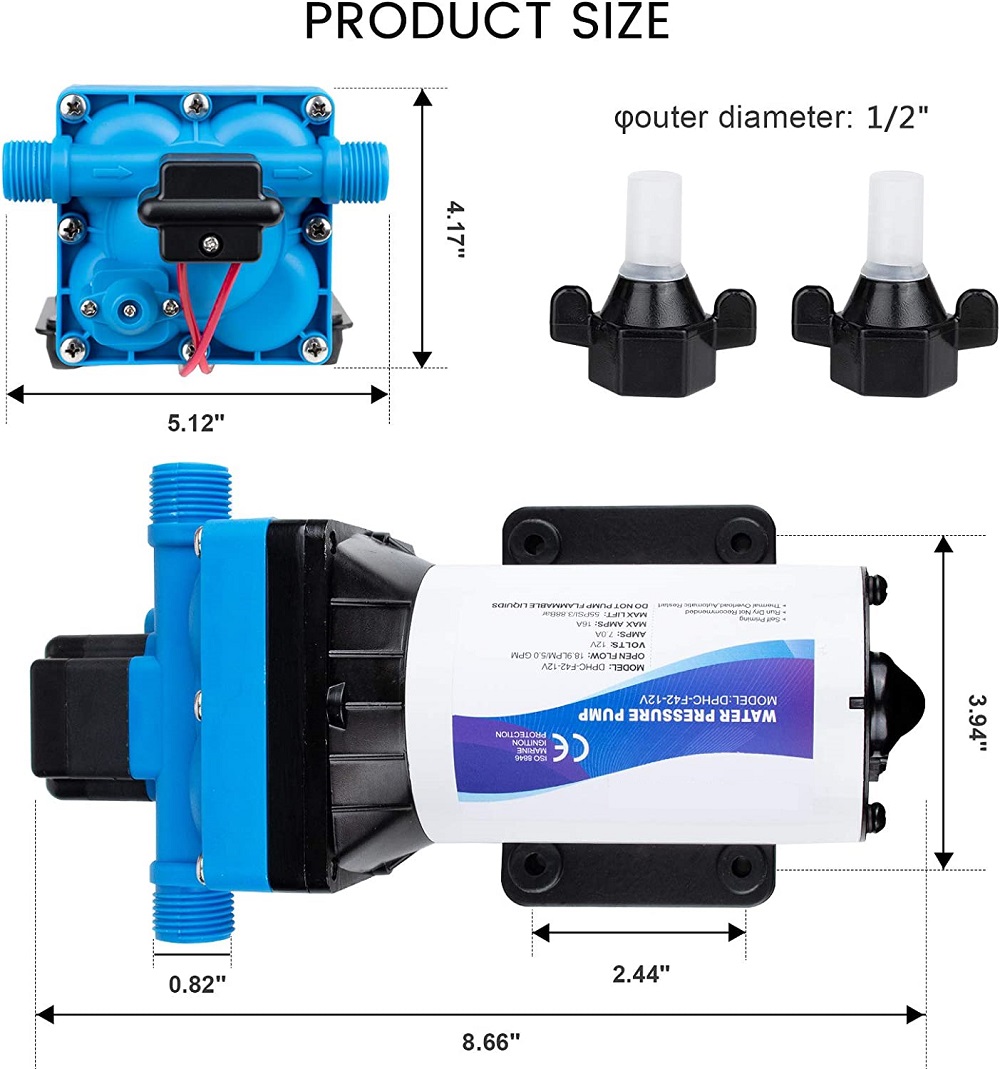

Dimension:
Usage:

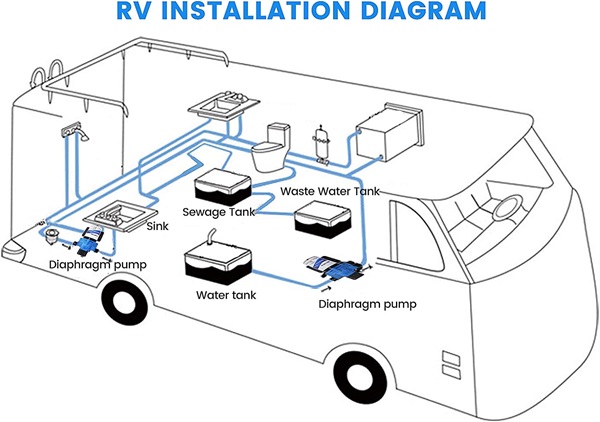

The pump could be widely using for RV, Boat, Water supply and Irrigation
Packing Information:
| Unit N.W/ G.W | 1.95 / 2.3 KG |
| Unit Box Size | 29.2 x 13.5 x 12.7 cm |
| Master Carton Size | 48*32.5*29 cm |
| Qty/Carton | 6 Pcs |
| Master Carton G.W | 13.9 KG |
