The BW4000 series Bottled Water System Plus is also designed for convenience — the pump shuts off when the water source is depleted, and when water is restored, the pump will automatically restart. This eliminates the chance of any damage to the pump and control box from running dry.
Model :
BW4000AVoltage/Hz :
110-240V; 50/60HZPressure :
40PSICustomized Service :
YES, Logo/User manual/ Unit boxMOQ Order :
10pcsLead Time :
15 DaysWarranty :
12 MonthsProduct Features

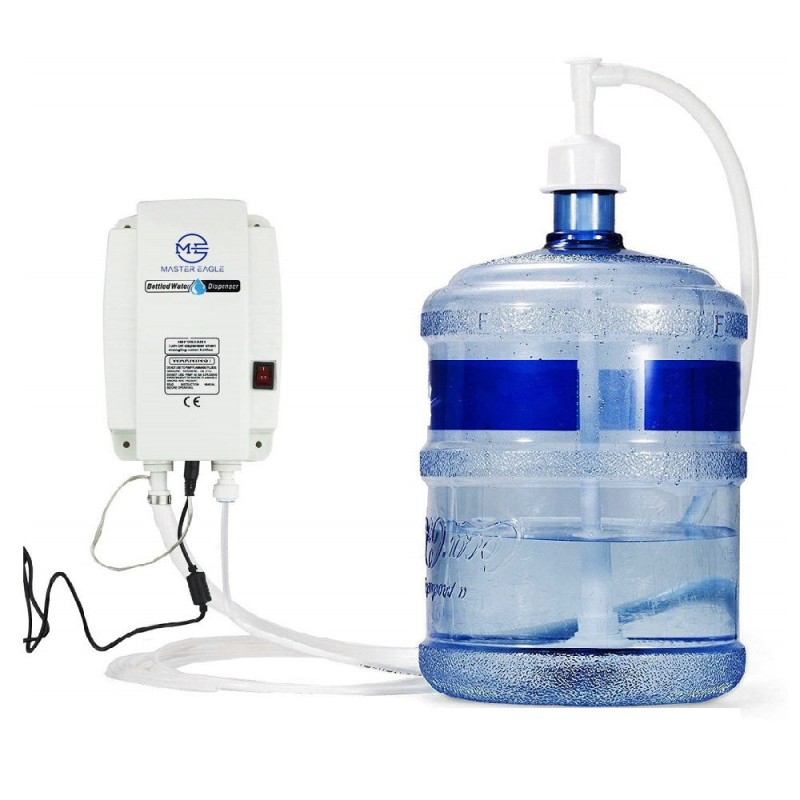

The BW4000 series is the second generation of water dispesnging system, which is applicable for 5 gallon water bottle, working as ideal fresh water dispenser pump for refrigerator, ice maker, espresso machine and counter top faucet (this item is not including a faucet).
The automatic design dispensing system provides 2.8bar (40 PSI) strong suction and 1 GPM (3.78LPM) high flow. Dry pumping protection: Automatic shut off when water drains, restart when bottle refilled. Muffle working.
The system with Runs dry without damage,extending the life of the pump; the long life motor ensures years of reliable operation.
The BW4000 water dispensing pump with 110-230V AC Adapter, working by 50 or 60Hz
The standard UK, EU, US Plug will be providing according different market.

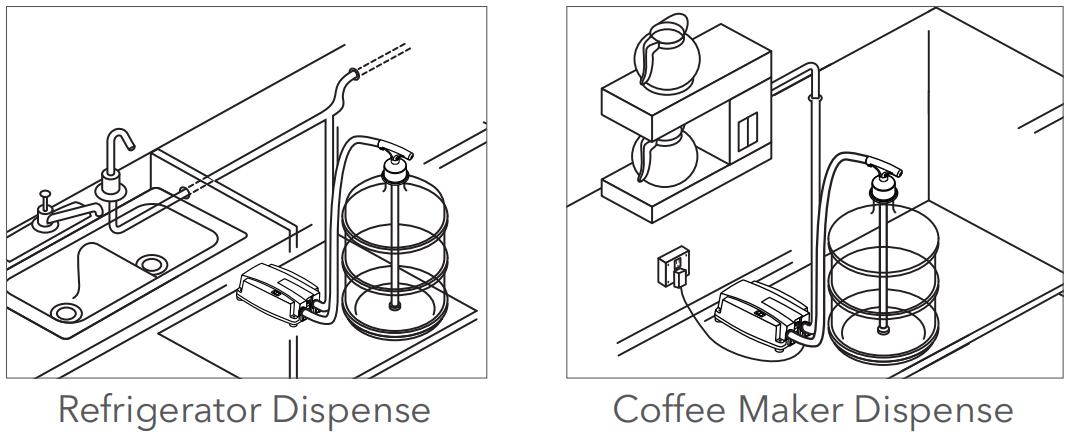

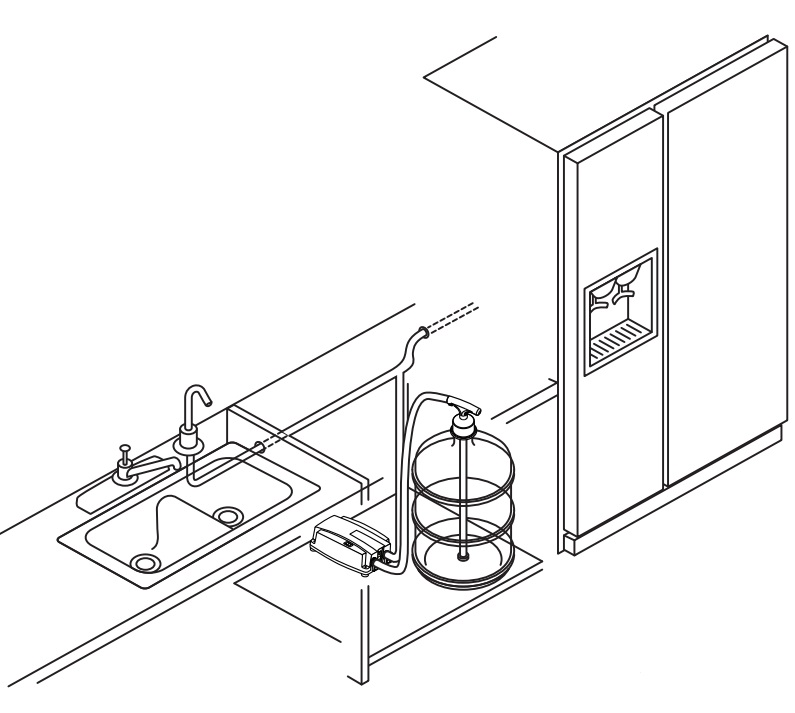

Application & Installation
The BW4000 pump with quick disconnect ports allows for easy wand replacement in seconds. It can be widely Suitable for American refrigerators or other refrigerators with ice making function

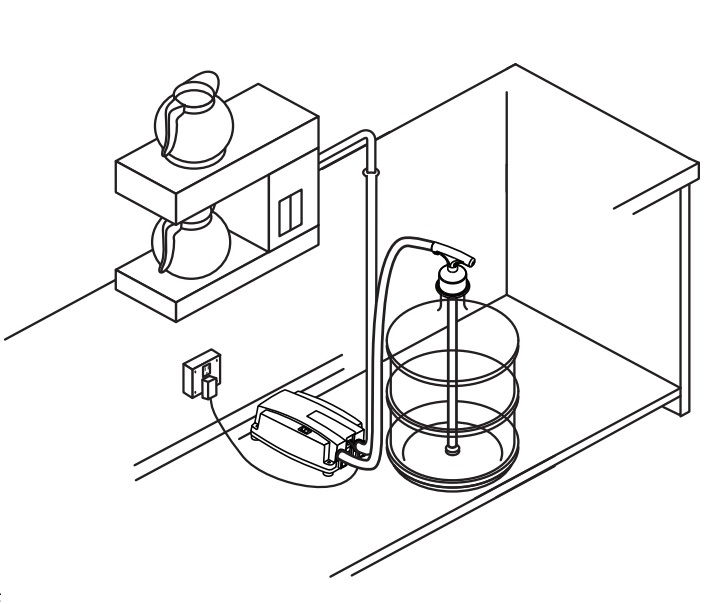

The BW4000 also suitable for the Coffee cart/Mahcine, Coffee dispenser/ Beverage System, Drinking Water supply. It can be easy installed under the working table, With the automatic floating sensor, to detects the water in the bucket in real time. Control the water supply by faucet or switch of beverage machine.
Notice:
1,Please fill water in the pump manually after long time unused to restart the pump. Please check when the pump not working.
2,If you've received a new pump with water in, it's normally because of pumping test instead of stain of use. As we tested every product before sales.

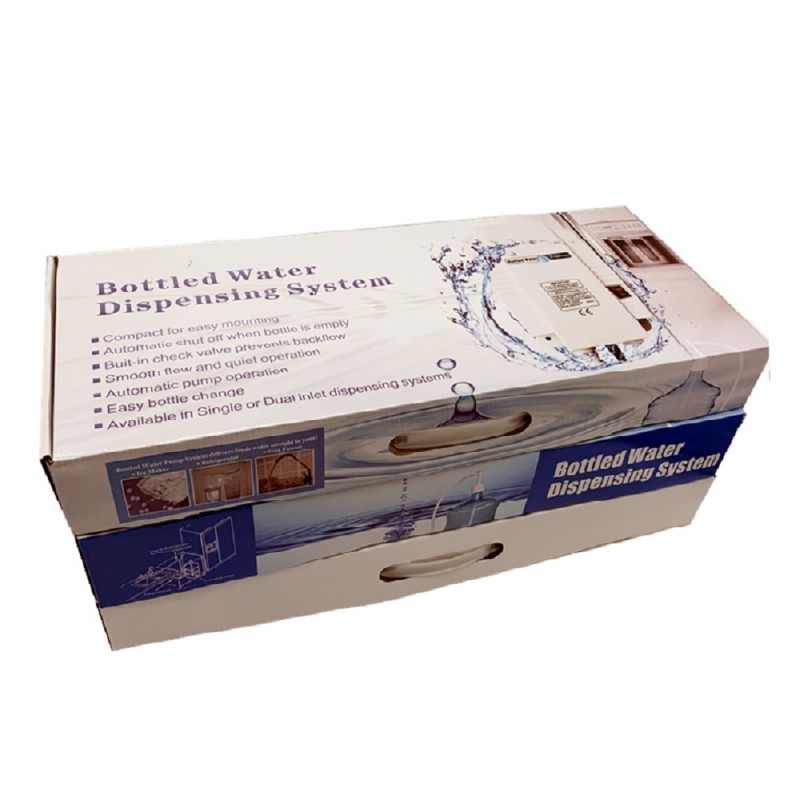

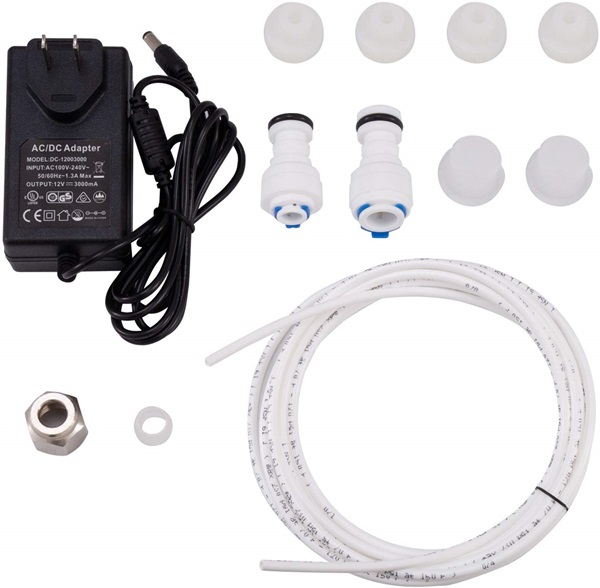

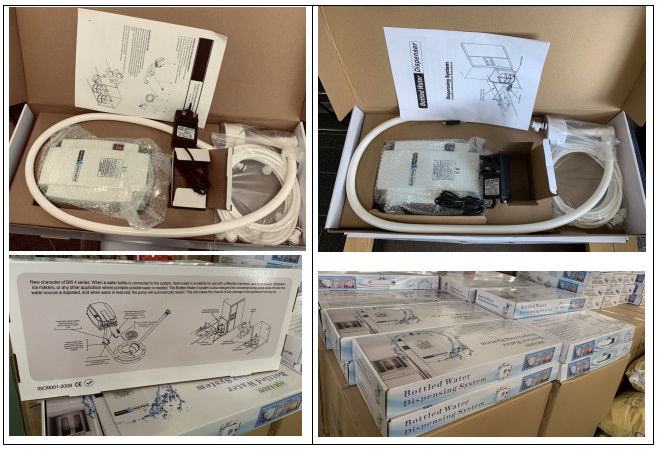

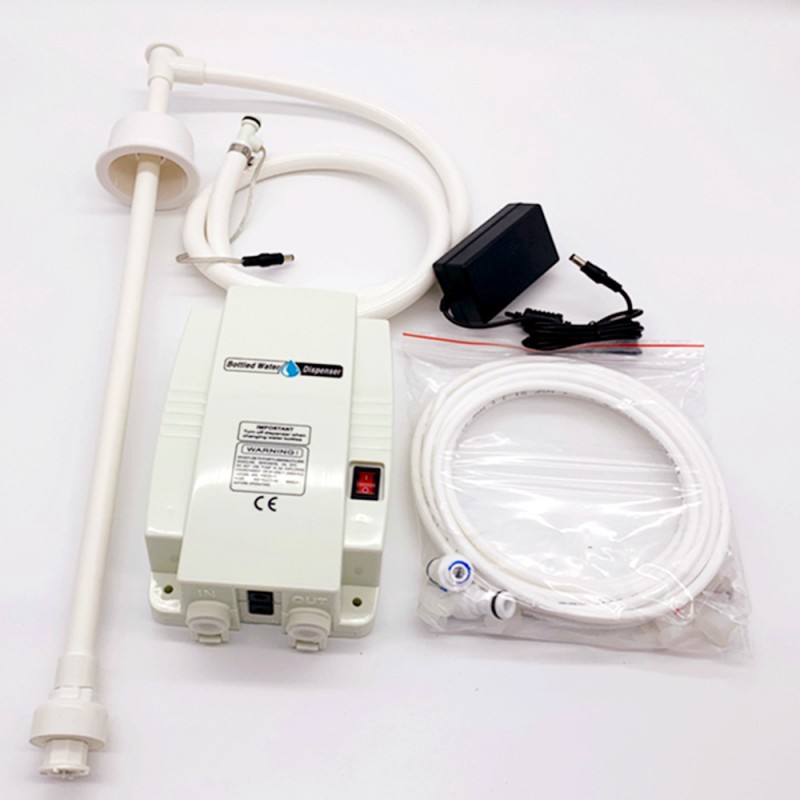

Products Photos:
Specification:
|
Model |
Flow Rate |
Max Pressure |
Voltages |
Cycle |
Amp Draw |
Type of Plug |
|
BW4000 |
1.0GPM/3.8LPM |
40 PSI/2..8 bar |
115~230VAC |
50~60Hz |
0.25A |
AC adapter with US Plug |
|
BW4002 |
1.0GPM/3.8LPM |
40 PSI/2..8 bar |
115~230VAC |
50~60Hz |
0.25A |
AC adapter with AU Plug |
|
BW4003 |
1.0GPM/3.8LPM |
40 PSI/2..8 bar |
115~230VAC |
50~60Hz |
0.25A |
AC adapter with UK Plug |
|
BW4004 |
1.0GPM/3.8LPM |
40 PSI/2..8 bar |
115~230VAC |
50~60Hz |
0.25A |
AC adapter with EU Plug |
Our Certificates
Frequently Asked Questions
Q1: Is the BW4000 water dispensing system easy to install?
A1: Yes, with quick disconnect ports allows for easy wand replacement in seconds
Q2: What is the quality warranty for this products?
A2: We provide 12M / 1 Year warranty, if you face the quality fault or defect, we will offer the free unit as compersation
Q3: What is different between BW4000 and BW5000?
A3: The BW4000 is 2nd generation, with bigger dimension than BW5000; higher flow rate design with higher noise level
The BW5000 is 3rd newest generation; which with small dimension; lower flow rate, and more quite working noise level.
Q4: What are the available working modes?
A4: It can be continue working or Intermittent working; deponds on the equipment usage.
Q5: How often does the pump need maintenance?
A5: Usually it is not need maintenance; but if the device do not use long time, please check if any air in the suction pipe; using one blow gun to clean the remain water/air inside of products.
