Master Eagle BW4020A Dual Inlet Bottled Water System Dispensing System Plus

Product Features

 1. Suitable for 2 *  5 Gallon Bottle Water，Separated Design

The BW4020 series is the second generation of water dispesnging system, can accommodate two standard 5-gallon bucket, working as ideal fresh water dispenser pump for refrigerator, ice maker, espresso machine and counter top faucet (this item is not including a faucet).

 2. Automatic Dispensing System For Water Supply

The automatic design dispensing system provides 2.8bar (40 PSI) strong suction and 1 GPM (3.78LPM) high flow.

Dry pumping protection: Automatic shut off when water drains, restart when bottle refilled. Muffle working.

 3. Long Life Motor and High Quality Diaphragm Pump

The system with Runs dry without damage,extending the life of the pump; the long life motor ensures years of reliable operation.

 4. Standard AC Adapter With Wide Voltage.

The BW4020 water dispensing pump with 110-230V AC Adapter, working by 50 or 60Hz

The standard UK, EU, US Plug will be providing according different market.

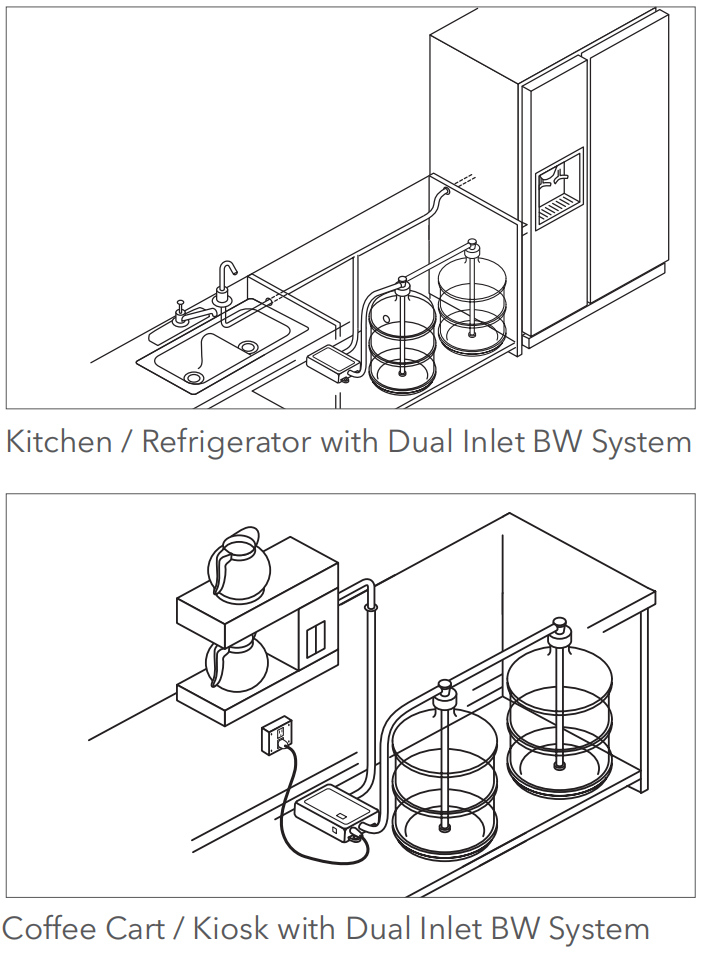

Application & Installation

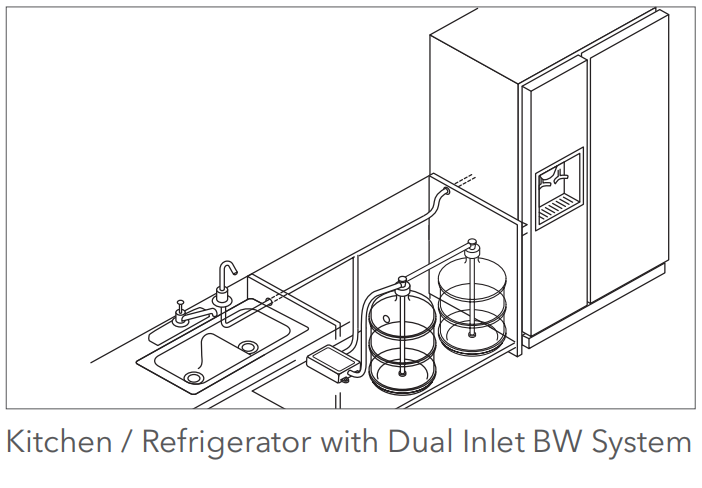

The BW4020 pump with quick disconnect ports allows for easy wand replacement in seconds. It can be widely Suitable for American refrigerators or other refrigerators with ice making function

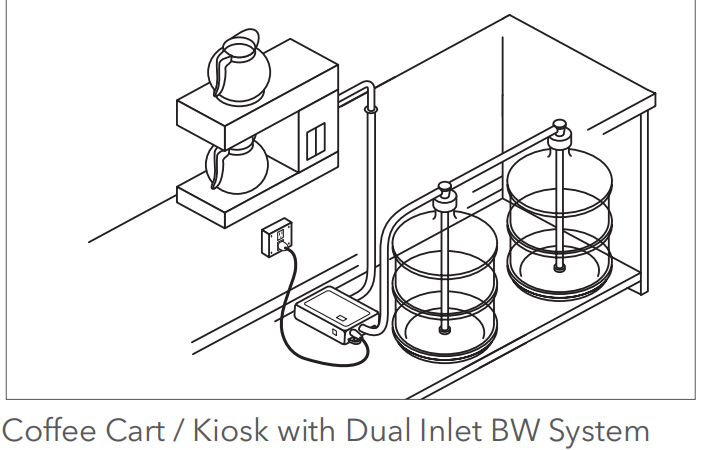

The BW4020 also suitable for the Coffee cart/Mahcine, Coffee dispenser/ Beverage System, Drinking Water supply. It can be easy installed under the working table, With the automatic floating sensor, to detects the water in the bucket in real time. Control the water supply by faucet or switch of beverage machine.

Notice:

1,Please fill water in the pump manually after long time unused to restart the pump. Please check when the pump not working.

2,If you've received a new pump with water in, it's normally because of pumping test instead of stain of use. As we tested every product before sales.

Products Photos:

Specification:

Our Packing:

Our Certificates

Frequently Asked Questions

Q1: Is the BW4020 water dispensing system easy to install?

A1: Yes, with quick disconnect ports allows for easy wand replacement in seconds

Q2: What is the quality warranty for this products?

A2: We provide 12M / 1 Year warranty, if you face the quality fault or defect, we will offer the free unit as compersation

Q3: What is different between BW4000 and BW5000?

A3: The BW4000 is 2nd generation, with bigger dimension than BW5000; higher flow rate design with higher noise level

       The BW5000 is 3rd newest generation; which with small dimension; lower flow rate, and more quite working noise level.

Q4: What are the available working modes?

A4: It can be continue working or Intermittent working; deponds on the equipment usage.

Q5: How often does the pump need maintenance?

A5: Usually it is not need maintenance; but if the device do not use long time, please check if any air in the suction pipe; using one blow gun to clean the remain water/air inside of products.

Q6: Does the both inlet pipes with floating water sensor?

A6: No, there are only 1 floating sensor on one system; the sensor was fitted in the main inlet tube; the another inlet tube was empty,only for pumping water from bottle.
