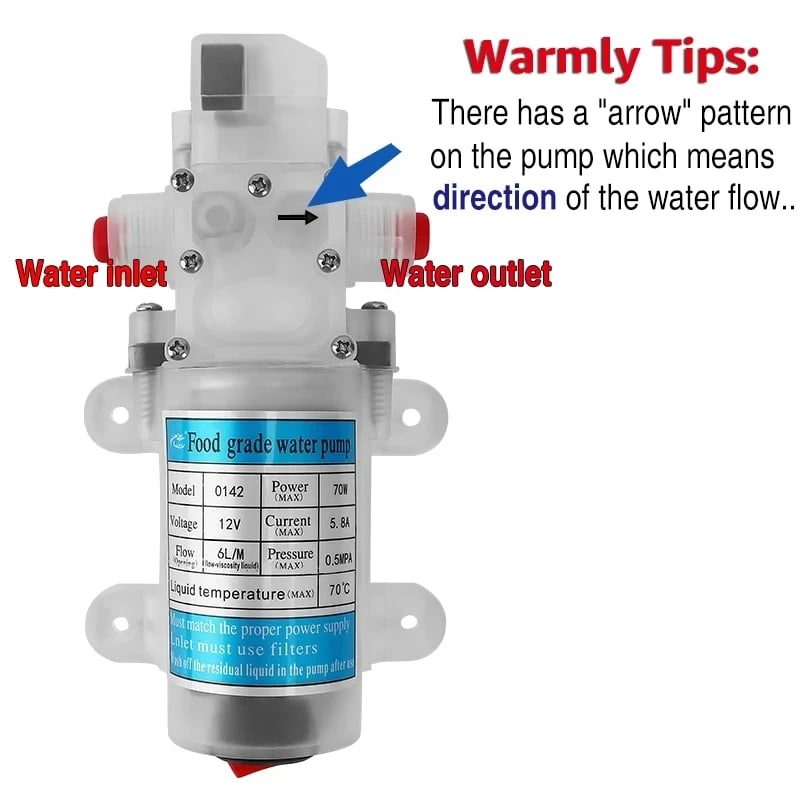

The MST series 0142,0342, 0442 series dc diaphragm pump is biggest flow 13LPM food grade pump in our products list. With safety material on pump's head; chamber, diaphragm.With or without automatic pressure switch design, the pump with constant flow rate; easy maintenance and install.It can be widely using for red wine, drinking milk, tea, cooking oil, etc.
Voltage/Hz :
12V or 24VFlow :
2L,6L,12L,13LPMCustomized Service :
Yes ( Color of pump; Logo; Unit box/ User manual )MOQ Order :
10PCSWarranty :
12 MonthsDC 12V Booster Beverage Drinking Water Food Grade Diaphragm Pump
About this item:
Our food grade diaphragm pump is design for health purpose, it can be widely using for drinking water, beverage, wine, milk.etc liuqid. The electric pump with flow rate 2L to 13LPM; We also accept the OEM order for the sticker, logo and packing, please free to talk with us.
Products Features:
Technical Data:
|
Model |
Volt |
Output |
Amps |
Flow (L/M) |
Suction (M) |
Max. Presure (BAR) |
Working Presure (BAR) |
Head of Delivery (M) |
L*W*H(MM) |
(KG) |
|
MST-0342YA |
12V |
15W |
1.25A/12V |
2 |
2 |
5 |
3 |
40 |
174*96.6*61 |
0.6 |
|
MST-0142YB |
12V/24V |
70W |
5.83A/12V; 2.29A/24V |
6 |
1.5 |
5 |
3 |
30 |
174.2*97.4*62 |
0.6 |
|
MST-0442YD |
12V |
80W |
6.67A/12V |
13 |
1.5 |
3 |
1 |
40 |
200.9*97*72.6 |
1.2 |
|
MST-0442YD-B |
12V |
40W |
3.33A/12V |
12 |
1.5 |
NO |
NO |
NO |
170.5*96.6*64.6 |
0.7 |
Note: the 0442YD-B is without pressure switch design.

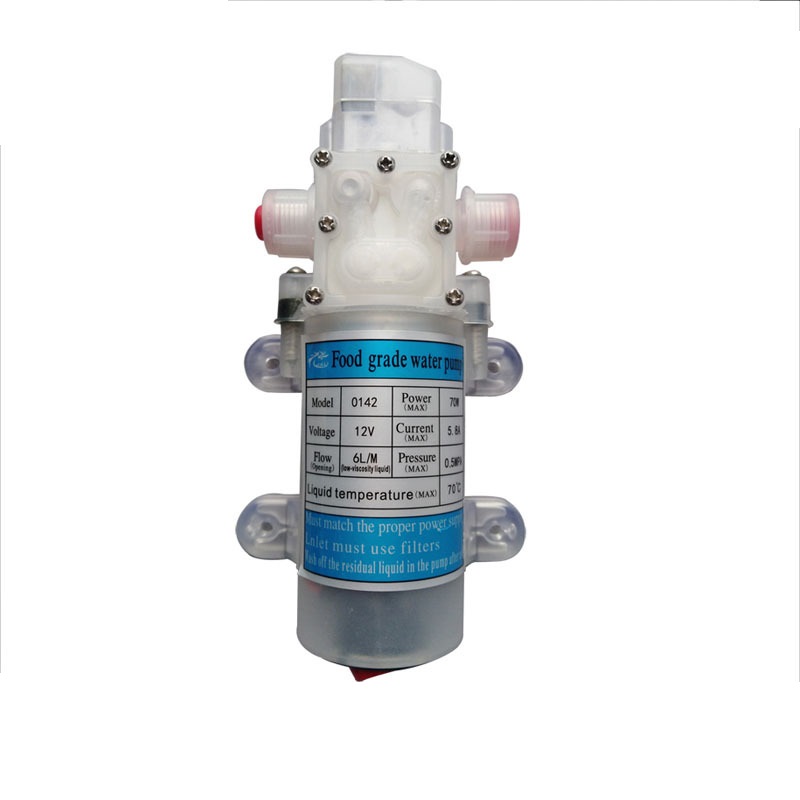

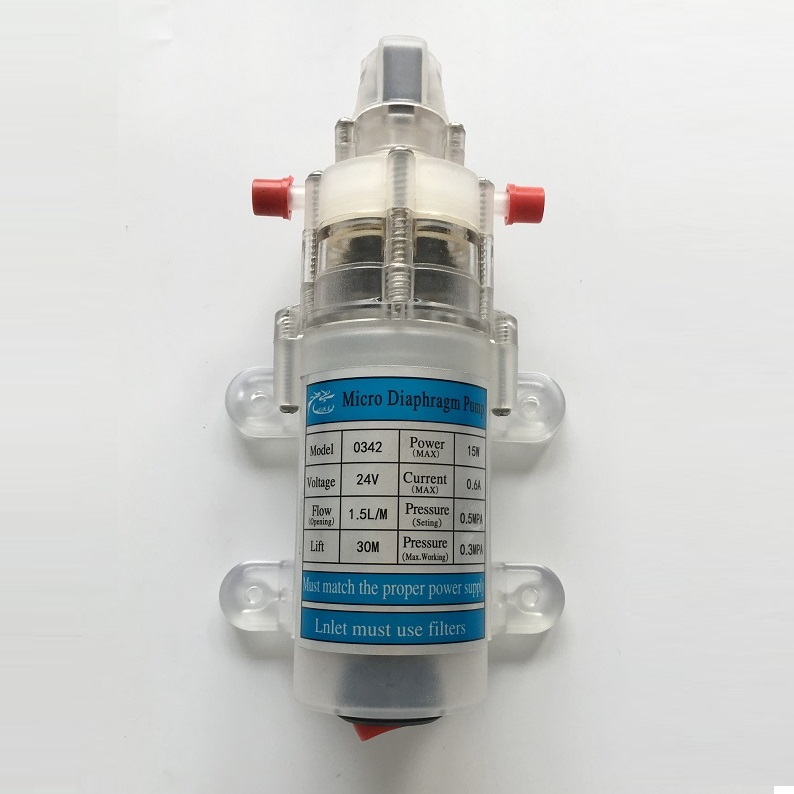

Products display:
Connector size of pump head:
ATTENTION:
*Do not use water or dirty water (silt in dirty water will cause irreversible damage to the pump).
*Non-submersible pumps are not waterproof. Do not spray water directly at the pump. It is strictly forbidden to soak the pump in water.
*Dry the pump body after use.
*Non-submersible pumps are not waterproof and cannot be used in a damp place for a long time.
*Do not disassemble the water pump or adjust the pump pressure setting screw by yourself (adjusting the pressure setting screw without authorization may be fatal to the pump).
*It is strictly forbidden to use this machine without the filter, and the density of the filter should be above 80 mesh (impurities will cause damage to the pump).
The diameter of the spray hole must meet the specified value, otherwise, the water pump will be damaged.
Please confirm the power supply before use, the power supply parameters must be consistent with the pump input parameters
