The APF variable speed pump with advantage design, compared with competing products, some of them stand out. With Unbeatable Efficiency: Harnessing the power of cutting-edge permanent magnet technology, these pumps provide unparalleled energy efficiency.
Available Output :
0.75HP; 0.87HPVoltage/Hz :
110V; 220V; 50/60HZControl Box :
Standard Control BoxCustomized Service :
YES, Brand/ Logo/ User manual/ Unit BoxMOQ Order :
50PCSLead Time :
20 DaysWarranty :
12 MonthsIntelligent Booster Permanent Magnetic Variable Frequency Inverter Pump APF Series
The APF Series permanent magnet variable frequency pump is a small water supply system, it suitable for boosting household pipe. The inverter pump could be supply water for garden, hotel or high building as well. With complete enclosed design, the working by low voice. With standard 220v Ac single phase voltage; and customized by 110v AC . Due to the Variable frequency design, the Hz could be 50 or 60Hz. it is very friendly for different market.
Technical Data:
|
Model |
Voltage |
Powe |
Spee |
Flow (m3/h |
Head (m) |
Inlet/Outle |
|||
|
V/HZ |
KW |
HP |
RPM |
Max. |
Rated |
Max. |
Rated |
||
|
APF204 |
220V, 50/60HZ |
0.55 |
0.75 |
4300 |
4.5 |
2 |
31 |
22 |
G1" |
|
APF204H |
220V, 50/60HZ |
0.65 |
0.87 |
5000 |
4.8 |
2 |
41 |
31 |
G1" |
|
APF204H |
110V/60HZ |
0.65 |
0.87 |
5000 |
4.8 |
2 |
40 |
31 |
G1" |
Note: the APF series could be customized by 110v version voltage, please mention in the inquiry before order.
PMSM( Permanent magnetic motor)； ABS casing；
Stainless steel pump body; SS304 welded shaft；
SS304 impeller; Environmentally nylon pump housing,
Silicon carbide to graphite mechanical seal; Sensata pressure sensor
IP54
Operating Condition:
Liquid temperature: High temperature (0℃~+100℃)
Environment temperature:≤40℃
Product Features:
The APF series smart water pump is widely suitable for:
1.Housing and Villa water supply systems
2. Residents center water supply systems
3. Cold water circulation systems
4. Industrial water circulation systems
5. Cooling water systems

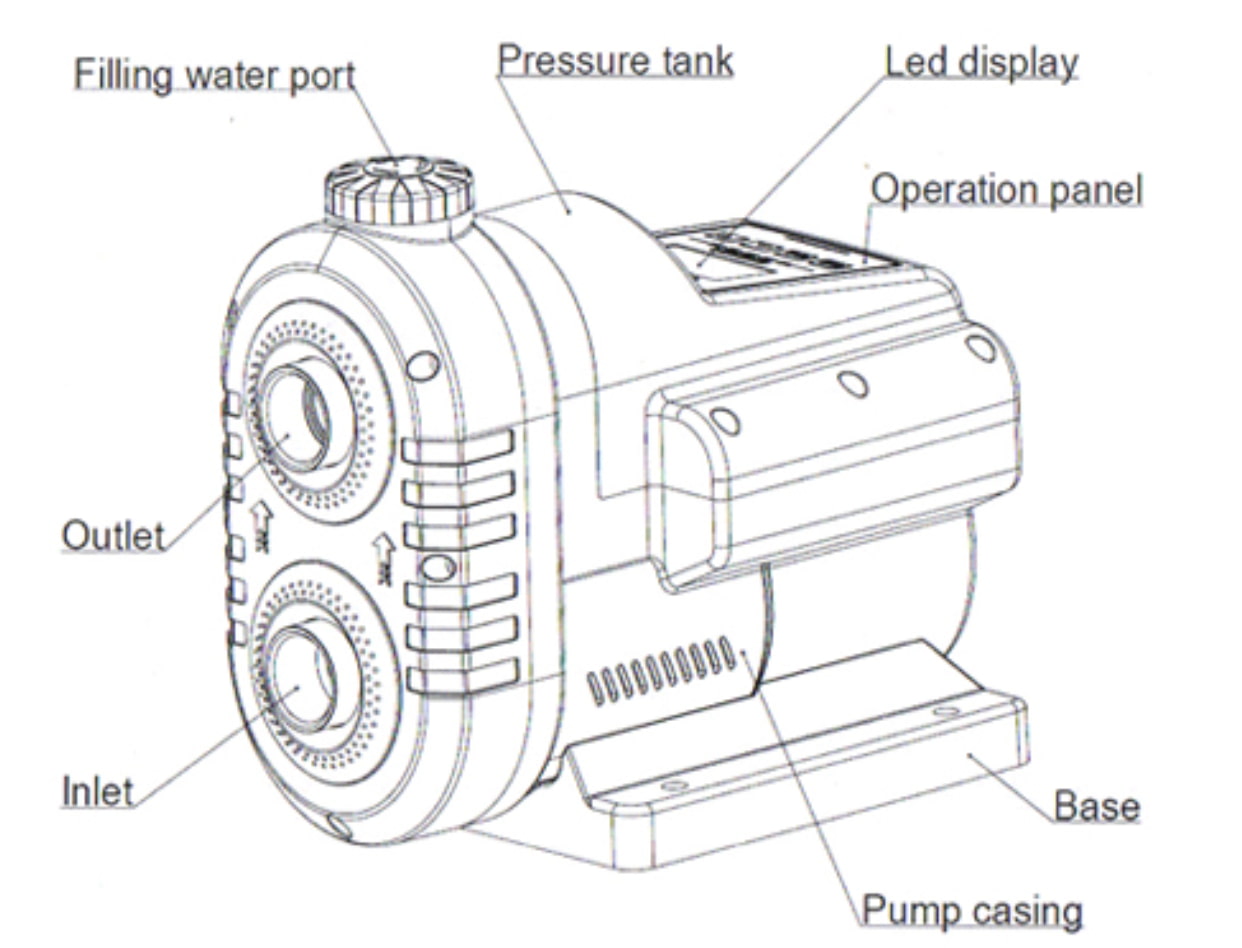

Detials Of Pump:

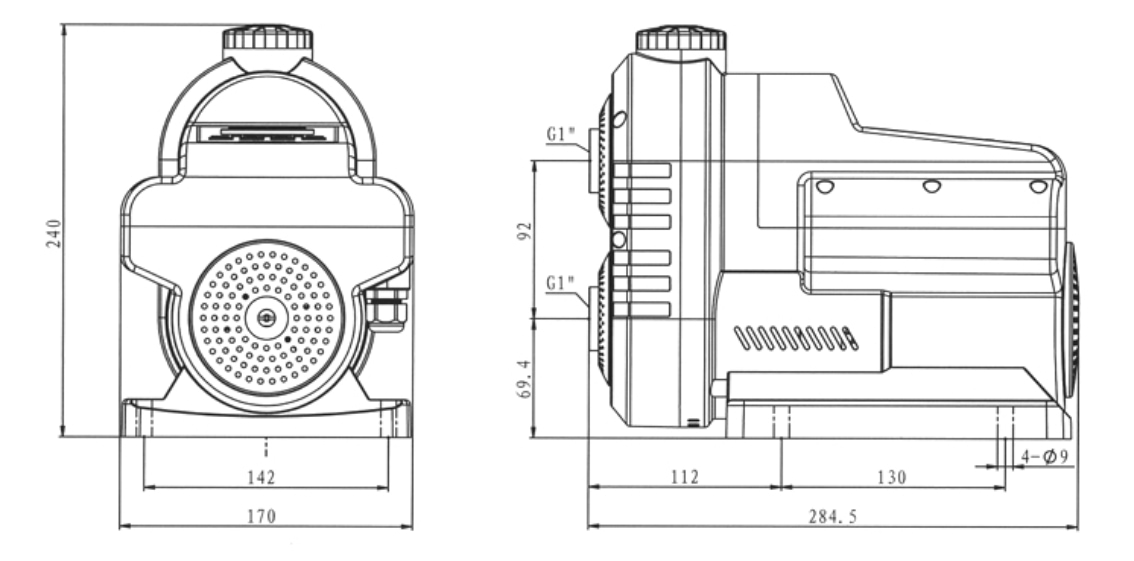

Dimension:
WHY CHOOSE OUR PUMPS?
Our Certificates
Each pump will be tested by our QC department before shipment and complies with CE standards. Please free to talk with us for more information.
