APG Constant Pressure Permanent Magnetic Variable Frequency Pump, is one of intelligent water pump with pressure tank we provide, the pump with PMSM motor; low noise; high efficient, and constant pressure supply
Available Output :
1.0HP; 1.3HP; 1.6HPVoltage/Hz :
110V; 220V; 50/60HZControl Box :
Standard control boxCustomized Service :
YES, Brand/ Logo/ User manual/ Unit BoxMOQ Order :
50pcsLead Time :
30 DaysWarranty :
12 MonthsSmart Home Automatic Energy-Saving Variable Frequency Booster Pump APG Series
Master Eagle is the professional supplier, for the inverter water pump,intelligent booster pump and variable frequency pump products in China. The APG series smart booster pump is design by the beautifully shaped to meet the whole house water supply for a family of five, a constant pressure control system designed for families to achieve a complete constant water pressure. The OEM service is available for customized order.
Permanent magnetic synchronous motor/PMSM motor,
Insensitive FOC vector drive technology,
Diaphragm pressure tank technology,
Check valve to eliminate water hammer.
Technical Data:
|
Model |
Voltage |
Power |
Speed |
Flow (m3/h) |
Head (m) |
Suction |
Inlet/Outlet |
|||
|
V/ HZ |
KW |
HP |
RPM |
Max. |
Rated |
Max. |
Rated |
m |
||
|
VFG203 |
220; 50/60 |
0.55 |
0.75 |
3450 |
5.0 |
2 |
41 |
37 |
NO |
G1" |
|
VFG204 |
220; 50/60 |
0.75 |
1 |
3450 |
5.3 |
2 |
54 |
45 |
NO |
|
|
VFG403 |
220; 50/60 |
0.75 |
1 |
3450 |
6.4 |
4 |
40 |
30 |
NO |
G1.25"/G1" |
|
VFG404 |
220;50/60 |
1.0 |
1.3 |
3450 |
7.8 |
4 |
54 |
42 |
NO |
|
ABS casing, stainless steel pump body, stainless steel impeller, 304 welded shaft, silicon carbide to graphite mechanical seal, Sensata pressure sensor, IP54
Operating Condition:
Liquid temperature: High temperature(0℃~+100℃)
Environment temperature:≤40℃
Product Features:
1.The system using the permanent magnet synchronous motor, ultra-high energy efficiency, ultra-low power consumption; As low as 1W of standby power design, so that energy-saving technology can be perfectly presented;
2. Motor insensitive drive technology (FOC), fully realize the zero maintenance of the motor system;
3. The rotor shaft uses stainless steel welding technology to ensure that over-water components avoid rust in daily use
4. Pressure tank core diaphragm using IIR material; it is long life design without maintenance.

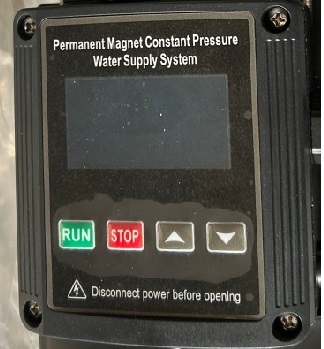

5. LED display human-machine interface, simple operation and accept by OEM language on the panel.
6. Equipped with industrial-grade pressure sensors;
7. System integration reverse valve structure;
8. A constant pressure control system designed for the home to achieve a complete constant water pressure.
WHY CHOOSE OUR PUMPS?

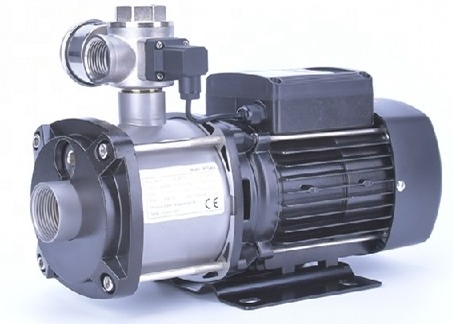

Permanent magnetic synchronous motor
High speed,high efficiency,low energy consumption Permanent magnet high speed motor,small size and high efficiency,energy conservation and environment protection

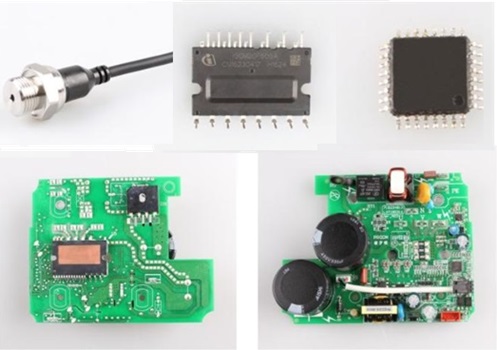

Choose the famouse brand- Sensata pressure sensor for suitable our pumps, with top material electric parts.
Our Certificates
Frequently Asked Questions
Q1: Is the APG pump easy to install?
A1: Yes, the pump is designed with a plug-and-play structure. It comes pre-wired and factory-configured, requiring only standard pipe and power connections. No special tools are needed.
Q2: Is the APG pump is self-primting pump?
A2: No, it is not the self-primting pump; it is inverter water pump.
Q3: Can I control the pump remotely?
A3: No, the pump did not supports smartphone APP control now, we will cosnider to design the APP in next step
Q4: How often does the pump need maintenance?
A4: The pump requires minimal maintenance. Under normal conditions, we recommend checking the impeller, seals, and electrical connections every 6 to 12 months.
Q5: Does the pressure tank is incuding the set?
A5: Yes, the pressure will be including for this model, no need purchase the tank additional
Q6: What is the lead time for MOQ (50pcs)?
A6: 15-20 days, depends on the requirements of order, if the packing is neutral packing without special request, we will make sure it will be ready in 20 days
