The high flow series 3HP multi-stage centrifugal pump is designed by constant water supply from 4.0 M3 to 12M3, the high pressure centrifugal inverter water pump offer adjustable pressure, unmatched energy-saving abilities, high flow rate, multi-functionality, wifi control, anti-freezing assurance, low-noise operation, multi-protection features, and adaptability to a wider voltage range, it is truly a testament to our commitment to excellence.
Available Output :
2.2KW / 3.0HPVoltage/Hz :
220V, 380V; 50/60HZControl Box :
Touch Screen LCD type with WIFICustomized Service :
YES, Brand/ Logo/ User manual/ Unit BoxMOQ Order :
50PCSWarranty :
12 Months
The CHM-DC 3HP series intelligent inverter pump automatically adjusts its speed to match your water consumption, ensuring constant pressure throughout your home while minimizing noise. Its energy-efficient design significantly reduces power usage, helping you save on energy costs and eliminate waste.
With the intelligent APP cloud platform management system, from the mobile phone to the pump for remote control—start or stop the pump anytime, set the desired working pressure. The intelligent water pump could be widely using for:Domestic water supply,Water pressure boosting,Water transfer, Cooling system,Heating system,Irrigation.
Technical Data:
|
Model |
Voltage |
Power |
Current |
Speed |
Flow (m3/h) |
Head (m) |
Inlet/Outlet |
|||
|
V |
HP |
KW |
A |
RPM |
Max. |
Rated |
Max. |
Rated |
||
|
CHM4-4DC |
220V 50/60HZ |
3 |
2.2 |
5.3 |
4200 |
10.5 |
4 |
82 |
73 |
1"x1" |
|
CHM6-4DC |
220V 50/60HZ |
3 |
2.2 |
5.3 |
4200 |
10.5 |
6 |
82 |
65 |
1 1/4"x1" |
|
CHM8-3DC |
220V 50/60HZ |
3 |
2.2 |
10 |
4000 |
13 |
8 |
55 |
45 |
1 1/2"x1 1/2" |
|
CHM12-3DC |
220V 50/60HZ |
3 |
2.2 |
10 |
4000 |
16 |
12 |
55 |
30 |
2"x2" |
|
CHM8-3DC |
3~ 380V 50/60HZ |
3 |
2.2 |
10 |
4000 |
13 |
8 |
55 |
45 |
1 1/2"x1 1/2" |
|
CHM12-3DC |
3~ 380V 50/60HZ |
3 |
2.2 |
10 |
4000 |
16 |
12 |
55 |
30 |
2"x2" |
Note: The standdard voltage is by 220V AC single phase; but it could be customized by 380V AC three phase; please mention in the inquiry before order.
Advantage:
Operating Condition:
PH 5-8;
Ambient temperature 0-40°C;
Relative humidity ≤85% (RH);
Medium temperature 0-60°C
Insulation: B
Portection: IPX4

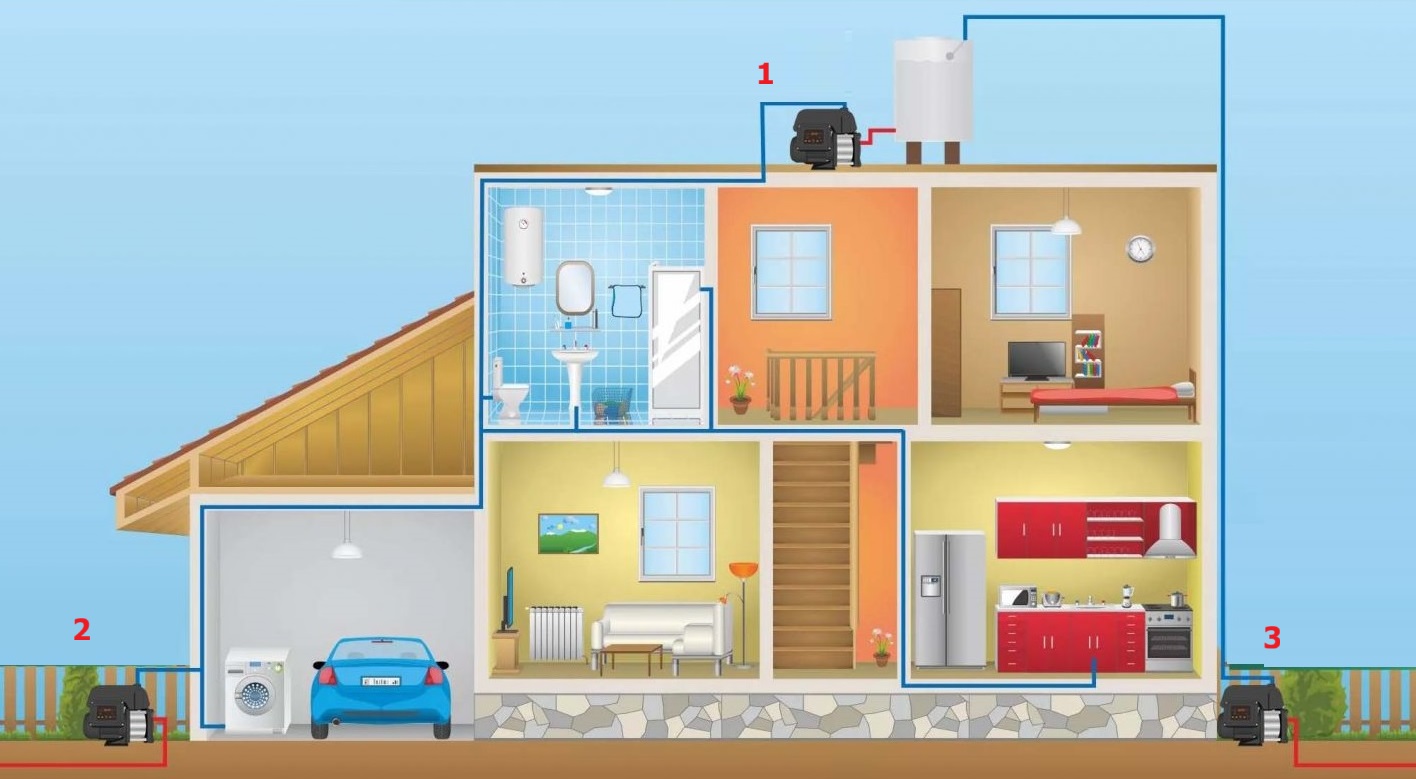

3 WORKING MODES SUITABLE FOR ALL BOOSTING NEEDS IN THE HOUSEHOLD
Booster up: Automatic control by pressure increases the pressure immediately when the taps are opened
Booster down: Automatic increases the downward pressure of water from the roof tank or over-head tank.
Timing/filling the tank: Pumping water from the ground tank/city mains to the roof tank by timing, avoiding start & stop frequently

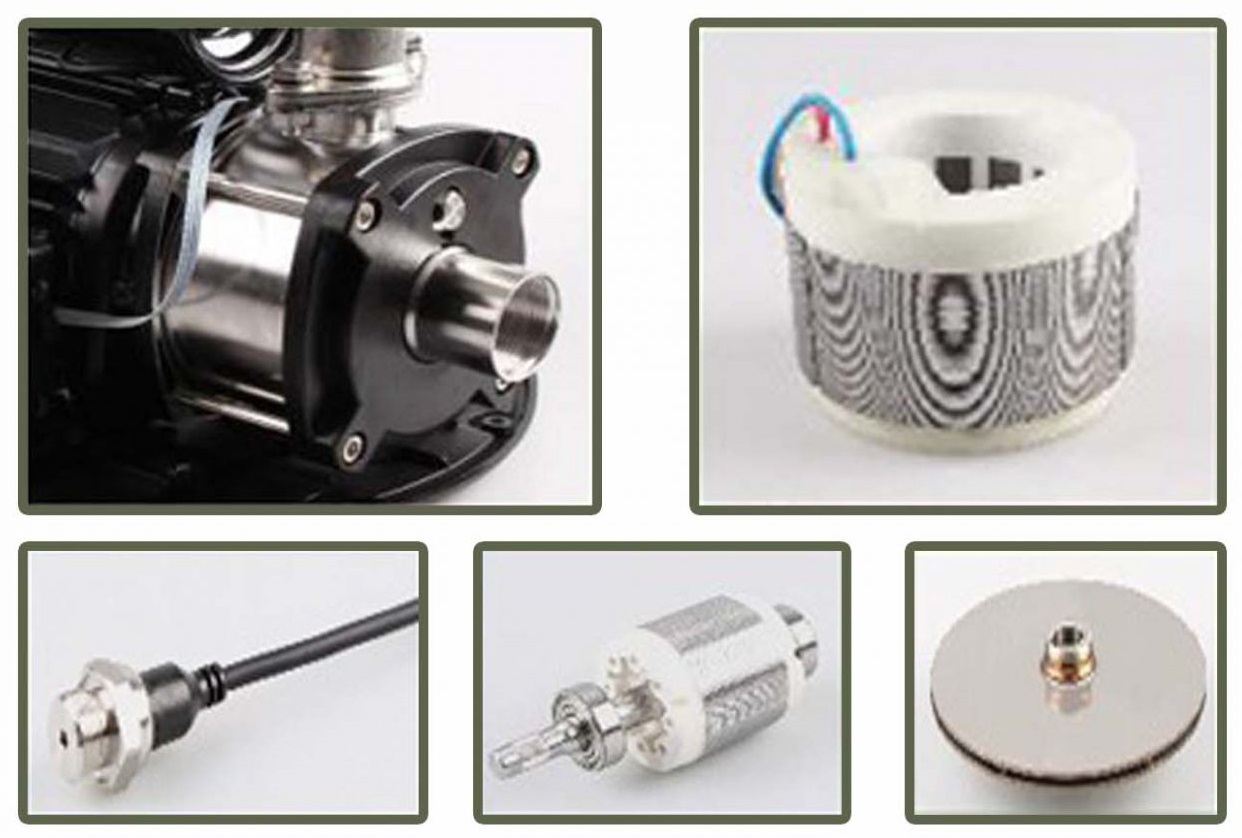

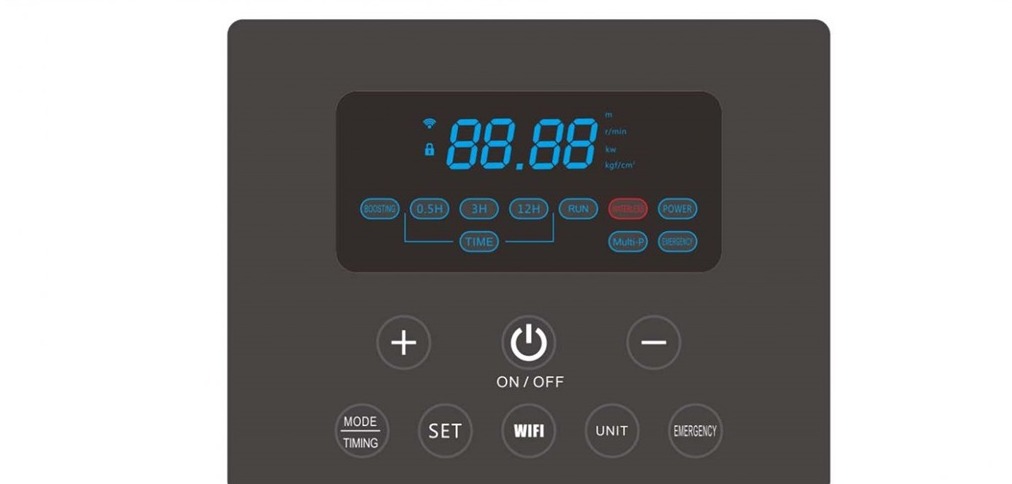

Top material and spare parts and control panel

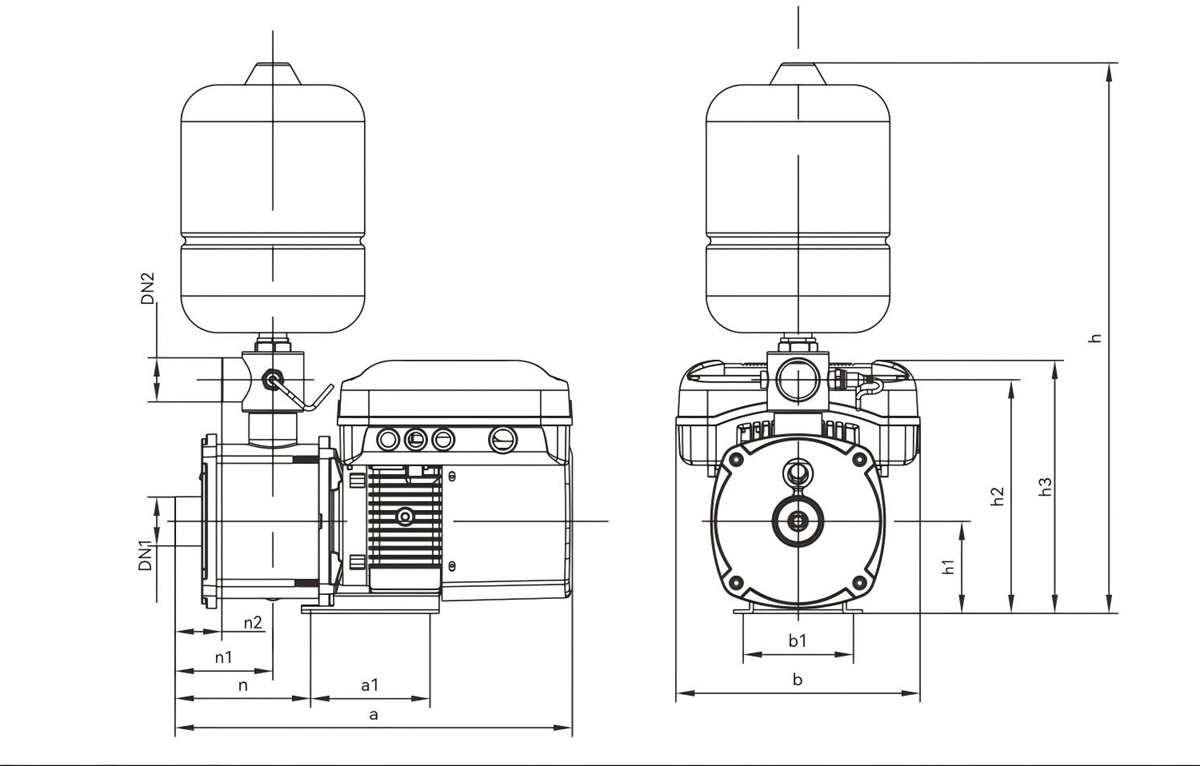

Installation Dimensions:
| Model | DN1 | DN2 | a (mm) | b (mm) | a1 (mm) | b1 (mm) | h (mm) | h1 (mm) | h2 (mm) | h3 (mm) | n（mm) | n1 (mm) | n2 (mm) | Carton Size (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CHM4-4DC | G1 | G1 | 455 | 266 | 120 | 130 | 554 | 102 | 213 | 277 | 155 | 129 | 83 | 666 × 321 × 336 |
| CHM6-4DC | G1 1/4 | G1 | 455 | 266 | 120 | 130 | 554 | 102 | 223 | 277 | 155 | 129 | 83 | 666 × 321 × 336 |
| CHM8-3DC | G1 1/2 | G1 1/2 | 433 | 266 | 120 | 130 | 601 | 102 | 256 | 277 | 143 | 107 | 51 | 666 × 321 × 336 |
| CHM12-3DC | G2 | G2 | 433 | 266 | 120 | 130 | 619 | 102 | 256 | 277 | 143 | 99 | 34 | 666 × 321 × 336 |
Our Certificates
Quality is guaranteed. Every product is tested by our QC department before shipment and complies with CE standards. Welcome to talk with us for more information.
