APM Inverter Permanent Magnet Constant Pressure Variable Frequency Pump

APM Inverter Permanent Magnet Constant Pressure Variable Frequency Pump

Product Features

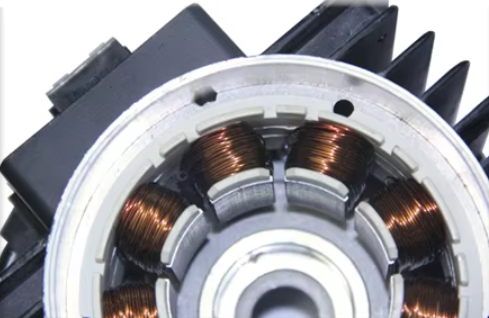

1. The inverter water pump uses PMSM motor,  High energy efficiency and energy-saving( use more ,and save more); Adopt the world’s most cutting-edge motor non-inductive driving technology to fully realized zero maintenance of motor system.

2. Low to 1W standby power design,so that the energy-saving technology can be fully presented.
3. Full comply with the high design standards and manufacturing requirements for product safety and environmental protection in the European Union and the United States.
4. The impeller adopts enhanced PPO, with copper insert structure to make it more rugged and durable.

5. The rotor shaft adopts stainless steel welding technology, avoid the water parts never rust.

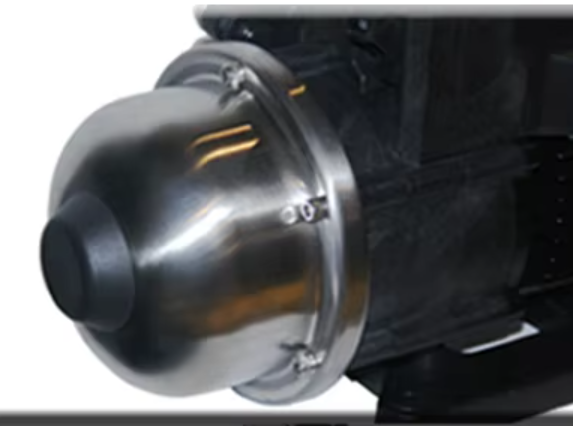

6.Pressure tank core diaphragm uses IIR material to improve the gas tightness

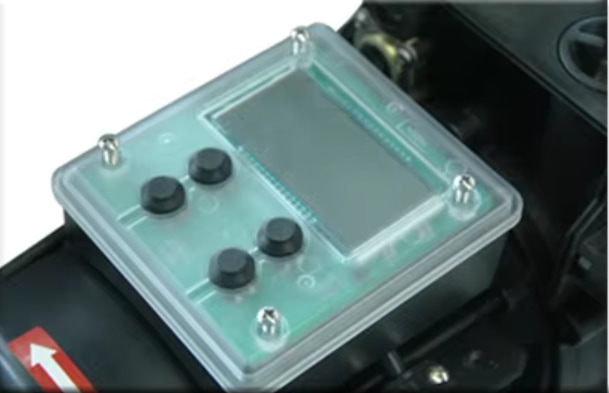

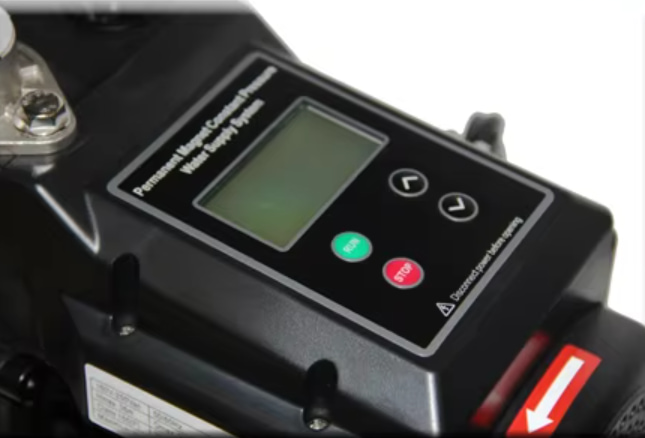

7. The human-computer interface of the Digital display and the most easily operated fool-type design,enable the system to communicate with users without obstacles

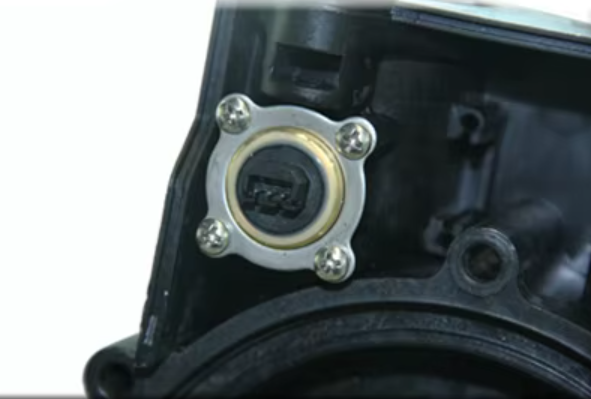

8. Adopt the pressure sensors of world-class brands to improve the reliability of the system
9. The system is integrated with the reverse stop valve structure,so that the internal pressure can be persisted under the condition of non-water use in the pipe network system

Technical Data:

Materials:

ABS casing,

stainless steel pump body,

stainless steel impeller,

304 welded shaft,

silicon carbide to graphite mechanical seal,

Sensata pressure sensor,

IP54



Operating Condition:

Liquid temperature: High temperature(0℃~+100℃)

Environment temperature:≤40℃





Detials of Pump:

WHY CHOOSE OUR PUMPS?
