The VFG Series variable frequency drive pump with high flow design with smaller output, the pump is widely suing for It is suitable for domestic water supply of various types of water works, pressure stations,hotels, residential areas and other high-rise buildings.
Available Output :
0.75HP ; 1.0HP; 1.3HPVoltage/Hz :
220V/ 50/60HZControl Box :
Standard control boxCustomized Service :
YES, Brand/ Logo/ User manual/ Unit BoxMOQ Order :
50PCSLead Time :
30 DaysWarranty :

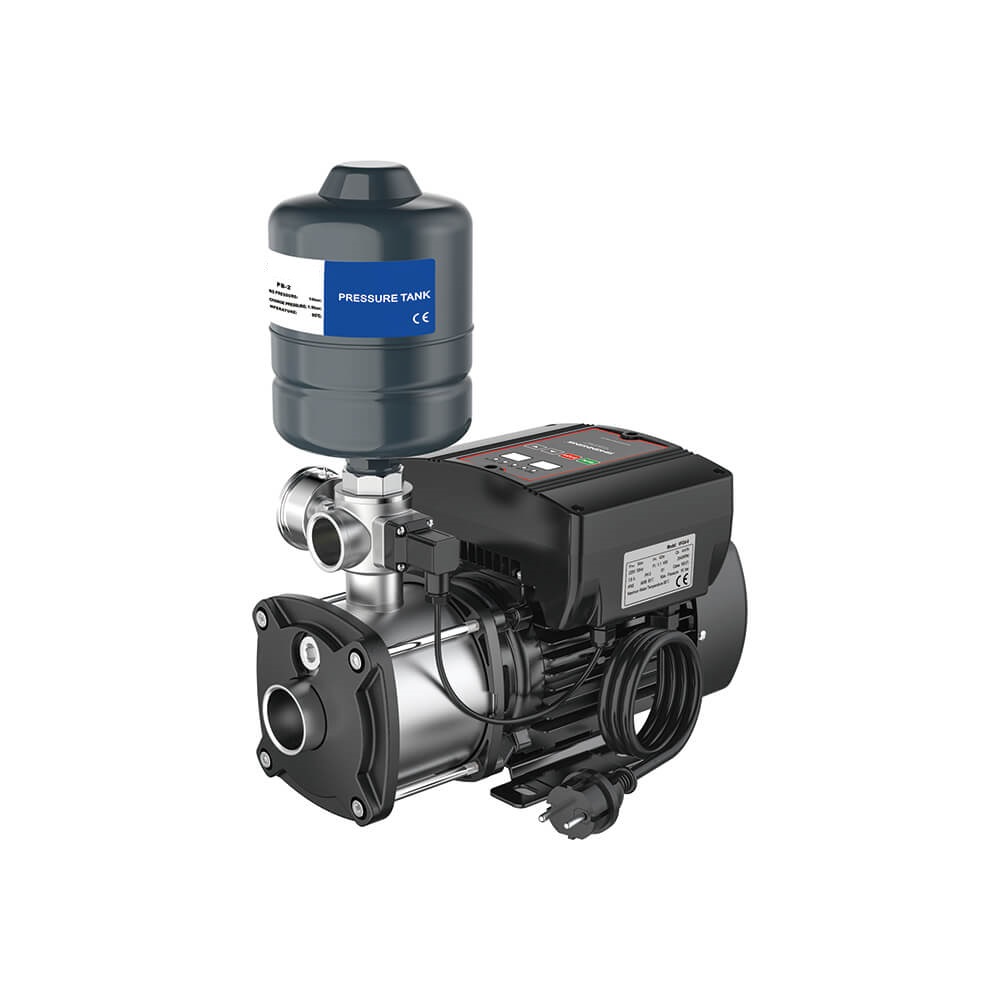

12 MonthsPermanent Magnetic Motor Variable Frequency Pump VFG Series
Consider the flow rate demand for our client, we made the design with smaller output VFG series inverter water pump, the series with working quite, with water pressure tank . The permanent magnetic motor make the pump working very smoothly and save cost. Master Eagle is our own brand; but also avaialbe for OEM/ODM customization to meet various industrial and commercial application needs.
Constant pressure
Energy saving
Comfortable
Technical Data:
|
Model |
Voltage |
Power |
Speed |
Flow (m3/h) |
Head (m) |
Inlet/Outlet |
|||
|
V/ HZ |
KW |
HP |
RPM |
Max. |
Rated |
Max. |
Rated |
||
|
VFG203 |
220V 50/60HZ |
0.55 |
0.75 |
3450 |
5.0 |
2 |
41 |
37 |
G1" |
|
VFG204 |
220V 50/60HZ |
0.75 |
1 |
3450 |
5.3 |
2 |
54 |
45 |
G1" |
|
VFG403 |
220V 50/60HZ |
0.75 |
1 |
3450 |
6.4 |
4 |
40 |
30 |
G1.25"/G1" |
|
VFG404 |
220V 50/60HZ |
1.0 |
1.3 |
3450 |
7.8 |
4 |
54 |
42 |
G1.25"/G1" |
Stainless steel pump body, Stainless steel impeller,
304 welding shaft, Silicon carbide to graphite mechanical seal,
Sensata pressure sensor, Stainless steel five-way,
stainless steel oil pressure gauge, IP54
Operating Condition:
Liquid temperature: High temperature(0℃~+100℃)
Environment temperature:≤40℃
Product Features:
1.Over flow parts are 304 stainless steel, in line with drinking water sanitation standards;
2.Shaft seal for the mechanical seal, different media choose the friction accordingly;
3.F Class insulation, IP54 protection grade;
4.Supporting LCD display human-machine interface, simple operation;
5.Equipped with industrial -grade pressure sensors;
6.Multiple pumps can be networked online.
WHY CHOOSE OUR PUMPS?
Choose the famouse brand- Sensata pressure sensor for suitable our pumps, with top material electric parts.
Our Certificates
Every product is tested by our QC department before shipment and complies with CE standards. Please free to talk with us for more information.
