DC Water Pump
01501 Submersible DC Pump
24v bigle pump
dc bilge pump
4000gph bilge pump

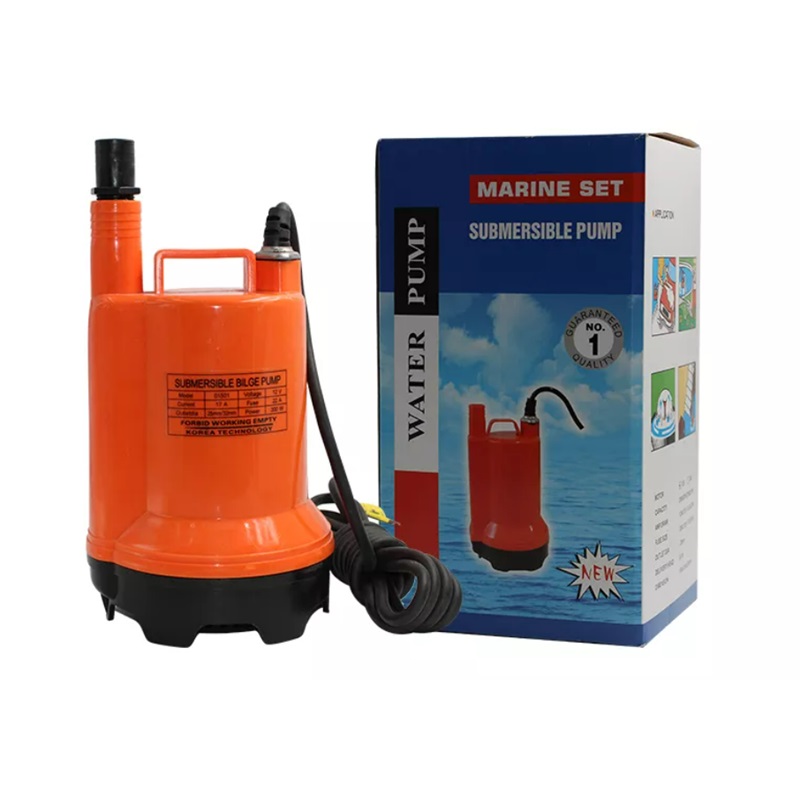

MST-01501 DC 24V Fishing Boat Marine Bilge Submersible Pump

The MST-01501 Series DC submersible pump is with Korean technology design; the pump wit heavy duty motors with stainless steel shafts and tough thermoplastic bodies; total submersible design ignition protected.The dc bilge pump was designed by water cooled motor for long life. It can be widely using in several area. Like fishing, marine, boat, irrigation and others.

  • Voltage (Vdc) :

    24Vdc
  • Max Flow (M³/h) :

    4000 GPH
  • Max Head (M) :

    8.5
  • MOQ Order :

    50PCS
  • Warranty :

    1 Year

MST-01501 DC 24V 4000 GPH Fishing Boat Marine Bilge Submersible Pump



The 01501 Series DC 24V bigle pump for fish boat, whcih with heavy duty flow design, the dc submersible pump that there is not blocked by open impeller type.The case of the pump is not corroded because it is made up of polyacetal resin, it is possible to use this pump both seawater and fresh water, it can be operated with using by battery for vehicles, it may be used for the urgent drainage in case of a blackout.



Technical Data:

Model

MST-01501

Voltage

24V (12V by customzied)

Power

200 W

Max Flow

4000 GPH

Max lift

8M (26.5 ft)

Diameter

25MM/32MM

Products Size

16.5x27x21CM

Power Cord Length

3M





Product Features:

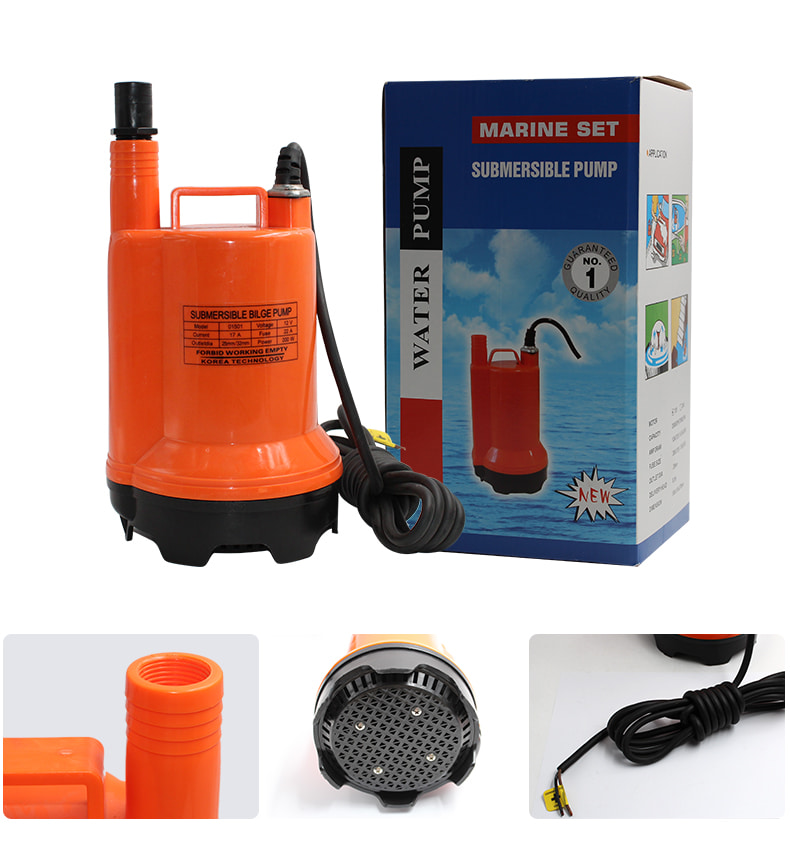

01501 Dc submersbile pump

1.Low amp draw conserves batteries

2.Long life motor with stainless shafts

3.Includes comprehensive user manual with installation instructions and wiring diagram

4.Easily fitted and removed

5.Excellent self-suction capability

6.Pump controlled automatically by built-in pressure switch

7.Permissible liquid temperature up to 140 deg.F

8.Low noise,excellent corrosion resistance and high pressure



Applications:

• Our 24v sumbersible pump supply and drainage for agriculture, industry, gardening, fish farming, marine and vehicles for transporting live fish.
• Water supply pump for drinking water and shower of camping car.
• Water supply pump for fountain using solar power
• For drainage pump for areas prone to floods such as bilge of vessel and basement.

01501 dc marine pump

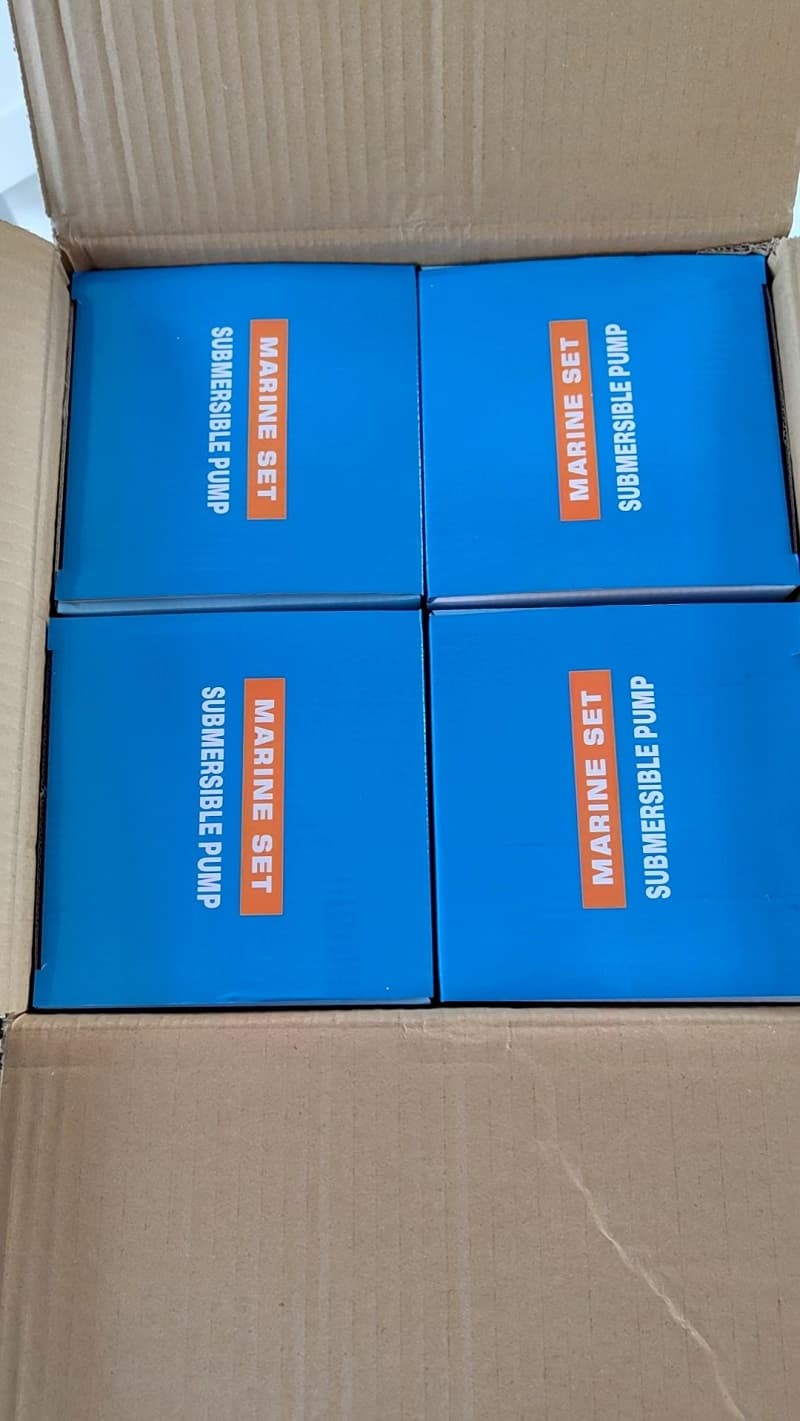

Finished Products:

Each Dc water pump will be by one color box; total by master carton; qty by 4pcs per caton

After testing and inspection, the finish products will be keep in our warehouse with shipping mark.
