The 33-Series is our general-duty on-demand positive displacement pump. It provides reliable performance in high water flow, moderate pressure applications.
This 3-chamber diaphragm pump provides up 2.0 to 4.0 gallons per minute and is capable of self-priming up to 6 vertical feet, and can run dry without damage.
Serves 3 or more 1/2” (13 mm) outlets. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops when the faucet is opened and closed. They're easy to install, service and winterize.
Voltage/Hz :
12V; 24V DCFlow :
2.0/ 2.8/ 3.0/ 3.3/ 3.5/ 4.0 GPMCustomized Service :
Yes ( Color of pump; Logo; Unit box/ User manual )Warranty :
12 MonthsProducts Features:
Capable of supplying 2-3 fixtures
Flow rate could be customized from 2.0 to 4.0 GPM
Self priming
On-demand use
Industry Standard mounting pattern
Completely rubber mounting-base
Adjustable pressure switch
16 AWG, 4.5"(11.4 cm) long Leads
Technical Data:
|
Model |
Volt |
GPM |
LPM |
(PSI/BAR) |
N.W/G.W (KG) |
|
F33-101-045 |
12V/24V |
2.0 |
7.6 L/Min |
45/3. 1 |
1.9/2.2 |
|
F33-101-045A |
12V/24V |
2.8 |
10.6 L/Min |
45/3. 1 |
1.9/2.2 |
|
F33-102-045 |
12V/24V |
3.0 |
11.6 L/Min |
45/3. 1 |
1.9/2.2 |
|
F33-102-045-A |
12V/24V |
3.3 |
12.5 L/Min |
45/3. 1 |
1.9/2.2 |
|
F33-102-045-B |
12V/24V |
3.5 |
13.5 L/Min |
45/3. 1 |
1.9/2.2 |
|
F33-103-045 |
12V/24V |
4.0 |
15.0 L/Min |
45/3. 1 |
1.9/2.2 |

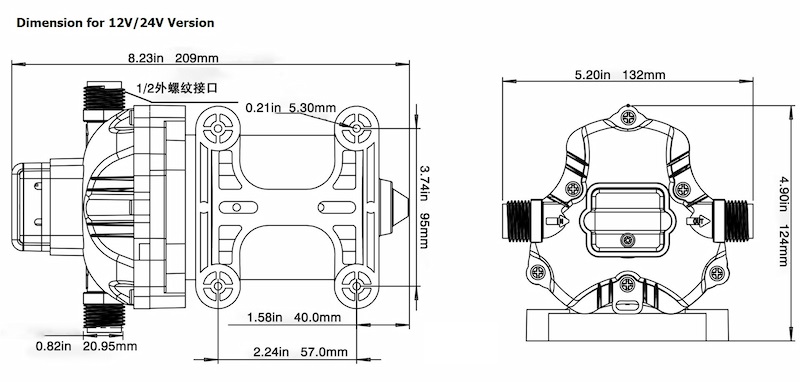

Dimension:
Usage:
The pump could be widely using for RV, Boat, Water supply and Irrigation
Packing Information:
| Unit N.W/ G.W | 1.9 / 2.2 KG |
| Unit Box Size | 29.9*14.6*12.8 cm |
| Master Carton Size | 46*31*28 cm |
| Master Carton G.W | 13.9 KG |
