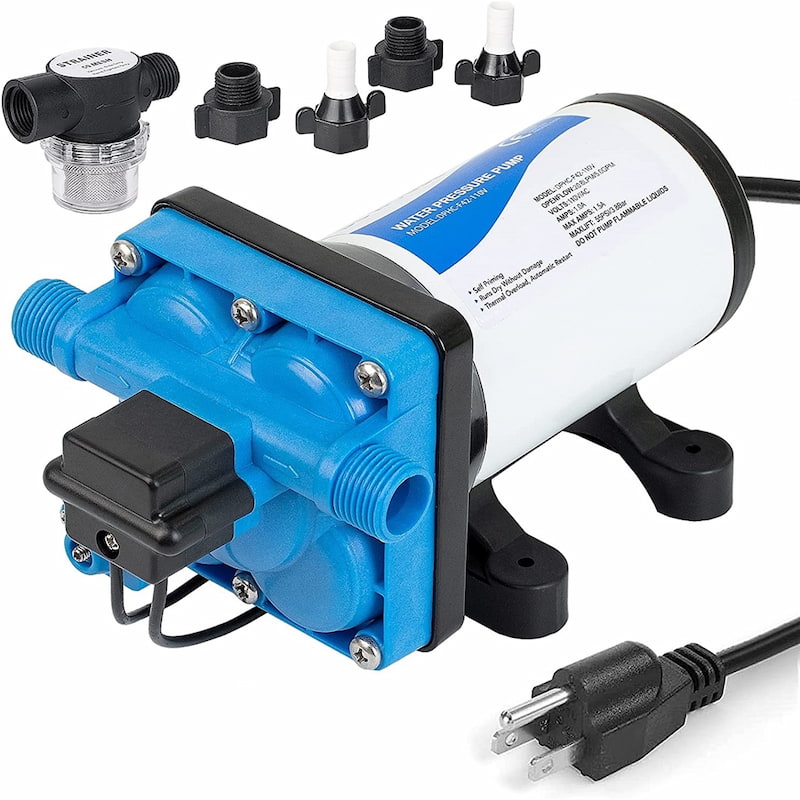

The F42 Series 55PSI AC 115V or 230V Booster pump is our general-duty on-demand positive displacement pump. It provides reliable performance in high water flow, moderate pressure applications.
Designed by 4 stronger chambers, the pump could provides up flow from 3.0 to 5.5 GPM and is capable of self-priming up to 6 vertical feet, and can run dry without damage. Serves 3 or more 1/2” (13 mm) outlets. This automatic demand water system pump has a built-in pressure switch, which automatically starts and stops when the faucet is opened and closed. They're easy to install, service and winterize.
Voltage/Hz :
115V/230V ACFlow :
3.0/ 4.0 / 4.5/ 5.0/ 5.5 GPMCustomized Service :
Yes ( Color of pump; Logo; Unit box/ User manual )Warranty :
12 MonthsProducts Features:
Continuous duty
Flow rate from 3.0 to 5.5GPM
Self priming
Run dry safe
Quiet operation
On-demand use
Industry Standard mounting pattern
Completely rubber mounting-base
Internal bypass technology reduces cycling
16 AWG, 9.4"(23.8 cm) long leads
1 Year Warranty
Technical Data:
| Model | Volt | GPM | LPM | (PSI/BAR) | N.W/G.W (KG) |
| F42-201-055 | 115V/230V | 3.0 | 11.3L/Min | 55/3.8 | 2.7/3.0 |
| F42-202-055 | 115V/230V | 4.0 | 15.0L/Min | 55/3.8 | 2.7/3.0 |
| F42-202-055-A | 115V/230V | 4.5 | 17.0L/Min | 55/3.8 | 2.7/3.0 |
| F42-203-055 | 115V/230V | 5.0 | 18.9L/Min | 55/3.8 | 2.7/3.0 |
| F42-204-070 | 115V/230V | 5.5 | 20.8L/Min | 70/4.8 | 2.7/3.0 |
Usage:
The pump could be widely using for RV, Boat, Water supply and Irrigation
Packing Information:
| Unit N.W/ G.W | 1.95 / 2.3 KG |
| Unit Box Size | 29.2 x 13.5 x 12.7 cm |
| Master Carton Size | 48*32.5*29 cm |
| Qty/Carton | 6 Pcs |
| Master Carton G.W | 13.9 KG |
