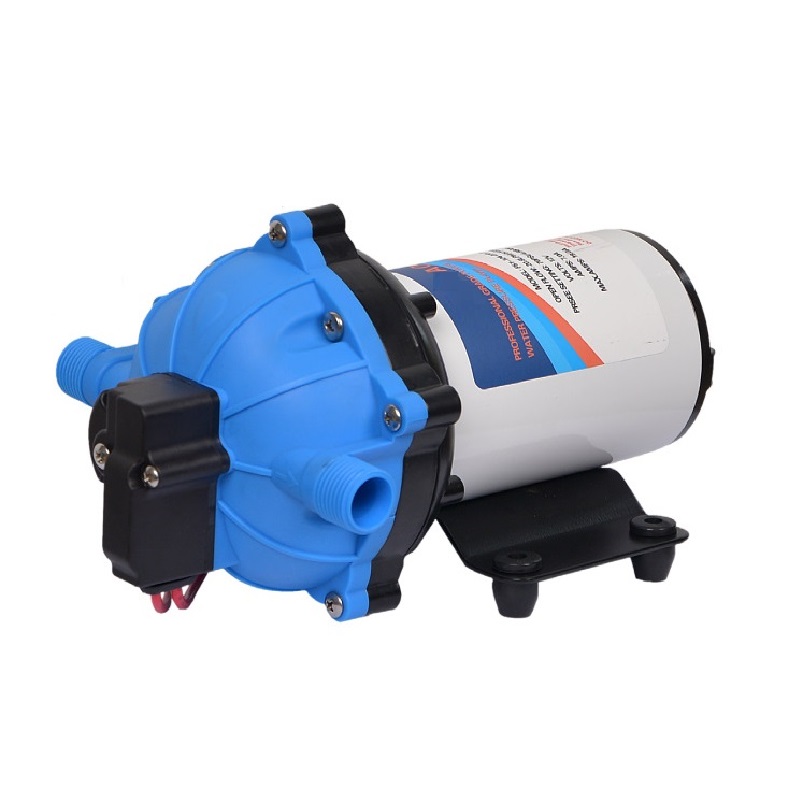

F51 DC 5.5GPM 70PSI Self Priming Booster Diaphragm On Demand RV Water Pump

About this item:

Parameters: 12V water pump offers a flow rate from 3.0 to 5.5 GPM, pressure switch of 70 PSI, self-priming suction head up to 10ft, and a horizontal self-priming lift up to 157ft

Equipped with a 228W pure copper motor, the RV water pump is designed for low noise and vibration, energy efficiency, and includes thermal and run-dry protection to prevent damage from running dry

Design: 12V RV water pump utilizes a 5-chamber self-priming diaphragm and has an adjustable pressure switch (15-70 PSI); it automatically stops and starts based on pressure needs

Built-In Functions: RV water pump features a pressure and return function with a bypass switch to manage excess pressure and initiate a circulation loop, which helps protect the pressure switch from damage

Mounting and Durability: 12V DC water pump is mounted on iron plate feet with anti-vibration pads to minimize noise; the iron surface is treated with a galvanized anti-rust coating for corrosion resistance and durability in damp conditions

Applicability: RV water pump can handle liquid temperature 0-65°C and pH 5.0-10; also manages water with a solid impurity volume ≤ 0.1% and particles smaller than 0.2 mm

Adapters: On demand water pump includes 1/2" barbed hose adapters, suitable for RV, boat, yacht, caravan, garden, camper, and sprinkling systems

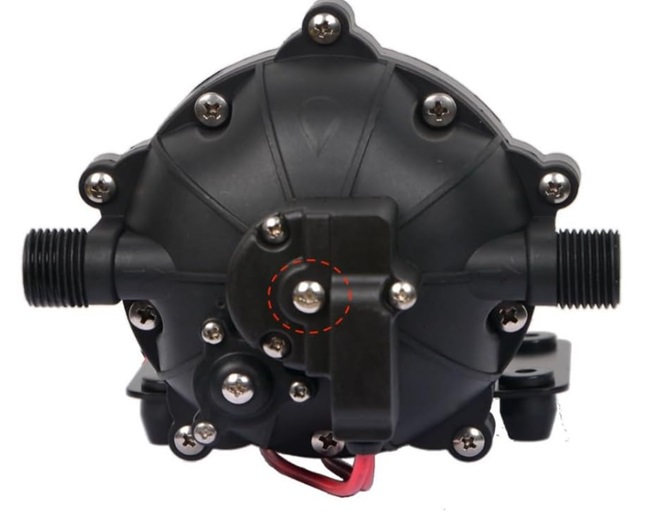

The adjustable screw to be desired pressure by turning clockwise to increase and counter-clockwise to decreases.

Technical Data:

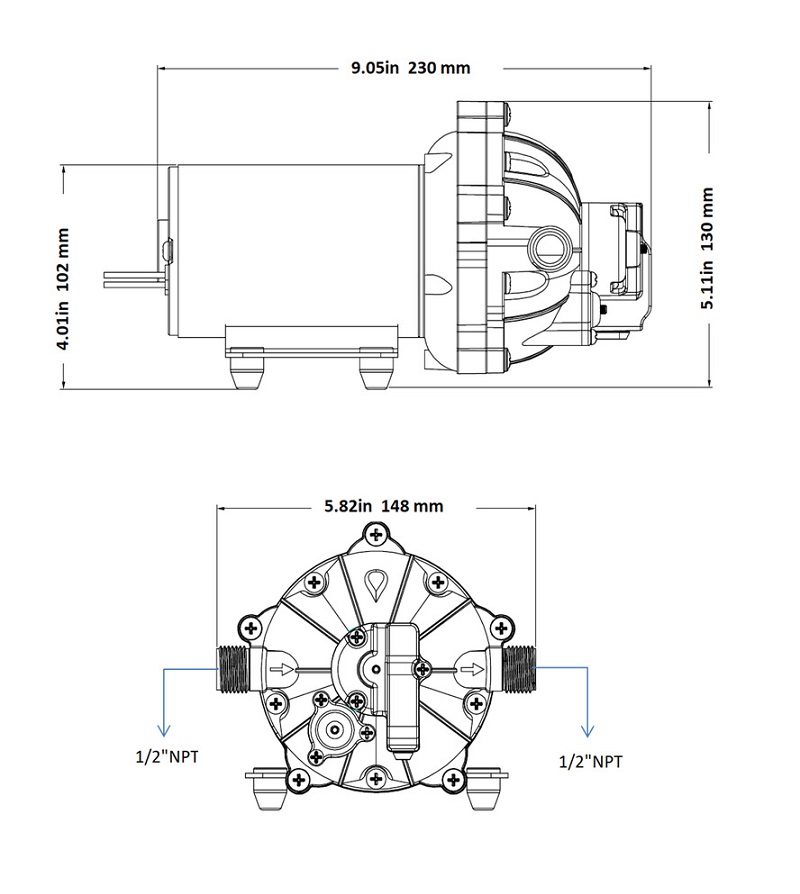

Dimension:

Usage:

The pump could be widely using for RV, Boat, Water supply and Irrigation

Packing Information:
