Diaphragm Water Pump

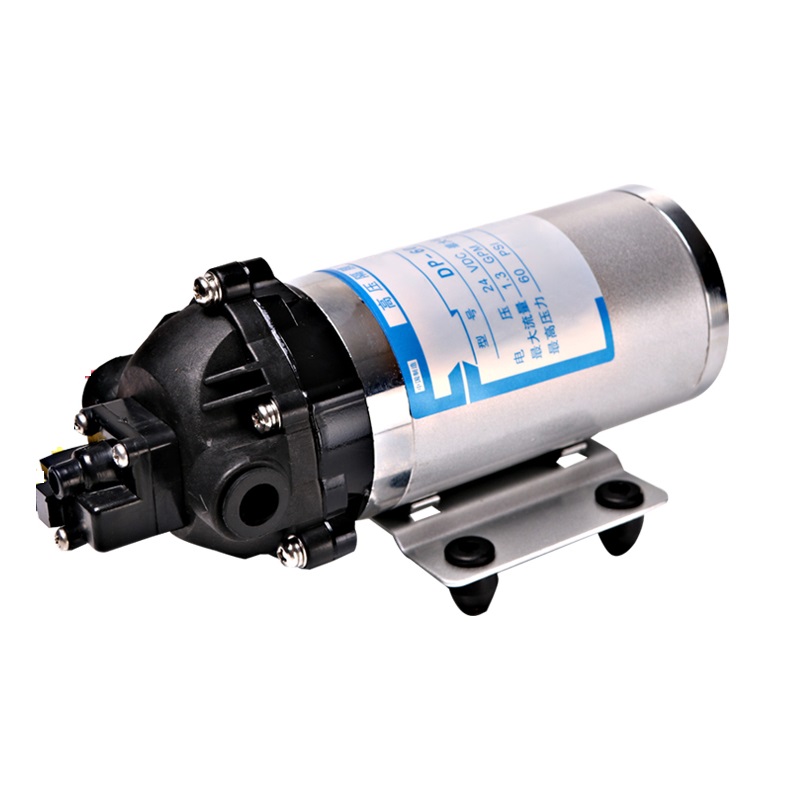

DP-60 DC 12V 24V 60PSI 5LPM High Pressure Self Priming Diaphragm Pump

The DP-60 is one of 3 chambers design diaphragm pump, with full copper wire motor and bearing; the pump working very quite.

With customized spare parts for the chamber, valve change by VITON or FKM material; the pump will be more corrosion resistant, could be using for special liquid.

Voltage/Hz :
12V; 24V DC
Flow :
1.3 GPM/ 5LPM
Customized Service :
Yes ( Color of pump; Logo; Unit box/ User manual )
MOQ Order :
10PCS
Warranty :
12 Months

Inquiry now

Product Details

About this item:

Light weight and Portable: Easy to store and haul, this mini utility pump offers big value in a little package

Multipurpose: Perfect for transferring water from aquariums, washing machines, water beds, water heaters, clogged sinks, and more. Can be used home, garden, caravan, camper, marine.

Low power consumption: with 100% cooper wire motor and good bearing, the pump working stability and low noise

Products Features:

1.Easily fitted and removed;

2.Excellent self-suction capability;

3.Pump controlled automatically by built-in pressure switch;

4.Permissible liquid temperature up to 60C

5.Dry operation is permissible,self-suction height is 5m;

6.Low Noise, Excellent corrosion resistance, High pressure.

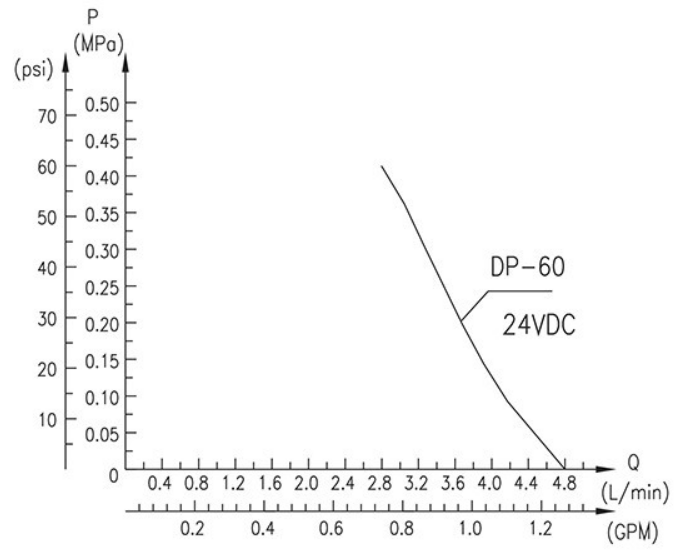

Technical Data:

Model	Voltage(V)	Current(A)	Max Flow(GPM)	Max Flow(LPM)	Max. Pressure (PSI)	Max. Pressure (MPA)	Speed (RPM)	Suction (M)
DP-60	12	6.0	1.3	5	60	0.42	1200	5
DP-60	24	3.0	1.3	5	60	0.42	1200	5
