The F71 Series Macerator Pump is designed with a Stainless Steel motor that makes it have low consumption and high performance.
It is the perfect choice for the waster water on RV .
The Pump with a water flow of 45 LPM / 12 GPM, delivering smooth flow at all ranges of operation. With a self-priming function to prevent liquid from back flow.
Voltage/Hz :
12V DCFlow :
12GPM /45LPMCustomized Service :
Yes ( Color of pump; Logo; Unit box/ User manual )Warranty :
12 MonthsAbout this item:
Self-priming RV macerator pump: the RV macerator pump kit impeller with stainless steel wear plate, which reduces particle size to 1/8 inch (4 mm) maximum, and pumping the discharge to your sewer; If you like to boondock or just prefer to dump at home, treat yourself with this RV macerator pump
12V DC motor with 30s run dry protection: the macerator pump use a 12 volt DC power, fully enclosed, and comes with stainless steel shaft, can be connected to a car adapter with handheld ON or OFF switch; With 30 seconds run dry protection, this waste pump maximized the safety for every travel

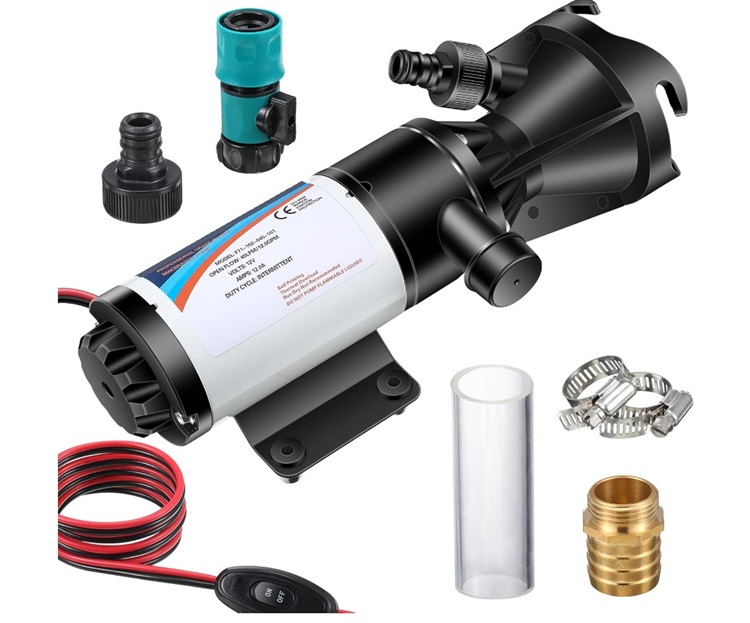

3 Inches RV connector and 1 inch hose barb: this RV sewer pump comes with garden hose discharge port and water rinse capabilities, able to dump to a longer distance or easily drain holding tanks at home, easier to clean up and no more waiting in line and paying to dump at a public location
Simple operation and functional for trailers: you won't feel troubled when clean the sewer hose if you make the switch to incorporate this pump, the waste pump empties a 40 gallon holding tank in less than 5 minutes, but you should notice that it can't handle hard objects, sanitary napkins or rags
Widely applied in RV macerator tanks and valves: the macerator pump allows you to attach and remove the component easily, compatible with most pre-existing RV macerator holding tanks and release valves, and make your pump system work well; If you have any other questions, don't hesitate to contact us, we are always glad to help you
Products Feature:
Wastewater outlet:With a water flow of 45 LPM / 12 GPM, which can quickly deliver flow at many ranges of operation, strongly save your time

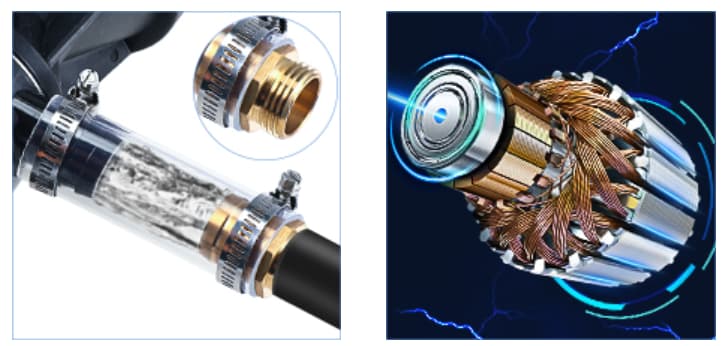

Pure Copper Motor: High-performance motor rotor, high-precision bearings, always maintain strong power, high efficiency, strong power, and low power consumption

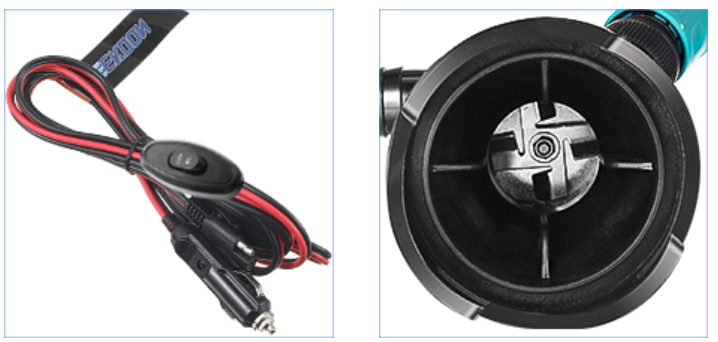

ON/OFF Switch: Hand-held switch, the total length of the whole car charger cord is (7.5 feet)
4 Stainless Steel Blades:The Blade is made of 304 stainless, which is strongly sharp and can easily cut to small pieces and remove dirt, and can be poured into closes tool directly, also reducing the probability of drainage clogging
Technical Data:
|
Model |
Volt |
GPM |
LPM |
(PSI/BAR) |
N.W/G.W (KG) |
|
F71- 102-045 |
12V/24V |
12.0 |
45.0 L/Min |
15/1.0 |
2.6/2.8 |

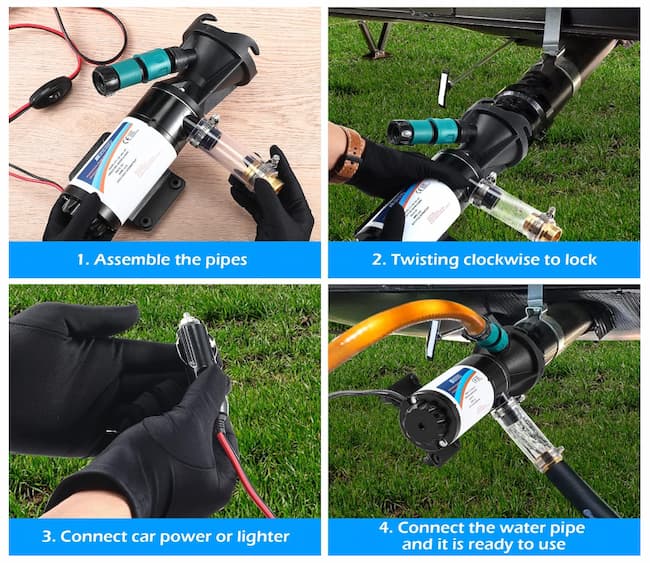

How to install the pump:
Usage:
Packing Information:
| Unit N.W/ G.W | 2.6/ 2.8 KG |
| Unit Box Size | 33.5 x 14.72 x 10.7 cm |
| Master Carton Size | 46*33.5*24 cm |
| Qty/Carton | 6 Pcs |
| Master Carton G.W | 17.86KG |
