Diaphragm Water Pump

0442 80W 12V 13LPM 3Bar High Flow Food Grade Drinking Water Wine Diaphragm Pump

0442 80W 12V 13LPM 3Bar High Flow Drinking Water Wine Food Grade Diaphragm Pump

The 80w 0442 series dc diaphragm pump is biggest flow 13LPM food grade pump in our products list;

with safety material on pump's head; chamber, diaphragm.

Without automatic pressure switch design, the pump with constant flow rate; easy maintenance and install.

It can be widely using for red wine, drinking milk, tea, cooking oil, etc.

Voltage/Hz :
12V
Flow :
13 LPM
Customized Service :
Yes ( Color of pump; Logo; Unit box/ User manual )
MOQ Order :
10PCS
Warranty :
12 Months

Inquiry now

Product Details

About this item:

Automotive Industry, Developing World Water Solutions, Family Homes, HVAC OEM, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Machining, Mining industry, temperature control, Washing and Cleaning, Water Distribution, Water Treatment Solutions

Products Features:

Made of food hygiene grade ABS, safe, healthy and non-toxic.

Low noise, easy installation, stable performance.

Pump with self-priming function, very convenient to use.

Rubber bracket can absorb vibration from the pump when working.

Used in pumping red wine, drinking milk, tea, cooking oil, etc.

Model: MST-0442YD

Output: 80W

Flow: 13 LPM

Weight: 1200g

Volt: 12V or 24V

Products size: 20.9*9.7*7.26cm

Color: Transparent

Max Liquid Temp: 70 degree

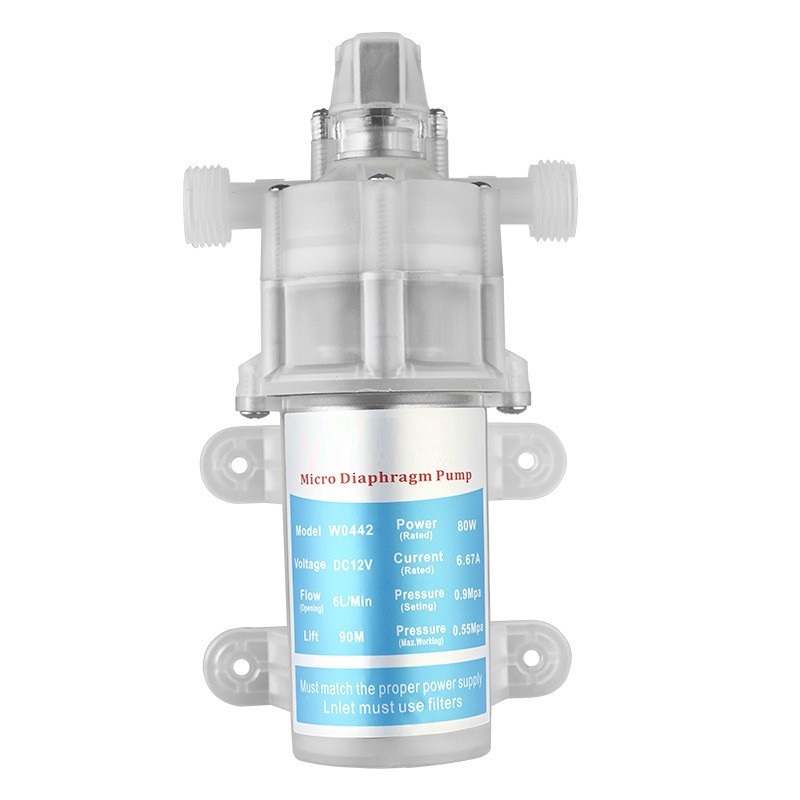

0442 80w food grade diaphragm pump

Technical Data:

Model	Volt	Output	Amps	Flow (L/M)	Suction (M)	Max. Presure (BAR)	Working Presure (BAR)	Head of Delivery (M)	LWH (MM)	(KG)
MST-0342YA	12V	15W	1.25A/12V	2	2	5	3	40	17496.661	0.6
MST-0142YB	12V/24V	70W	5.83A/12V; 2.29A/24V	6	1.5	5	3	30	174.297.462	0.6
MST-0442YD	12V	80W	6.67A/12V	13	1.5	3	1	40	200.99772.6	1.2
MST-0442YD(No Pressure switch)	12V	40W	3.33A/12V	12	1.5	NO	NO	NO	170.596.664.6	0.7

ATTENTION:

*Do not use water or dirty water (silt in dirty water will cause irreversible damage to the pump).

*Non-submersible pumps are not waterproof. Do not spray water directly at the pump. It is strictly forbidden to soak the pump in water.

*Dry the pump body after use.

*Non-submersible pumps are not waterproof and cannot be used in a damp place for a long time.

*Do not disassemble the water pump or adjust the pump pressure setting screw by yourself (adjusting the pressure setting screw without authorization may be fatal to the pump).

*It is strictly forbidden to use this machine without the filter, and the density of the filter should be above 80 mesh (impurities will cause damage to the pump).

The diameter of the spray hole must meet the specified value, otherwise, the water pump will be damaged.

Please confirm the power supply before use, the power supply parameters must be consistent with the pump input parameters
