Diaphragm Water Pump

DP-70 DC 24V 19LPM High Pressure Electric Self Priming Diaphragm Pump For Water Treatment

Our DP series high pressure diaphragm pump is design by simple working condition, we use the high quality motor; with EPDM or FKM/VTION material membrane in the pump head, could be working work different liquid.

Voltage/Hz :
12V; 24V DC
Flow :
16LPM / 24V
Customized Service :
Yes ( Color of pump; Logo; Unit box/ User manual )
MOQ Order :
10PCS
Warranty :
12 Months

Inquiry now

Product Details

About this item:

Light weight and Portable: Easy to store and haul, this mini utility pump offers big value in a little package

Multipurpose: Perfect for transferring water from aquariums, washing machines, water beds, water heaters, clogged sinks, and more. Can be used home, garden, caravan, camper, marine.

Low power consumption: with 100% cooper wire motor and good bearing, the pump working stability and low noise

Products Features:

1.Easily fitted and removed;

2.Excellent self-suction capability;

3.Pump controlled automatically by built-in pressure switch;

4.Permissible liquid temperature up to 60C

5.Dry operation is permissible,self-suction height is 5m;

6.Low Noise, Excellent corrosion resistance, High pressure.

Material list of pump:

Pump Shell- FRPP or Nylon

Inhaled diaphragm- EPDM (Or could be customized by FKM, VITON)

O-ring- EPDM ( Or could be customized by FKM, VITON)

Diversion plate- FRPP

Piston button -FRPP

Button screws- 304 stainless steel

Diaphragm- - TPV

Inlet/outlet ： DN15 external thread

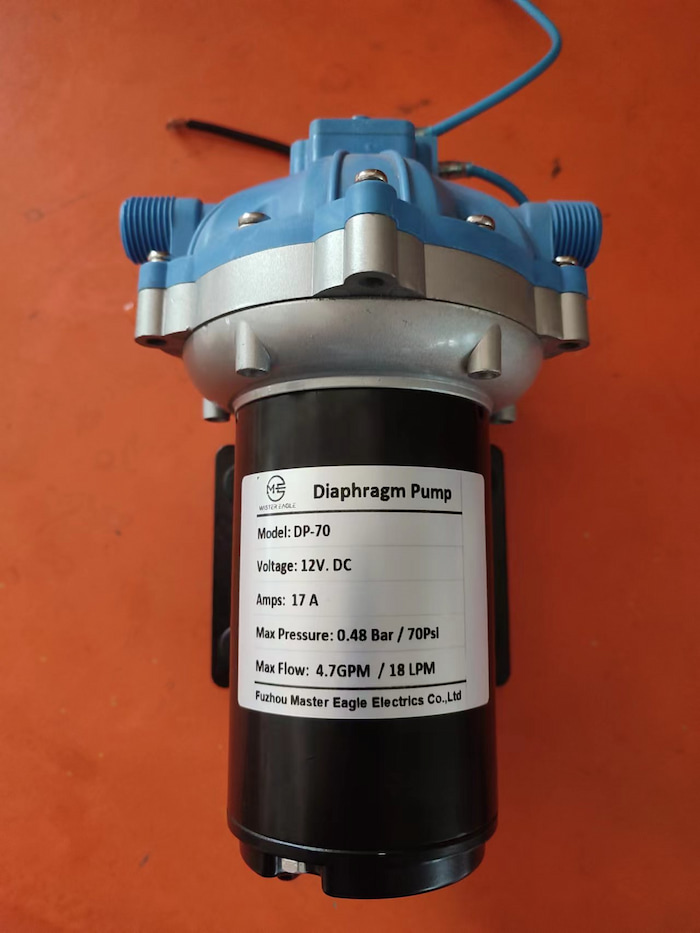

DP-70 dc water pump

Technical Data:

Model	Voltage(V)	Current(A)	Max Flow(GPM)	Max Flow(LPM)	Max. Pressure(PSI)	Max. Pressure(MPA)	Speed(RPM)	Suction(M)
DP-70	12	13.0	4.3	19	70	0.48	1800	5
DP-70	24	6.5	4.3	19	70	0.48	1800	5
